POWER EDITOR VEHICLE SPECIFIC KIT
IS200t
Explanation of the product Application chart
IS200t ASE30

Code No. 42018-AT012

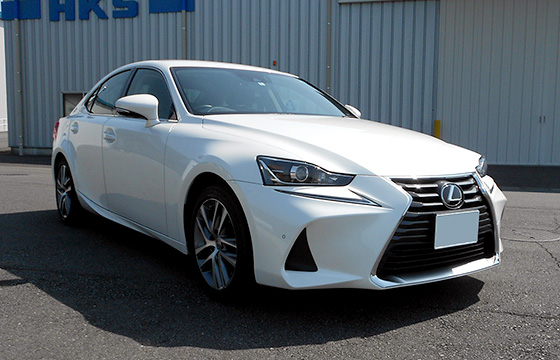

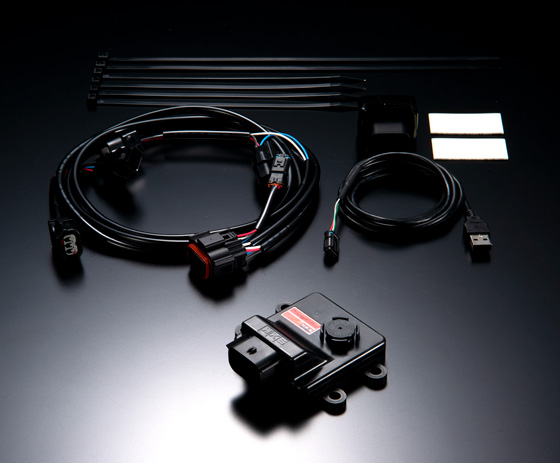

Power Editor for LEXUS IS200t [ASE30]








Power Editor is the next generation boost controller that enables the boost pressure increase of the vehicles equipped with the electriconic actuators.



■Concept and Features

  • Easy plug&play installation to increase boost pressure.
  • Power Editor comes preset with initial data.

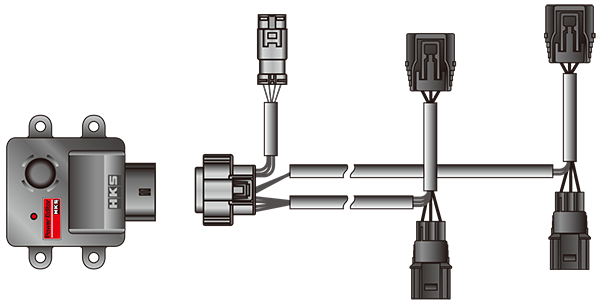

  • Includes by-pass connector to easy revert your vehicle to stock.
  • Easy Writer for Power Editor to edit the data and fine tune boost pressure.





■Easy Writer

  • Easy Writer software is NOT included with the product.
  • Download Easy Writer from HKS website.
  • Please use provided USB cable to connect Power Editor with PC. (PC with Windows10, 8.1, 8, or 7 is require)

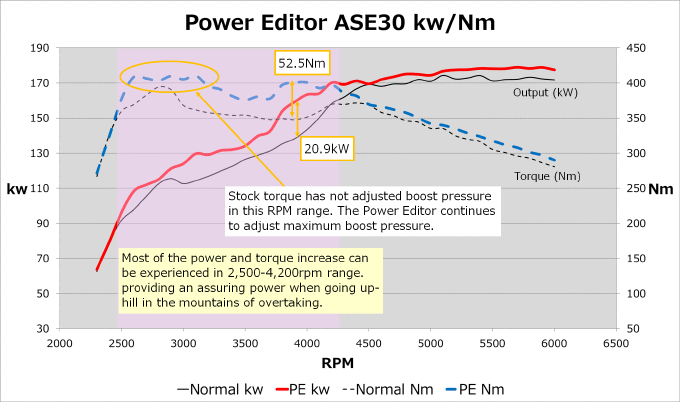

  Stock Power Editor
Power increase － 20.9kW(28.4PS) / 3900rpm
Torque increase － 52.5Nm(5.3kgf・m) / 3900rpm
Power 174.4kW(237.1PS) / 5100rpm 178.9kW(243.3PS) / 5700rpm
Torque 394.3Nm(40.2kgf・m) / 2800rpm 410.3Nm(41.8kgf・m) / 3100rpm
Boost 123kPa(1.25kgf/cm2) 137kPa(1.4kgf/cm2)

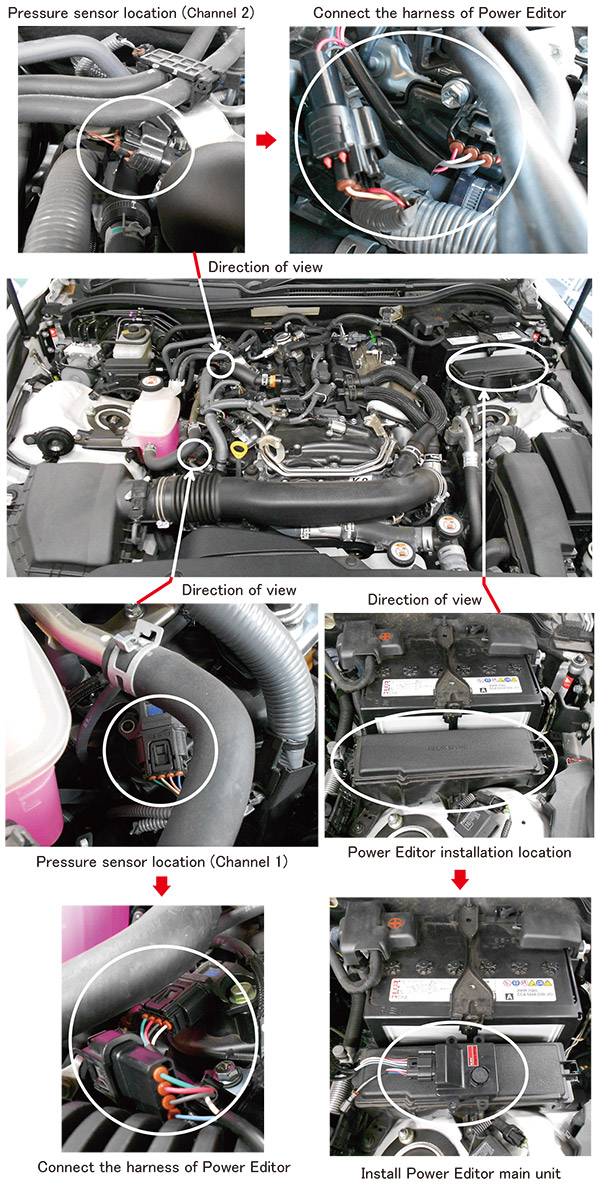

■Recommended Power Editor installation location and Pressure sensor location



■CAUTION

  • Comes preset for Japanese Domestic Market.
  • For ECU with stock data only, reflashed ECU are not supported.





Vehicle Classification Model Engine Model Year Code No. Manual Remarks
IS200t DBA- ASE30 8AR-FTS 15/07 -17/10 42018-AT012 * To be discontinued.
