POWER EDITOR VEHICLE SPECIFIC KIT
A4
A4 8WCYRF
Code No. 42018-LE001
*Discontinued.
■Outline
- Easy coupler-on installation to increase the boost pressure.
- Boost pressure increase data is preset to Power Editor.

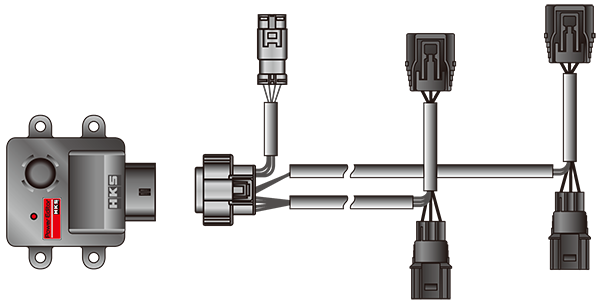

- A bypass connector is included. It allows to bypass the unit even after connecting this kit.
- Easy Writer for Power Editor can edit the preset data.
* Easy Writer is NOT included in the product.
* Use provided USB cable to connect to computer.
■Main Functions
- Boost pressure increase for turbo vehicle: Increasing the boost pressure of a stock vehicle.
- Status indicating LED: Checking the unit status by LED.
- Edit the boost increase data: Editing the preset data to the user's original data to increase the boost pressure.
* PC with Windows is required.
Easy Writer for Power Editor
■Note
- This product is applicable to a stock vehicles and vehicles equipped with HKS products.
- This product is for a stock ECU data and not available to use with a customized data prepared by a ReFlash tool.
■Preset Data
● EA888 Gen.3 Engine (JDM Spec)

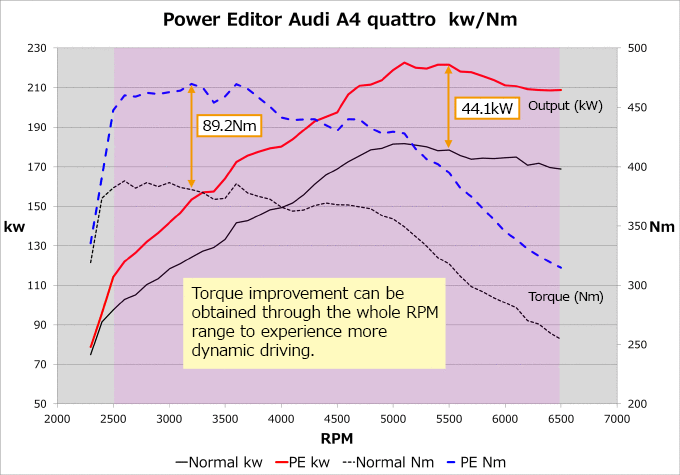

■Performance
| Stock | Power Editor | |
| Power Increase | - | 44.1kW (59.9PS) / 5700rpm |
| Torque Increase | - | 89.2Nm (9.1kgf・m) / 3200rpm |
| Power | 181.7kW (247PS) / 5100rpm | 222.6kW (303PS) / 5100rpm |
| Torque | 388.0Nm (39.6kgf・m) / 2600rpm | 469.8Nm (47.9kgf・m) / 3200rpm |
| Boost | - | - |
