POWER EDITOR VEHICLE SPECIFIC KIT
HARRIER
HARRIER ASU60W

Code No. 42018-AT005










Power Editor is the next generation boost controller that enables the boost pressure increase of the vehicles equipped with the electriconic actuators.



Concept and Features:

Easy plug&play installation to increase boost pressure.
Power Editor comes preset with initial data.
Includes by-pass connector to easy revert your vehicle to stock.
Easy Writer for Power Editor to edit the data and fine tune boost pressure.





Easy Writer:

Easy Writer software is NOT included with the product.
Download Easy Writer from HKS website.
Please use provided USB cable to connect Power Editor with PC. (PC with Windows is require)





Preset Data:

● TOYOTA HARRIER [ASU60W] (JDM Spec)



Performance:

  Stock Power Editor
Power Increase 8.1kW (11.0PS) / 4600rpm
Torque Increase 22.6Nm (2.3kgf・m) / 3300rpm
Power 170.2kW (231.4PS) / 5300rpm 173.4kW (235.7PS) / 5300rpm
Torque 349.6Nm (35.7kgf・m) / 4000rpm 358.0Nm (36.5kgf・m) / 4000rpm
Boost 106.0kPa (1.08kgf/cm2) 114.0kPa (1.16kgf/cm2)

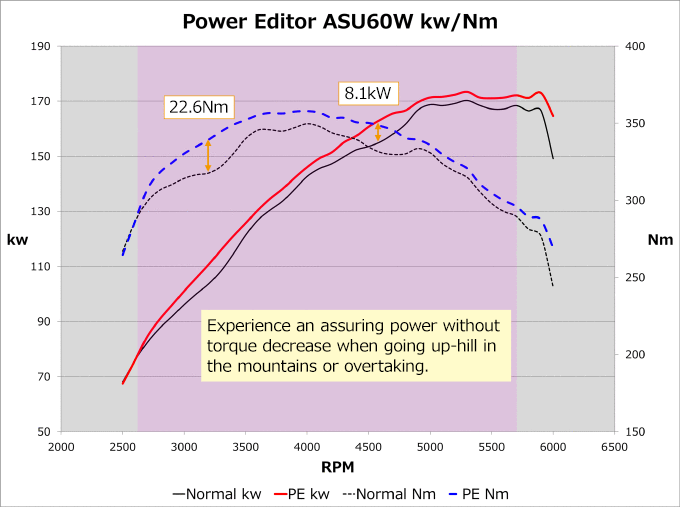

■グラフ



Recommended Power Editor installation location and Pressure sensor location:



Note:

  • This product is designed to be installed to a stock vehicle or vehicle that HKS products are installed.
  • This product is for a stock ECU data and not available to use with a customized data prepared by a ReFlash tool.





Vehicle Classification Model Engine Model Year Code No. Manual Remarks
HARRIER DBA- ASU60W 8AR-FTS 17/06 -20/05 42018-AT005 * To be discontinued.
