POWER EDITOR VEHICLE SPECIFIC KIT RAIZE Explanation of the product Application chart
RAIZE A210A

Code No. 42018-AT013

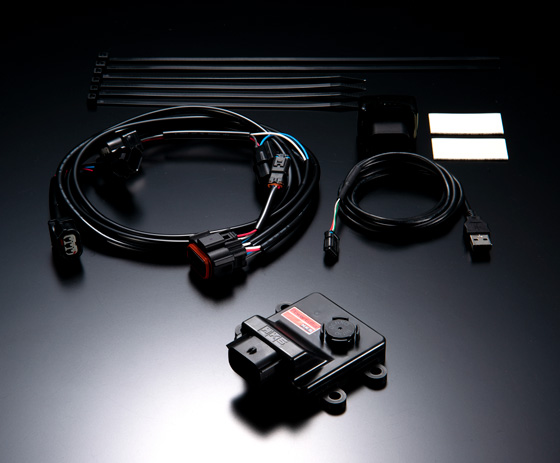

POWER EDITOR TOYOTA RAIZE A210A 1KR-VET











Power Editor is the next generation boost controller that enables the boost pressure increase of the vehicles equipped with the electriconic actuators.





[Outline]
  • Easy plug&play installation to increase boost pressure.
  • Power Editor comes preset with initial data.
  • Includes by-pass connector to easy revert your vehicle to stock.
  • Easy Writer for Power Editor to edit the data and fine tune boost pressure.

Note: Easy Writer is NOT included in the product. Use provided USB cable to connect to computer.









[Features]
  • Boost pressure increase for turbo vehicle: Increasing the boost pressure of a stock vehicle.
  • Status indicating LED: Checking the unit status by LED.
  • Edit the boost increase data: Editing the preset data to the user's original data to increase the boost pressure.





[Main Functions]

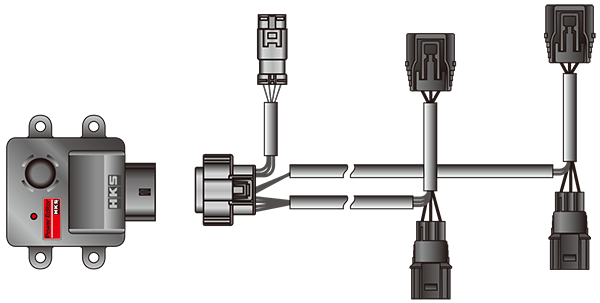

  • Install this Power Editor between "pressure sensor" and "pressure sensor harness" can increase the boost pressure.
  • Easy Writer for Power Editor is available to edit the preset data.
    To edit by Easy Writer, connect Power Editor and PC using the provided USB harness.
  • Using a provided bypass connector instead of the Power Editor to reset the initial data. This can be used to easily check the difference.

Note:

  • This product is applicable to a stock vehicles and vehicles equipped with HKS products.
  • This product is for a stock ECU data and not available to use with a customized data prepared by a ReFlash tool.

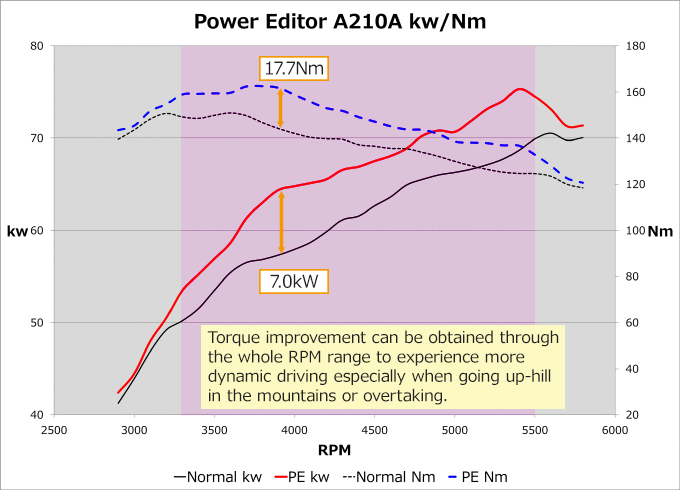

Easy Writer for Power Editor





  Stock Power Editor
Power increase 7.0kW(9.6PS)/3900rpm
Torque increase 17.7Nm(1.8kgf・m) / 3900rpm
Power 70.5kW(95.9PS) / 5600rpm 75.3kW(102.4PS) / 5400rpm
Torque 150.9Nm(15.4kgf・m) / 3600rpm 162.5Nm(16.6kgf・m) / 3800rpm
Boost 87.3kPa (0.89kgf/cm2) 95.1kPa (0.97kgf/cm2)









[Recommended Power Editor installation location and Pressure sensor location]



Vehicle Classification Model Engine Model Year Code No. Price Remarks
RAIZE   A210A 1KR-VET 19/11- 42018-AT013 FF vehicles not confirmed
