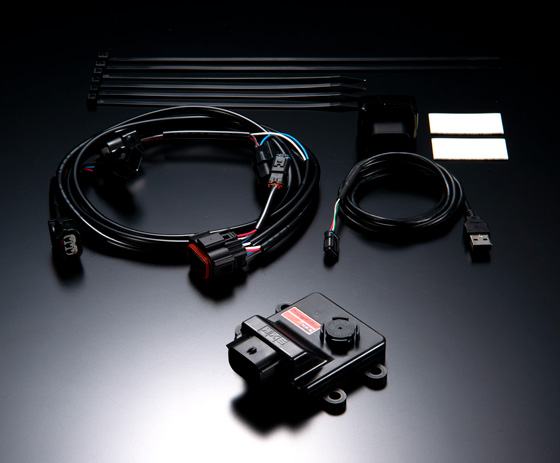

POWER EDITOR VEHICLE SPECIFIC KIT JADE Explanation of the product Application chart
JADE FR5

Code No. 42018-AH007














■Outline
  • Easy coupler-on installation to increase the boost pressure.
  • Boost pressure increase data is preset to Power Editor.

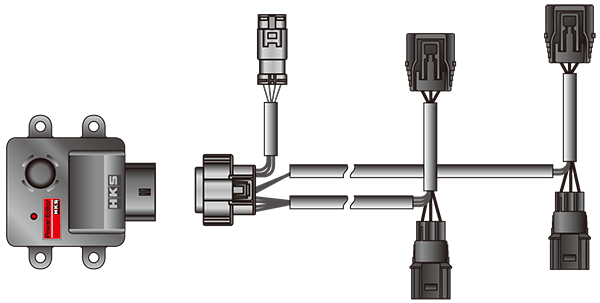

  • A bypass connector is included. It allows to bypass the unit even after connecting this kit.
  • Easy Writer for Power Editor can edit the preset data.

Note:
Easy Writer is NOT included in the product.
Use provided USB cable to connect to computer.









■Main Functions
  • Boost pressure increase for turbo vehicle: Increasing the boost pressure of a stock vehicle.
  • Status indicating LED: Checking the unit status by LED.
  • Edit the boost increase data: Editing the preset data to the user's original data to increase the boost pressure.
    Note: PC with Windows 10, 8.1, 8, or 7 is required.





■Features
  • Install this Power Editor between "pressure sensor" and "pressure sensor harness" can increase the boost pressure.
  • Easy Writer for Power Editor is available to edit the preset data. To edit by Easy Writer, connect Power Editor and PC using the provided USB harness.
  • Using a provided bypass connector instead of the Power Editor to reset the initial data. This can be used to easily check the difference.

Note:

  • This product is applicable to a stock vehicles and vehicles equipped with HKS products.
  • This product is for a stock ECU data and not available to use with a customized data prepared by a ReFlash tool.




Easy Writer for Power Editor





■Preset Data

● HONDA JADE [FR5] JDM SPEC

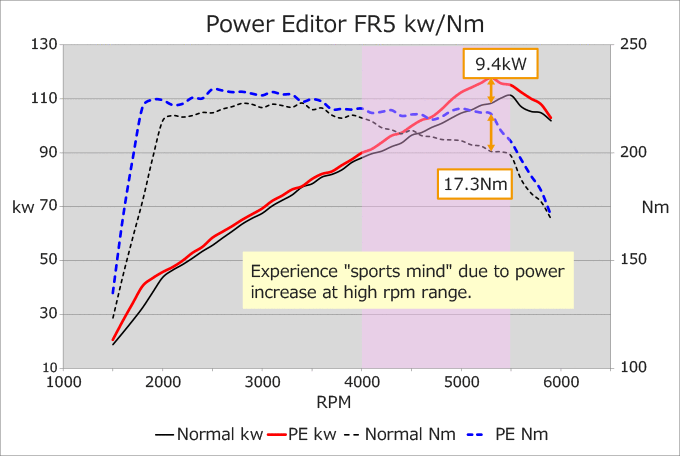

■Performance
  Stock Power Editor
Power Increase 9.4kW(12.8PS) / 5300rpm
Torque Increase 17.3Nm(1.8kgf・m) / 5300rpm
Power 111.3kW(151.3PS) / 5500rpm 117.8kW(160.1PS) / 5300rpm
Torque 223.0Nm(22.7kgf・m) / 3400rpm 229.4Nm(23.4kgf・m) / 2500rpm
Boost 98.1kPa (1.00kgf/cm2) 109.8kPa (1.12kgf/cm2)

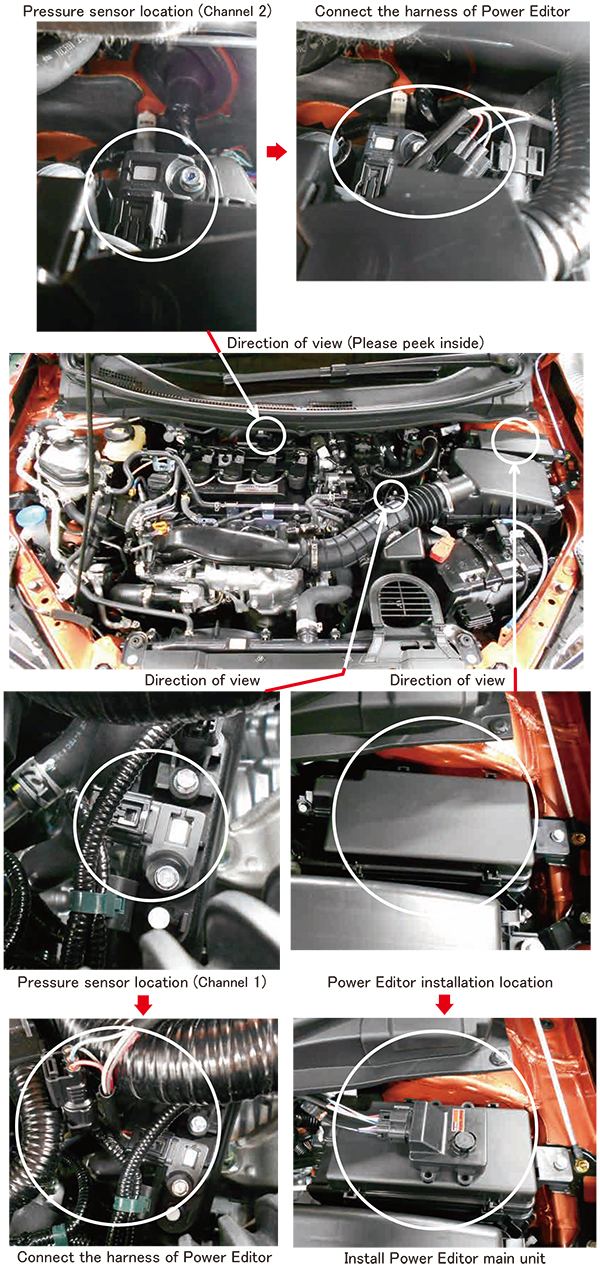

■Recommended Power Editor installation location and Pressure sensor location



Vehicle Classification Model Engine Model Year Code No. Price Remarks
JADE   FR5 L15B 18/05- 42018-AH007 Model before 2018 not confirmed.
