POWER EDITOR VEHICLE SPECIFIC KIT COPEN GR SPORT Explanation of the product Application chart
COPEN GR SPORT LA400A

Code No. 42018-AT014

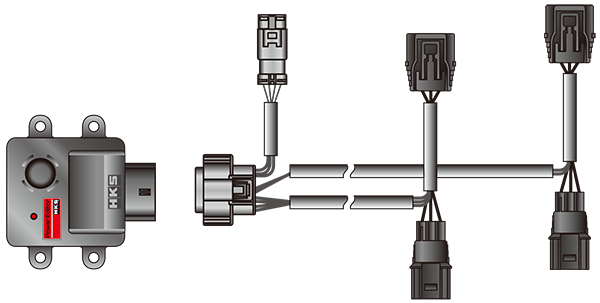

POWER EDITOR TOYOTA COPEN GRSPORT LA400A











Power Editor is the boost controller that enables the boost pressure increase of the vehicles equipped with electric actuators.





[Outline]
  • Easy plug and play installation to increase the boost pressure.
  • Boost pressure increase data is preset to Power Editor.

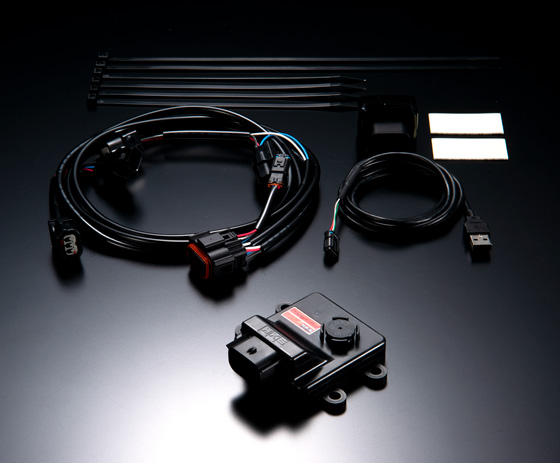

  • A bypass connector is included. It allows to bypass the unit even after connecting this kit.
  • Easy Writer for Power Editor can edit the preset data.

Note: Easy Writer is NOT included in the product. Use provided USB cable to connect to computer.









[Nain Features]
  • Boost pressure increase for turbo vehicle:Increasing the boost pressure of a stock vehicle.
  • Status indicating LED:Checking the unit status by LED.
  • Edit the boost increase data:Editing the preset data to the user's original data to increase the boost pressure.
    Note: PC with Windows 10, 8.1, 8, or 7 is required.





[Functions]
  • Install this Power Editor between "pressure sensor" and "pressure sensor harness" can increase the boost pressure.
  • Easy Writer for Power Editor is available to edit the preset data.
    To edit by Easy Writer, connect Power Editor and PC using the provided USB harness.
  • Using a provided bypass connector instead of the Power Editor to reset the initial data. This can be used to easily check the difference.

Note:

  • This product is applicable to a stock vehicles and vehicles equipped with HKS products.
  • This product is for a stock ECU data and not available to use with a customized data prepared by a ReFlash tool.






Easy Writer for Power Editor





■Preset Data

●TOYOTA COPEN GR SPORT [LA400A] JDM SPEC

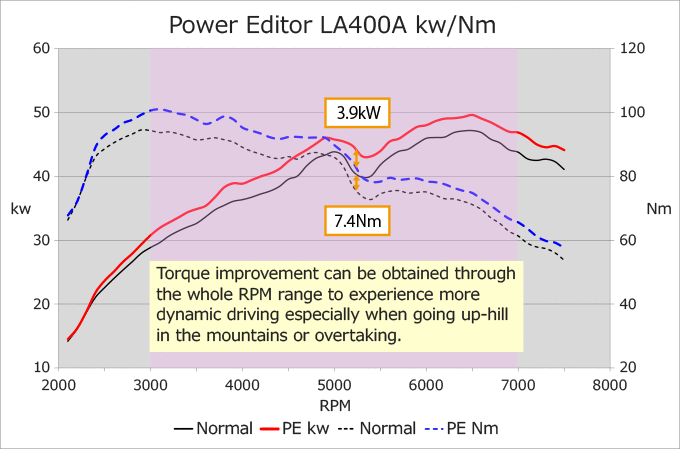

■Performance
  Stock Power Editor
Power Increase - 3.9kW(5.3PS) / 5200rpm
Torque Increase - 7.4Nm(0.8kgf・m) / 5200rpm
Power 47.2kW(64.1PS) / 6500rpm 49.6kW(67.4PS) / 6500rpm
Torque 94.5Nm(9.6kgf・m) / 2900rpm 101.0Nm(10.3kgf・m) / 3100rpm
Boost 92.2kPa (0.94kgf/cm2) 98.1kPa (1.00kgf/cm2)

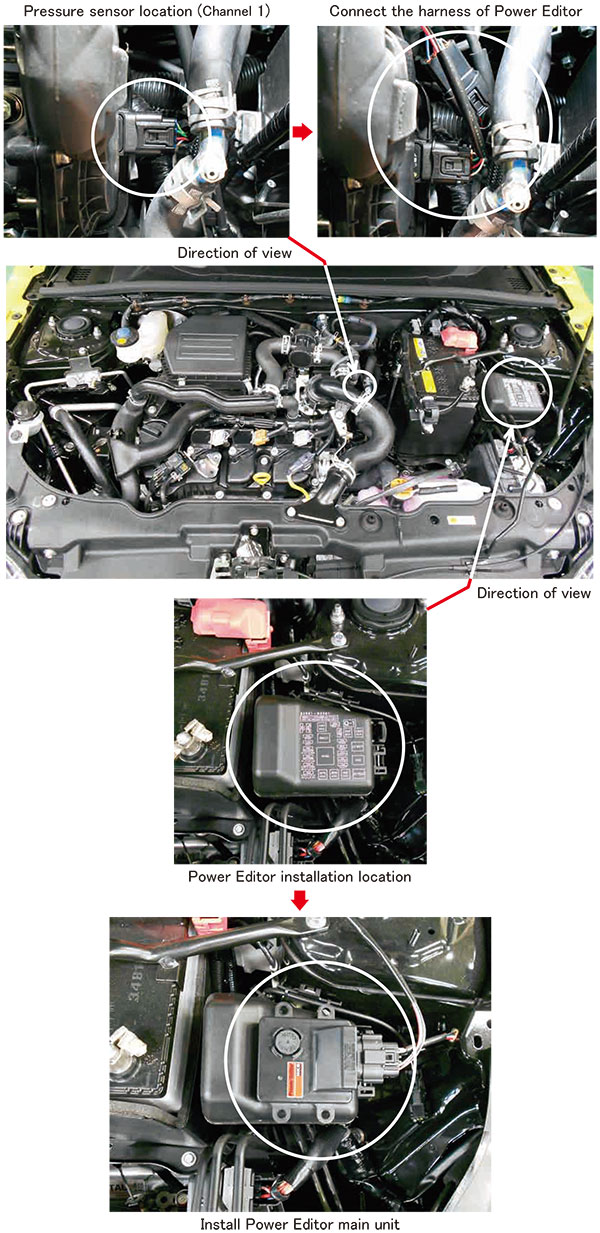

[Recommended Power Editor installation location and Pressure sensor location]



Vehicle Classification Model Engine Model Year Code No. Price Remarks
COPEN GR SPORT   LA400A KF-VET 19/10- 42018-AT014 For 5MT model. This vehicle is basically selling for the Japanese domestic market only (as Kei car).
