POWER EDITOR VEHICLE SPECIFIC KIT
GR SUPRA
Explanation of the product Application chart
GR SUPRA DB42

Code No. 42018-AT016





Power Editor is the boost controller that enables the boost pressure increase of the vehicles equipped with electric actuators.








■Outline

  • Easy plug and play installation to increase the boost pressure.
  • Boost pressure increase data is preset to Power Editor.
  • A bypass connector is included. It allows to bypass the unit even after connecting this kit.
  • Easy Writer for Power Editor can edit the preset data.
    Note: Easy Writer is NOT included in the product. Use provided USB cable to connect to computer.



■Main Functions

  • Boost pressure increase for turbo vehicle: Increasing the boost pressure of a stock vehicle.
  • Status indicating LED: Checking the unit status by LED.
  • Edit the boost increase data: Editing the preset data to the user's original data to increase the boost pressure.
    Note: PC with Windows 10, 8.1, 8, or 7 is required.



■Features

  • Install this Power Editor between "pressure sensor" and "pressure sensor harness" can increase the boost pressure.
  • Easy Writer for Power Editor is available to edit the preset data. To edit by Easy Writer, connect Power Editor and PC using the provided USB harness.
  • Using a provided bypass connector instead of the Power Editor to reset the initial data. This can be used to easily check the difference.




Easy Writer for Power Editor



■Note

  • This product is applicable to a stock vehicles and vehicles equipped with HKS products.
  • This product is for a stock ECU data and not available to use with a customized data prepared by a ReFlash tool.



■Preset data

● TOYOTA SUPRA RZ [DB42]　JDM SPEC

● Installed parts when the data measured   Super Turbo Muffler / Dry Carbon Racing Suction

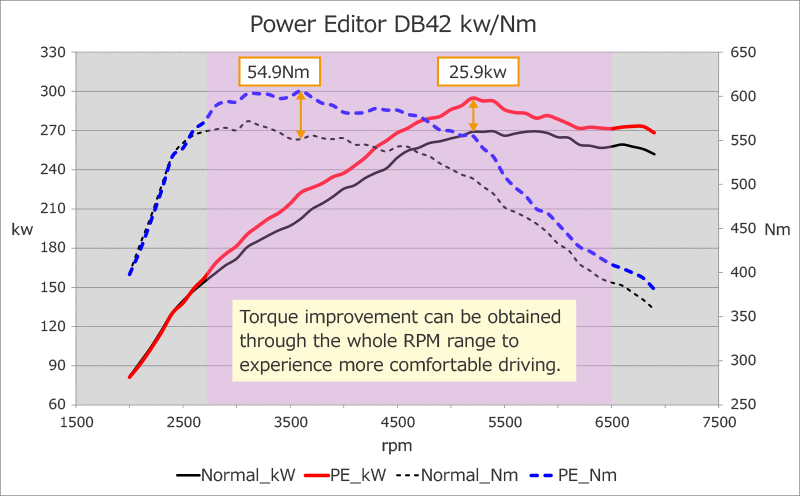

■Performance

  Stock Power Editor
Power Increase － 25.9kW(35.2PS) / 5200rpm
Torque Increase － 54.9Nm(5.6kgf・m) / 3600rpm
Power 269.3kW(366.2PS) / 5800rpm 294.8kW(400.8PS) / 5200rpm
Torque 571.5Nm(58.3kgf・m) / 3100rpm 606.1Nm(61.8kgf・m) / 3600rpm
Boost 87.3kPa (0.89kgf/cm2) 107.9kPa (1.1kgf/cm2) (予測値)




※当社車両を当社シャシダイナモにて計測した数値の為、気象条件や車両個体差、計測機器などで異なります。

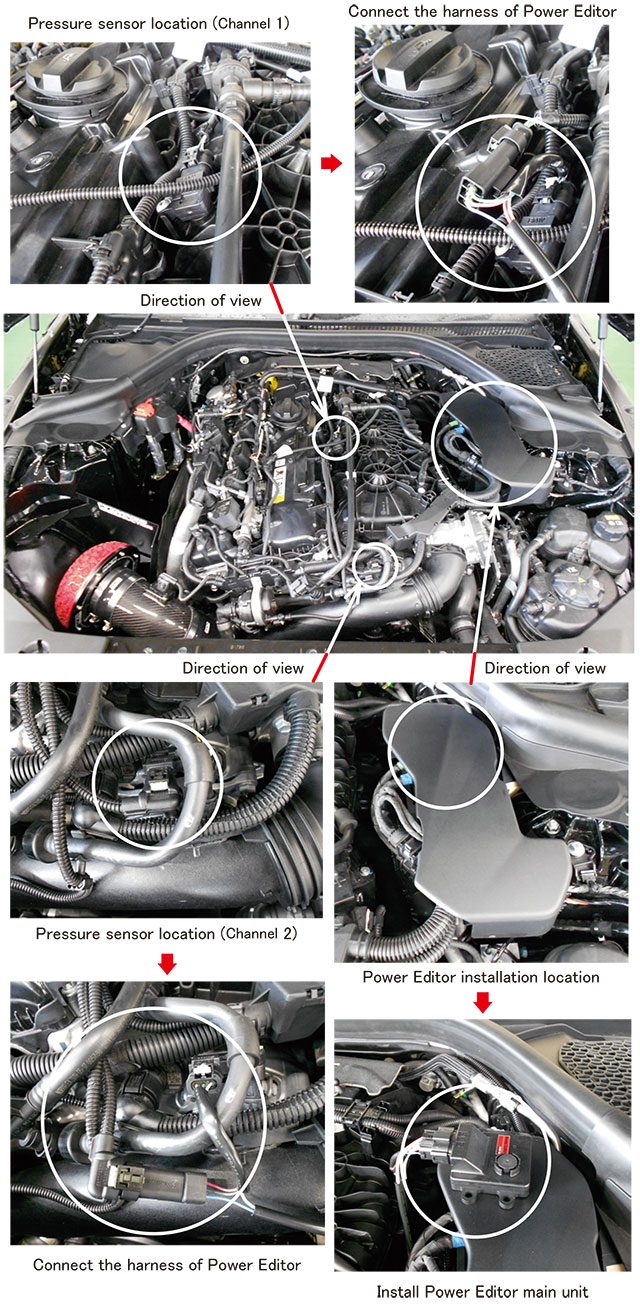

■Recommended Power Editor installation location and Pressure sensor location



Vehicle Classification Model Engine Model Year Code No. Manual Remarks
GR SUPRA 3BA- DB42 B58 19/05 - 42018-AT016 Make to order item
For RZ.
