POWER EDITOR VEHICLE SPECIFIC KIT GR SUPRA Explanation of the product Application chart
GR SUPRA DB82

Code No. 42018-AT017

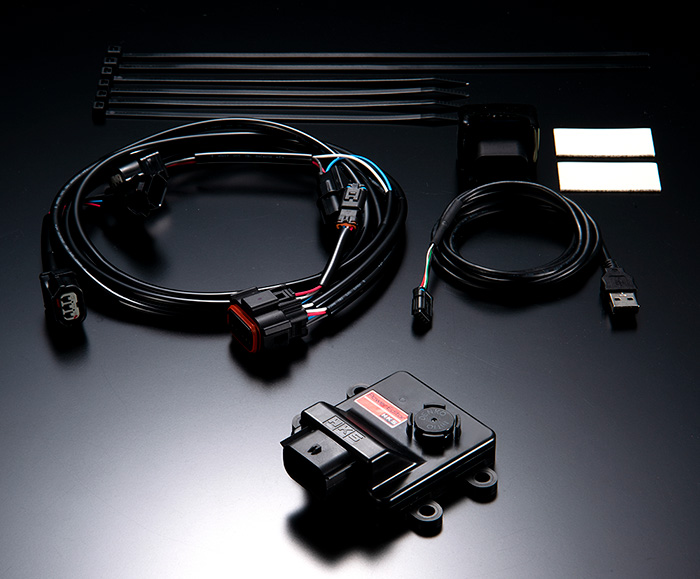

Power Editor is the boost controller that enables the boost pressure increase of the vehicles equipped with electric actuators.











■Outline
  • Easy plug and play installation to increase the boost pressure.
  • Boost pressure increase data is preset to Power Editor.
  • A bypass connector is included. It allows to bypass the unit even after connecting this kit.
  • Easy Writer for Power Editor can edit the preset data.
    Note: Easy Writer is NOT included in the product.
    Use provided USB cable to connect to computer.







■Main Functions
  • Boost pressure increase for turbo vehicle: Increasing the boost pressure of a stock vehicle.
  • Status indicating LED: Checking the unit status by LED.
  • Edit the boost increase data: Editing the preset data to the user's original data to increase the boost pressure.
    Note: PC with Windows 10, 8.1, 8, or 7 is required.





■Features
  • Install this Power Editor between "pressure sensor" and "pressure sensor harness" can increase the boost pressure.
  • Easy Writer for Power Editor is available to edit the preset data. To edit by Easy Writer, connect Power Editor and PC using the provided USB harness.
  • Using a provided bypass connector instead of the Power Editor to reset the initial data. This can be used to easily check the difference.




Easy Writer for Power Editor





■Note
  • This product is applicable to a stock vehicles and vehicles equipped with HKS products.
  • This product is for a stock ECU data and not available to use with a customized data prepared by a ReFlash tool.





■Preset Data

●TOYOTA SUPRA SZ [DB82] JDM SPEC

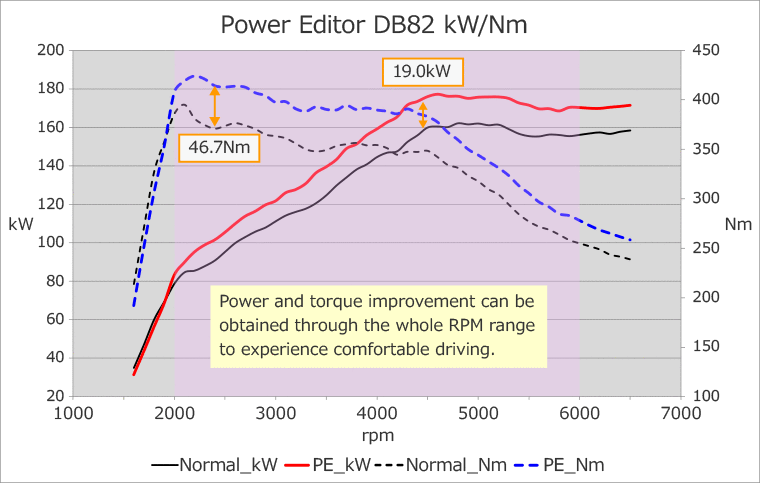

■Performance
  Stock Power Editor
Power Increase 19.0kW(25.9PS) / 4300rpm
Torque Increase 46.7Nm(4.8kgf・m) / 2300rpm
Power 162.1kW(220.4PS) / 4800rpm 177.1kW(240.8PS) / 4600rpm
Torque 394.9Nm(40.3kgf・m) / 2100rpm 424.1Nm(43.2kgf・m) / 2200rpm
Boost 87.3kPa (0.89kgf/cm2) 107.9kPa (1.1kgf/cm2)

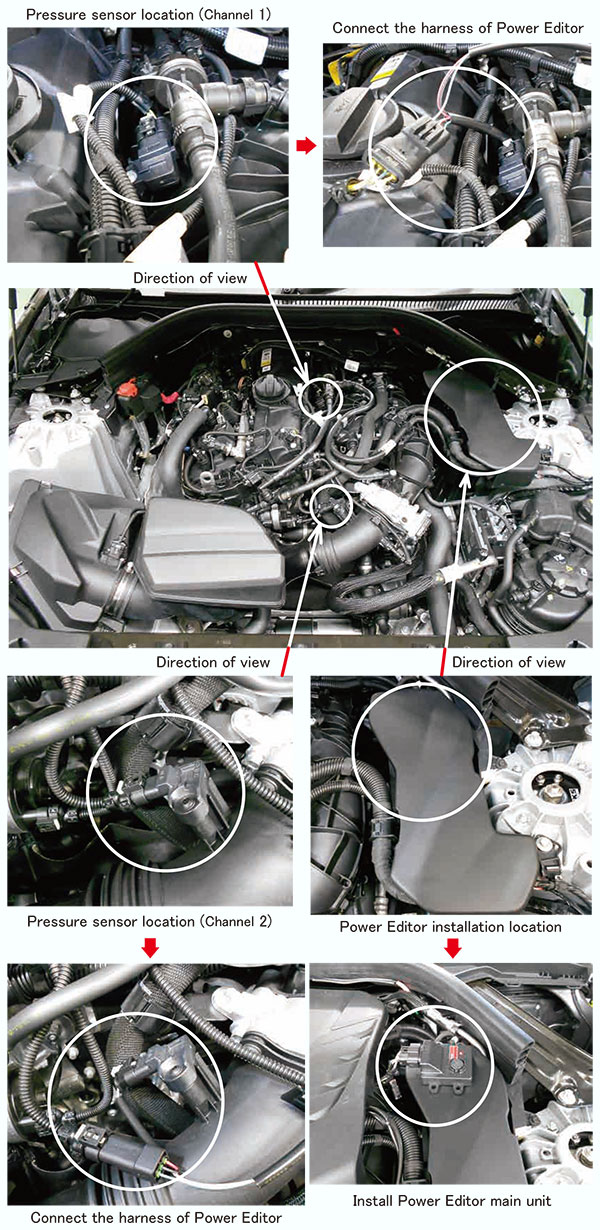

■Recommended Power Editor installation location and Pressure sensor location



Vehicle Classification Model Engine Model Year Code No. Price Remarks
GR SUPRA   DB82 B48 19/05- 42018-AT017 For SZ
