POWER EDITOR VEHICLE SPECIFIC KIT
LEVORG
LEVORG VM4

Code No. 42018-AF001





Power Editor is the boost controller that enables the boost pressure increase of the vehicles equipped with electric actuators.












■Outline

  • Easy plug and play installation to increase the boost pressure.
  • Boost pressure increase data is preset to Power Editor.
  • A bypass connector is included. It allows to bypass the unit even after connecting this kit.
  • Easy Writer for Power Editor can edit the preset data.

Note:
Easy Writer is NOT included in the product.
Use provided USB cable to connect to computer.







■Main Functions

  • Boost pressure increase for turbo vehicle: Increasing the boost pressure of a stock vehicle.
  • Status indicating LED: Checking the unit status by LED.
  • Edit the boost increase data: Editing the preset data to the user's original data to increase the boost pressure.
    Note: PC with Windows 10, 8.1, 8, or 7 is required.

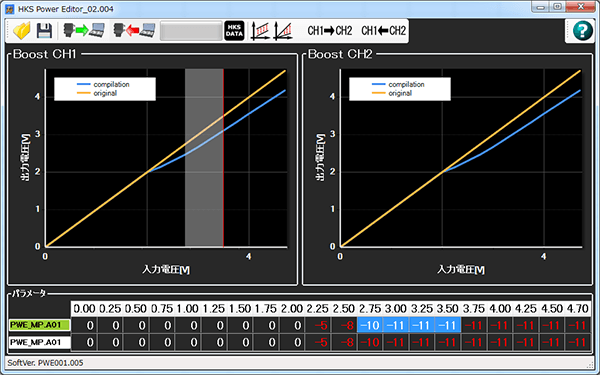

Easy Writer for Power Editor





■Features

  • Install this Power Editor between "pressure sensor" and "pressure sensor harness" can increase the boost pressure.
  • Easy Writer for Power Editor is available to edit the preset data.
    To edit by Easy Writer, connect Power Editor and PC using the provided USB harness.
  • Using a provided bypass connector instead of the Power Editor to reset the initial data. This can be used to easily check the difference.

Note:
- This product is applicable to a stock vehicles and vehicles equipped with HKS products.
- This product is for a stock ECU data and not available to use with a customized data prepared by a ReFlash tool





■Preset Data

●SUBARU LEVORG [VM4] JDM SPEC





■Performance

  Stock Power Editor
Power Increase 6.4kW(8.7PS)/3200rpm
Torque Increase 24.2Nm(2.5kgf・m)/2500rpm
Power 108.0kW(146.8PS)/5100rpm 108.5kW(147.5PS)/5100rpm
Torque 237.2Nm(24.2kgf・m)/4000rpm 244.7Nm(25.0kgf・m)/3200rpm
Boost 98.1kPa(1.00kgf/cm2) 113.8kPa(1.16kgf/cm2)

*Measured by HKS which is different from factory data.

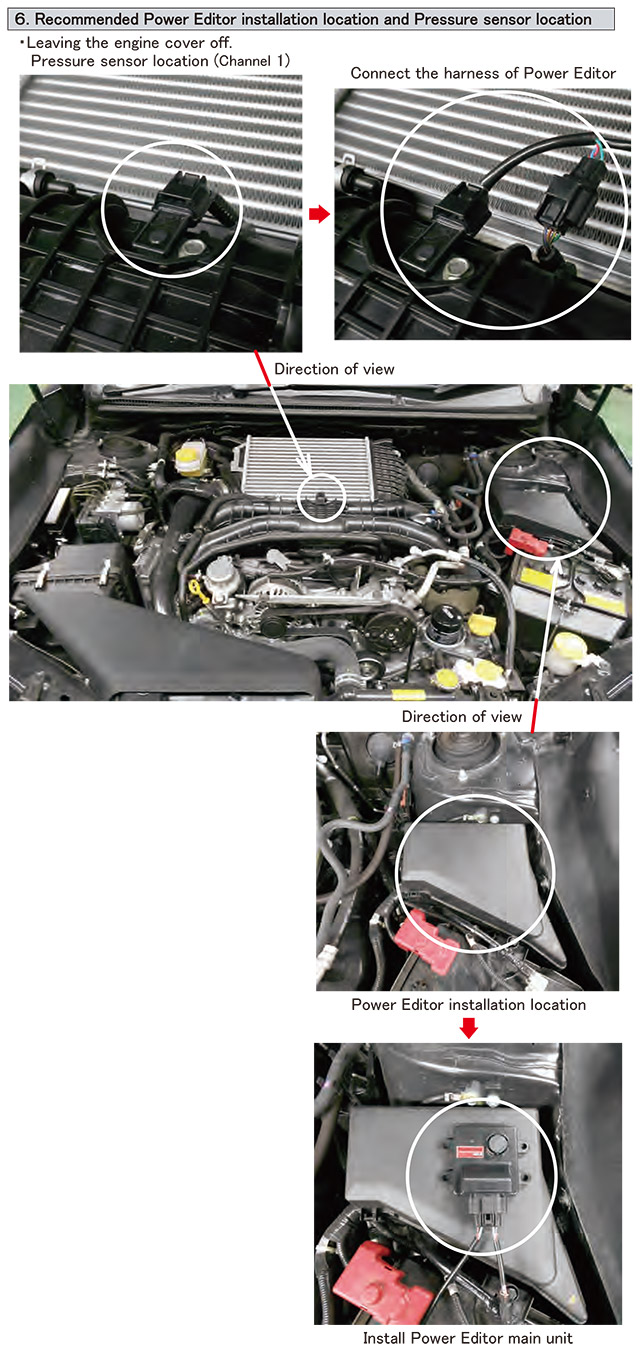

■Recommended Power Editor installation location and Pressure sensor location



Vehicle Classification Model Engine Model Year Code No. Manual Remarks
LEVORG VM4 FB16 14/06 -20/11 42018-AF001
