VIITS BOOST CONTROLLER
ABARTH 595
Explanation of the product Application chart
ABARTH 595 31214T

Code No. VIITS-EL001





The easy coupler-on boost controller synchronizes power and sound!









■Concepts

  • It can be easily boosted up by simply connecting with a coupler.
  • The boost-up data is preset in the BOOST CONTROLLER unit.
  • By using the Easy Writer, you can edit the boost-up data.
  • Even after installing this product (or wiring it), it can be returned to the stock status by using the return connector included in the kit.

NOTE:
・The Easy Writer is not packaged with the product.
・To connect to the PC, use the USB connection harness included with the product.







■Features

  • Boost up turbocharged vehicles : Install the BOOST CONTROLLER between the "pressure sensor" and "pressure sensor harness”, the boost pressure will be increased.

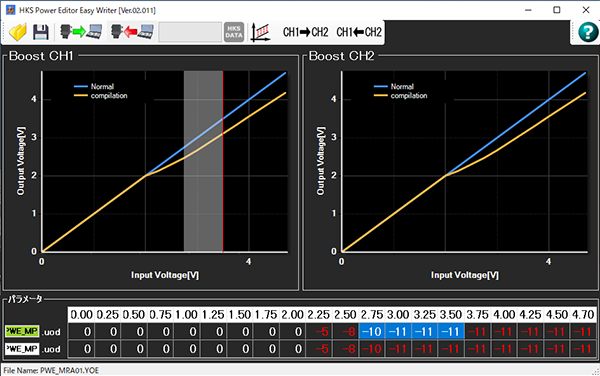

  • Rewriting boost-up data : For customers who are not satisfied with the data preset in the unit, we have prepared a special Easy Writer for editing the boost-up data. By connecting the BOOST CONTROLLER to a PC with the USB connection harness included in the product, you can easily edit the boost-up data with Easy Writer. Windows PC (Windows 10, 8.1, 8, or 7) is required.
  • Status verification LED : The LED light makes it easier to monitor the status of the unit.

NOTE:
・This product is designed for stock vehicles and vehicles equipped with HKS products.
・This product is for a stock ECU data and not available to use with a customized data prepared by a Re-Flash tool.




Specialized Easy Writer (for free)

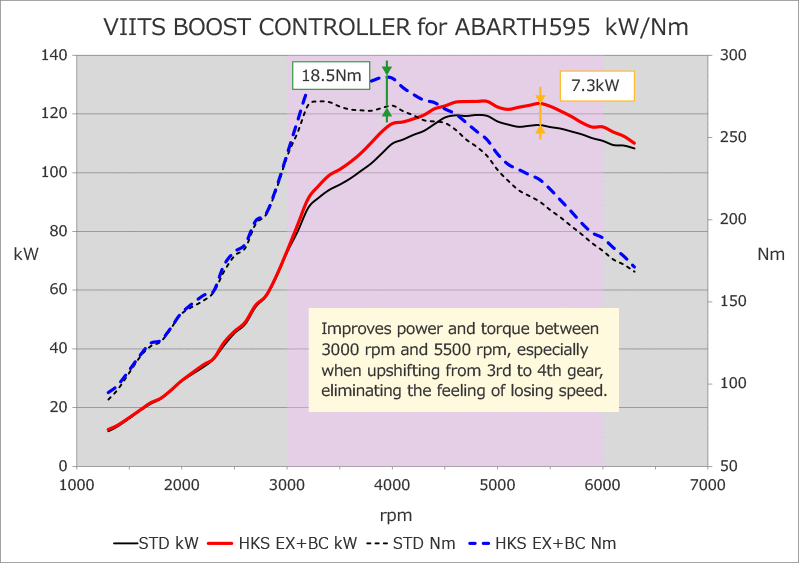

■Performance data

  • HKS Data Preset for ABARTH 595 COMPETIZIONE (Japan spec)
  • The test vehicle is equipped with VIITS EXHAUST for ABARTH595 (VIITS-EX001).
  • The maximum boost pressure is the average of multiple measurements taken in SPORT MODE.





  Stock Power Editor
Power
(maximum permissible level)		 － 7.3kW(10.0PS)/5400rpm
Torque
(maximum permissible level)		 － 18.5Nm(1.9kgf・m)/3900rpm
Peak power 119.6kW(162.7PS)/4800rpm 124.3kW(168.9PS)/4900rpm
Peak torque 271.9Nm(27.7kgf・m)/3300rpm 286.4Nm(29.2kgf・m)/3900rpm
Peak boost pressure 135.3kPa(1.38kgf/cm2) 145.1kPa(1.48kgf/cm2)









■Recommended BOOST CONTROLLER installation location and Pressure sensor location





Vehicle Model Engine Model Year Code No. Manual Remarks
ABARTH 595 31214T 312A3 17/02 - VIITS-EL001 Make to order item
For ABARTH 595 COMPETIZIONE (Japan Domestic Market spec).
