Flash Editor + Power Editor
CIVIC
Explanation of the product Application chart
CIVIC FL1

Code No. 42020-AH005





Boost-up and Speed Limiter Removal (SLD) can be achieved by simply turning on the coupler without any wiring work.





■Outline of Flash Editor

  • ECU reflashing via the on board diagnostics port (OBD II).
  • It can save stock ECU data and 2 other custom data files.
  • SLD data is preset in the Flash Editor itself.
  • The original data can be created and edited by Power Writer contract stores
  • Flash Editor is limited to one vehicle tuned.
    (One Flash Editor cannot be used for multiple vehicles.）

■Outline of Power Editor

  • Boost-up can be easily achieved by simply turning on the coupler.
  • Boost update data is preset in the Power Editor.
  • The reset connector is included. Connecting the connector can reset the data to its original after installing this product.
  • Boost-up data can be changed by using Easy Writer for Power Editor.

※Easy Writer is NOT included in the product.
※The USB connector is included to connect this product with a PC.





■Main Functions

  • Boost pressure increase for turbo vehicle: To increase the boost pressure of a stock vehicle
  • Edit the boost increase data: To edit the data to user's original data to increase the boost pressure.
    ※ PC with Windows10, 8.1, 8, or 7 is required.
  • Speed Limiter Removal (SLD): Change the speed limiter to 230 km.

High expandability unique to HKS ・Power Writer dedicated to Flash Editor

  • The data editing tool "Power Writer" is available at HKS Power Writer contract stores.
  • Detailed settings can be made according to user needs using a power writer.
  • The power writer's protect function prevents data leakage to others.





■Features

  • With the setting data using Easy Writer, installing this Power Editor between the boost pressure control sensor and "ECU" can activate the boost increase function of this product.
  • For customers who are not satisfied with the preset data, we offer Easy Writer for Power Editor to change boost-up data.
    If you are looking for a higher level of tuning, you can have the
  • Replacing Power Editor with the provided reset connector can reset the data to the original and easily check the difference.

※Compatible with stock vehicles and vehicles equipped with HKS products.
※Stock ECU data is supported; custom data from the ReFlash tool is not supported.




Easy Writer for Power Editor (Free)

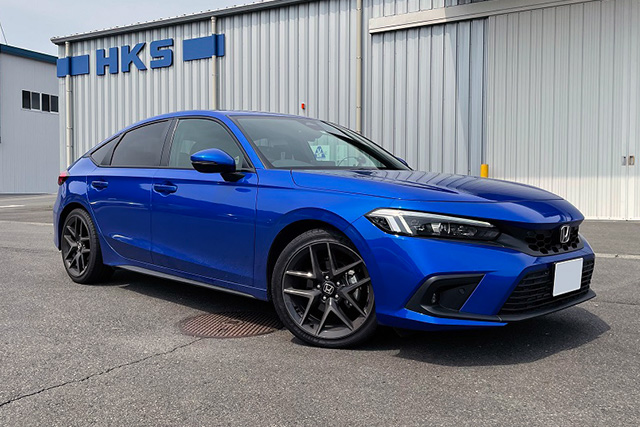

Specification of Test car

HONDA CIVIC FL1 (JDM Spec.) 6MT







■Preset Data Summary and Specifications

●HKS data preset product for HONDA CIVIC FL1 (Japanese Spec.)



■HKS data preset product for HONDA CIVIC FL1 (Japanese Spec.) 6MT model

  Stock Power Editor
Max Output 125.7kW(170.9PS)/6150rpm 144.1kW(196.0PS)/6050rpm
Max Torque 248.0Nm(25.28kgf・m)3550/rpm 287.5Nm(29.31kgf・m)4150/rpm
Max Boost Pressure 102.1kPa(1.04kgf/cm2) 139.6kPa(1.42kgf/cm2)

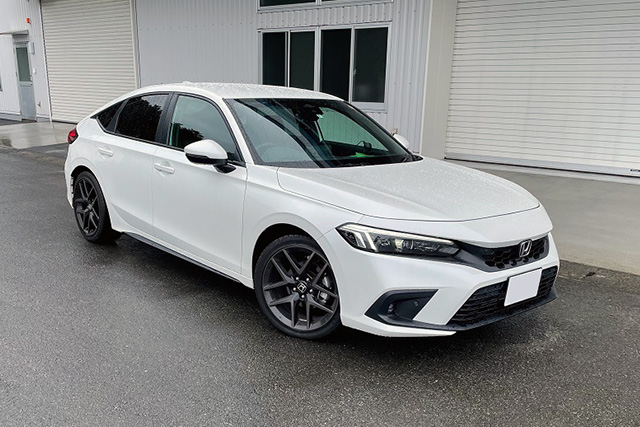

Specification of Test car

HONDA CIVIC FL1 (JDM Spec.) CVT





■Preset Data Summary and Specifications

●HKS data preset product for HONDA CIVIC FL1 (Japanese Spec.)

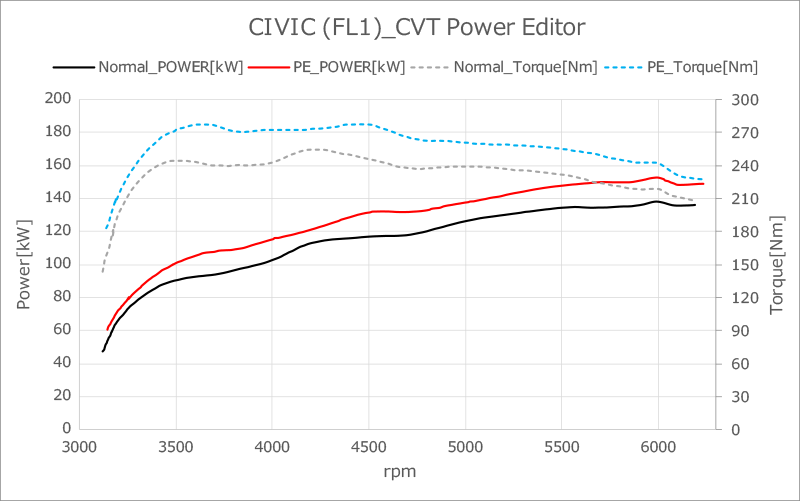

■Performance CVT model

  • CVT SPORT Mode 4th gear Measurement

  Stock Power Editor
Max Output 137.43kW(184.3PS)/5979rpm 152.1kW(204.0PS)/5979rpm
Max Torque 253.0Nm(25.7kgf・m)4199/rpm 275.6Nm(28.1kgf・m)3641/rpm
Max Boost Pressure 102.1kPa(1.04kgf/cm2) 146.1kPa(1.49kgf/cm2)







Vehicle Model Engine Model Year Code No. Manual Remarks
CIVIC FL1 L15C 21/09 - 42020-AH005
