Power Editor R Vehicle Specific Kit
GR YARIS
Explanation of the product Application chart
GR YARIS GXPA16

Code No. 42018-AT020







GR YARIS [GXPA16]













■Summary

  • Easy plug and play installation to increase the boost pressure. The Power Editor R main unit pre-set the boost-up data. It is easy to boost up with the interrupting connection to the sensor harness of the vehicle.
    * Intake manifold pressure sensor, turbo pressure sensor, air flow sensor, cam ngle sensor (rotation signal),  vehicle speed signal (connect optionally).
    * The wiring process is necessary for connecting the vehicle speed signal.
  • Many boost-up products use rotation signals for control, but Power Editor R uses vehicle speed and rotation signals. This makes it possible to control each gear with the optimal correction value.
  • The Easy Writer for Power Editor R (free) allows users to create their own original custom data. Therefore, detailed settings are possible based on the individual vehicle.
    * Easy Writer for Power Editor R is not provided in the product. Please download it from the HKS official website.
    * Windows PC (Windows10/11) is necessary.
  • By using the map changeover switch harness (included), you can switch between the two patterns of settings saved in the main unit. (The switch is not included in the package, so please prepare it yourself.)
  • You can return it to the normal state by using the provided return connector (*1), even after installing this product (after wiring).





■Kit includes

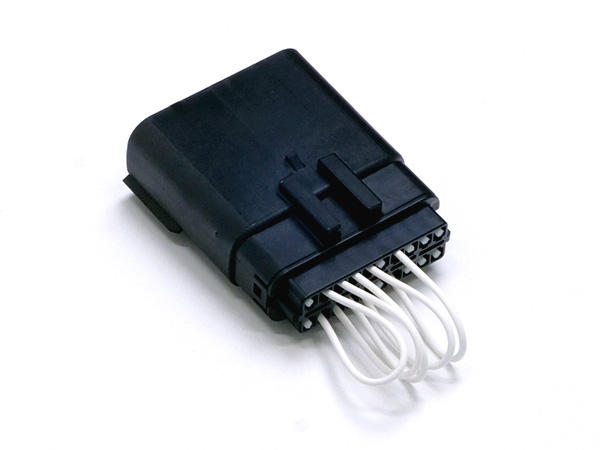

(*1) Provided return connector





■Comparison of Power Editor R (Map A) and Power Editor



  normal Power Editor R
(Vehicle speed signal connection)

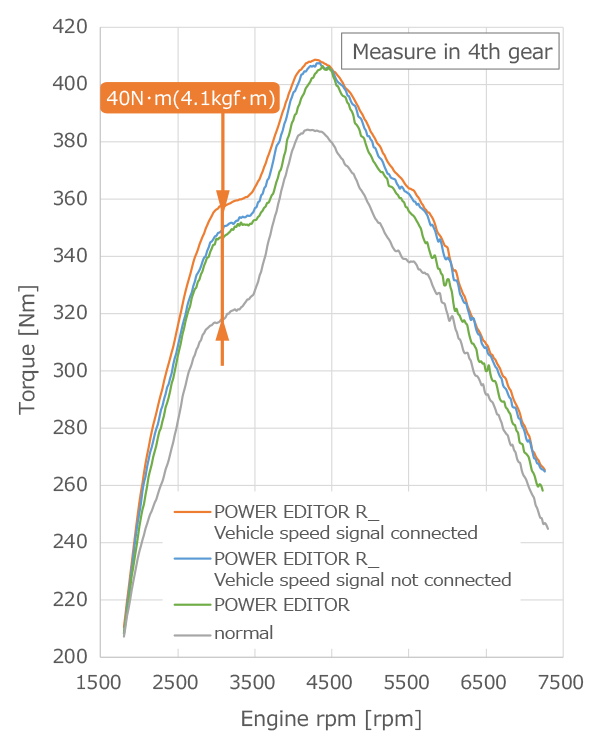

Maximum amount of Change (Output) － 15kW (21PS)/5,420rpm
Maximum amount of Change (Torque) － 40N･m (4.1kgf･m)/3,040rpm
Maximum Output 203kW (275PS)/6,060rpm 215kW (293PS)/6,000rpm
Maximum Torque 384N･m (39.2kgf･m)/4,220rpm 409N･m (41.7kg･m)/4,300rpm
Maximum Boost Pressure 155kPa (1.58kgf/cm2) 175kPa (1.78kgf/cm2)





■CAUTION

  • Please be careful about setting mistakes and data entry mistakes.
    There is a risk of damaging the engine.
    In that case, please note that we do not take any responsibility.





■Function of the Easy Writer

  • Easy Writer for Power Editor R is significantly more powerful than the previous Power Editor.

■Easy Writer for Power Editor [Correction Map]

Function Number of channels Main map
Voltage correction 2 2D Map

[Data monitor function]

  • No

[Data lock function]

  • No

Power Editor for Easy Writer





■ Easy Writer for Power Editor R [Correction Map]

Funciton Number of channels Main map Vehicle speed corection map Throttle corection map
Voltage correction 4 3D Map 3D Map 3D Map
Pulse type air flow correction 1 3D Map － －

[Data monitor function]

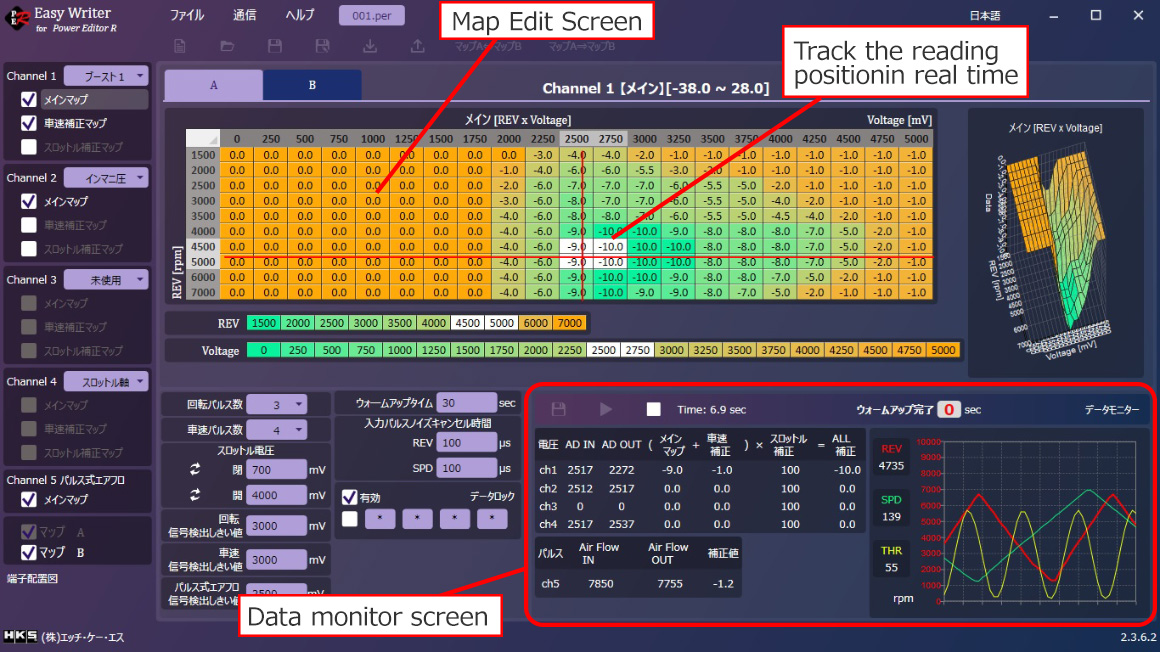

  • Monitor the input value of the sensor and track the reading position in real time.
  • REV, SPD, and THR are shown in the graphical representation.
    You can easily find the point to check sensuously.
  • It can be saved the log data and can check it later.

[Data lock function]

  • Protect the written data to the main unit that uses a 4-digit lock number.







Power Editor R for EasyWriter Download.





Vehicle Model Engine Model Year Code No. Manual Remarks
GR YARIS GXPA16 G16E-GTS 20/09 -24/03 42018-AT020 Not applicable for vehicles after March 2024.
