POWER EDITOR VEHICLE SPECIFIC KIT
GR YARIS
GR YARIS GXPA16

Code No. 42018-AT023





An Easy plug-in boost up, is now available for 2024 Toyota GR Yaris.
Experience increased power and torque from the low range right through to high RPMs.









■Power Editor Features

  • By installing this product between the vehicle's pressure sensor and pressure sensor harness, you can easily increase the boost.
  • This is a "vehicle-specific kit" that includes the main unit with boost-up data tested by HKS and a dedicated mounting harness, so it can be easily installed like a plug-in device.
  • Even after installing this product (after wiring), you can return it to the stock state by using the return connector included with the product.
  • By using the dedicated PC software "Easy Writer", you can change the boost-up data to your liking.

*Easy Writer for Power Editor is not included with the product. (Available for free on HKS official website)
*To connect to a computer, use the USB connection harness included with the product.





■GR Yaris Gen2 Specific Features

  • It can be installed on both MT and AT vehicles.
  • The dedicated harness allows you to install it without damaging the wiring. The recommended installation location for the main unit is above the fuse box, and it is also stands out as an accent in the engine bay.
  • Boost-up data tested by HKS shows that the boost is increased by approximately 10 to 15 kPa (0.10 to 0.15 kgf/cm2) compared to the stock.
  • The torque is increased by approximately 20 Nm (2 kgf/m) at around 3000 to 5000 rpm. Allowing for sharper acceleration.
  • The power is also greatly increased in the high-speed range, so you can enjoy the extension up to the rev limit during spirited driving.

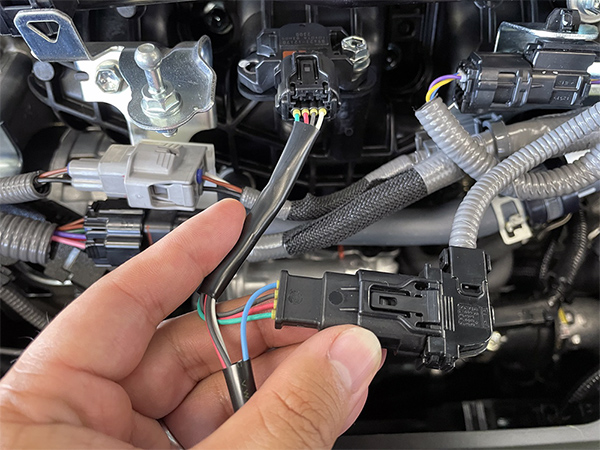

Can be installed by simply plugging into the original wiring.

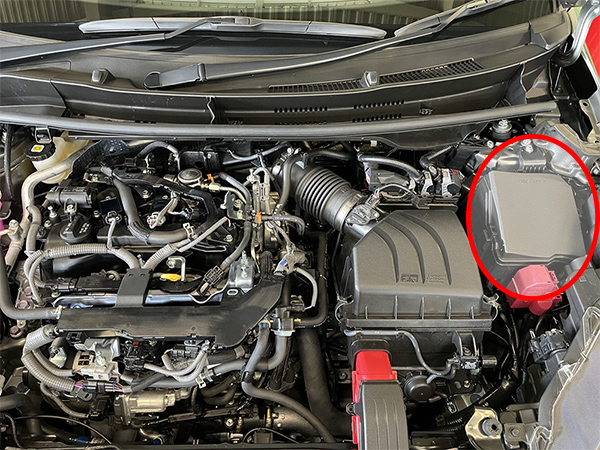

The recommended installation location is on the fuse box.

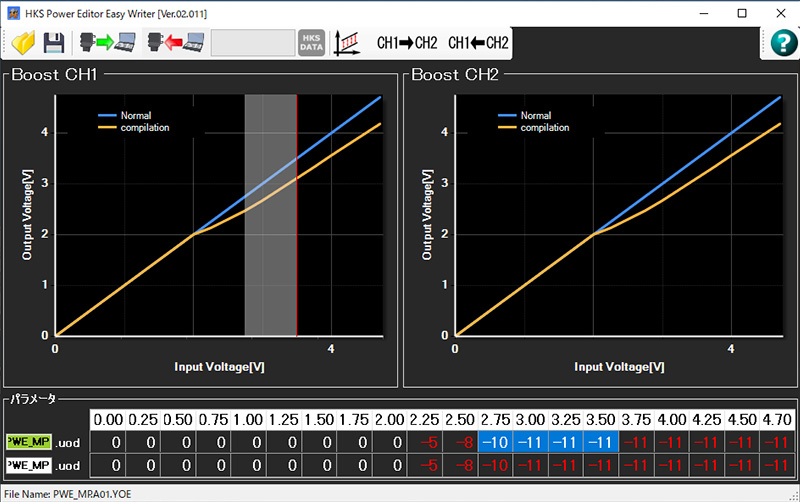

Easy Writer Software for Power Editor (Free)

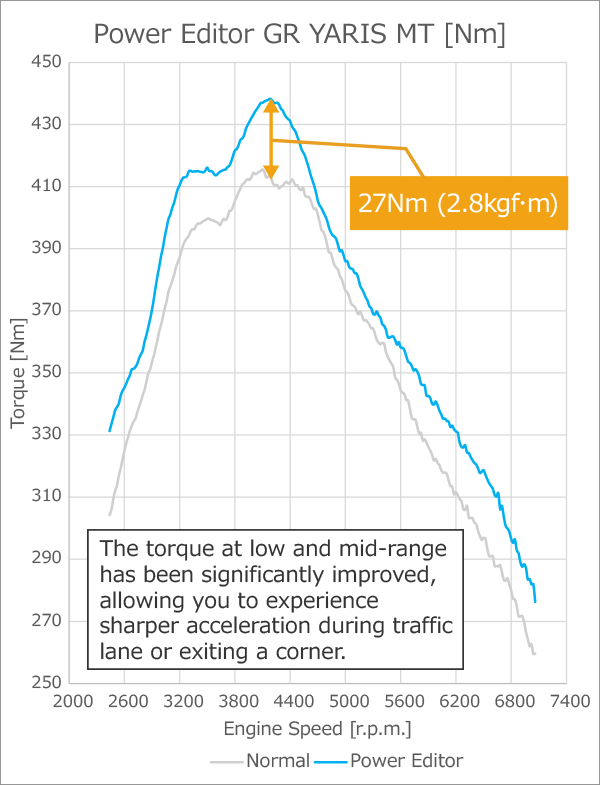

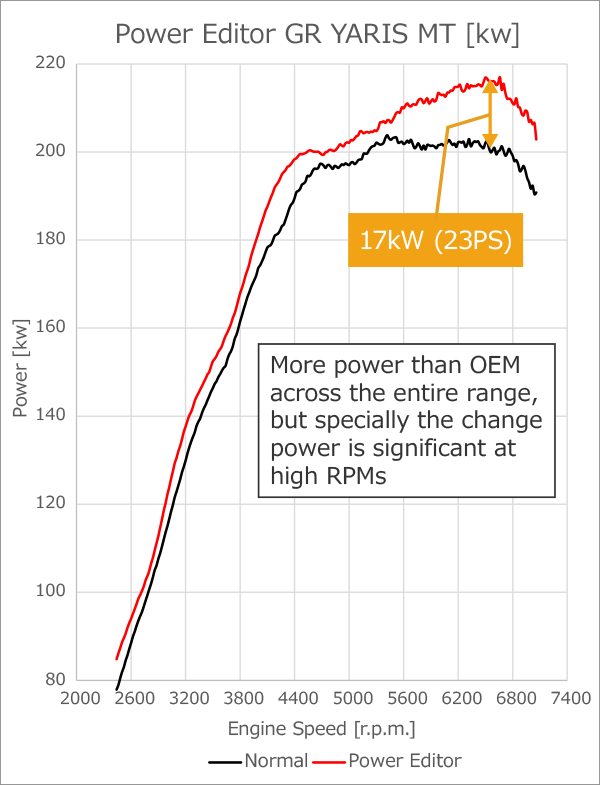

■Performance Data for MT

Preset Data Overview & Specifications

  • HKS data preset for GR YARIS MT/AT (Japanese model)



  Stock Power Editor
Max change (Power) 17kW(23PS)/6660rpm
Max change (Torque) 27Nm(2.8kgf・m)/4240rpm
Max Power 204kW(277PS)/5420rpm 217kW(295PS)/6660rpm
Max Torque 416Nm(42.4kgf・m)/4100rpm 438Nm(44.7kgf・m)/4180rpm
Max Boost pressure 167kPa(1.70kgf/cm²) 181kPa(1.85kgf/cm²)

*Measured on our chassis dynamometer (at 5th gear) Vehicle equipped with SLD Type I (4502-RA002). Actual results may vary depending on measuring equipment, individual vehicle differences, and weather conditions.

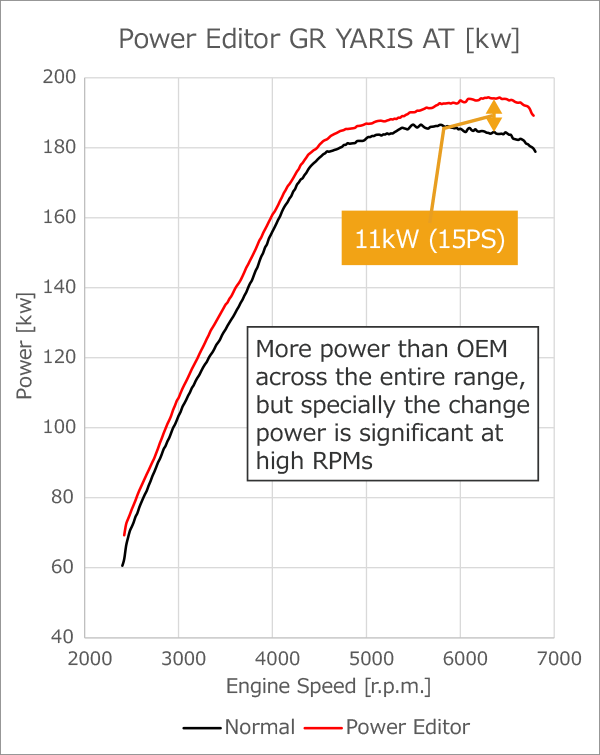

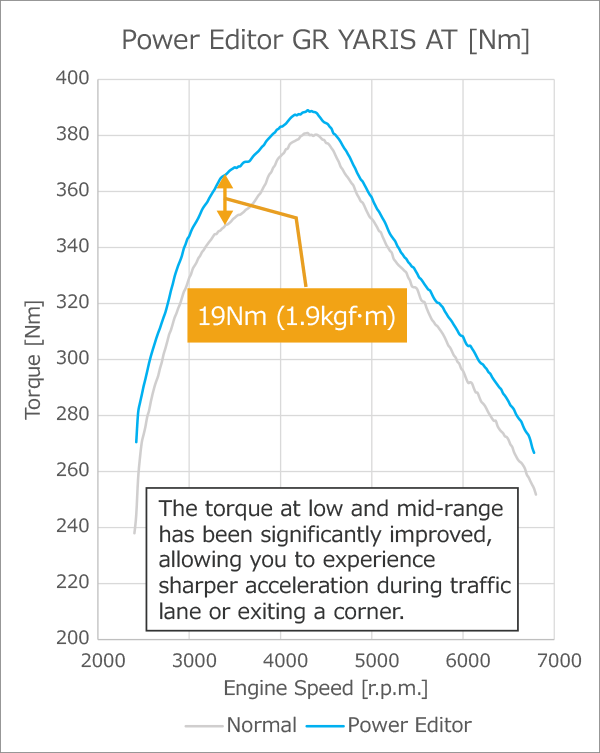

■Performance Data for AT

Preset Data Overview & Specifications

  • HKS data preset for GR YARIS MT/AT (Japanese model)



  Stock Power Editor
Max change (Power) 11kW(15PS)/6590rpm
Max change (Torque) 19Nm(1.9kgf・m)/3440rpm
Max Power 187kW(254PS)/5500rpm 194kW(264PS)/6300rpm
Max Torque 381Nm(38.9kgf・m)/4300rpm 389Nm(39.7kgf・m)/4300rpm
Max Boost pressure 167kPa(1.70kgf/cm²) 177kPa(1.80kgf/cm²)

*Measured using our own chassis dynamometer (at 4th gear). Actual results may vary depending on measuring equipment, individual vehicle differences, and weather conditions.







Vehicle Classification Model Engine Model Year Code No. Manual Remarks
GR YARIS 4BA- GXPA16 G16E-GTS 24/04 - 42018-AT023 Compatible with for both MT/AT Vehicle
