Power Editor R Universal Kit
Explanation of the product Application chart


Code No. 42018-AK002







Power Editor R UNIVERSAL UNIT WITHOUT HARNESS





By combining this product with a car specific harness, it is possible to increase the boost setting per RPM.





*Please purchase car specific harnesses separately.





■Features

  • By simply connecting this product to a harness that is compatible with the vehicle and then writing the set-up data into this product, you can increase the boost pressure.
  • This product can use vehicle velocity and throttle signals in addition to the RPM signal, making it possible to control with the optimum correction value for each gear and throttle opening degree. (Depending on the vehicle's signal availability).
  • Easy Writer for Power Editor R (for free) allows users to create their own original data, making it possible to set up detailed settings adjusted to the individual car.
  • By using the harness for the map selector switch (included in the kit), you can switch between the two map sets saved in the main unit. (the switch itself is not included in the kit, so please prepare your own switch.)
  • It can be returned to the factory conditions by using the return connector included with the product even after the product has been installed.







■Functions of Power Editor R

  • It is capable of correcting 4-channel voltage signals and 1-channel pulse-type air flow signals using RPM signals, vehicle velocity signals, and throttle signals.



No. Function Qty Remarks
1 Voltage correction 4ch Input/output: 0V-5V
2 Pulse frequency correction 1ch Input/output: 0V-5V, 250Hz～15kHz
3 Rotation signal input (Max axis) 1ch Input: 0V-5V or 0V-12V
4 Vehicle speed signal input (Max axis) 1ch Input: 0V-5V or 0V-12V
5 Throttle signal input (Max axis) 1ch Input: 0V-5V, Share with voltage correction ch
6 USB communication 1 port Exclusive use because of shared port
7 Switch Map A and B





■Functions of Easy Writer

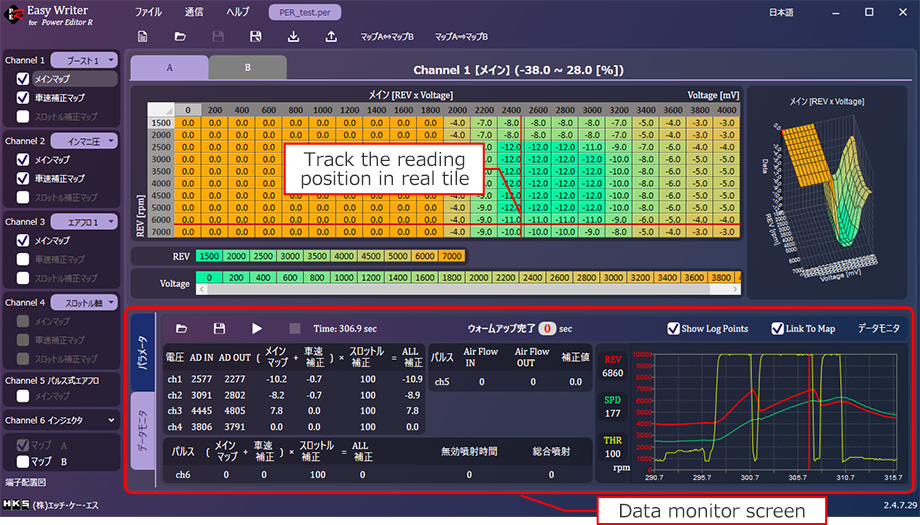

  • It is much more advanced compared to the Easy Writer for the existing Power Editor, with a data monitor function, a data lock function, a function to link saved log data with maps, a real-time map tracking function, and more.







Product Code No. Manual Remarks
Power Editor R UNIVERSAL UNIT WITHOUT HARNESS 42018-AK002
