Power Editor R HARNESS (Application Chart)
CIVIC TYPE R
CIVIC TYPE R FK8

Code No. 42999-AH002

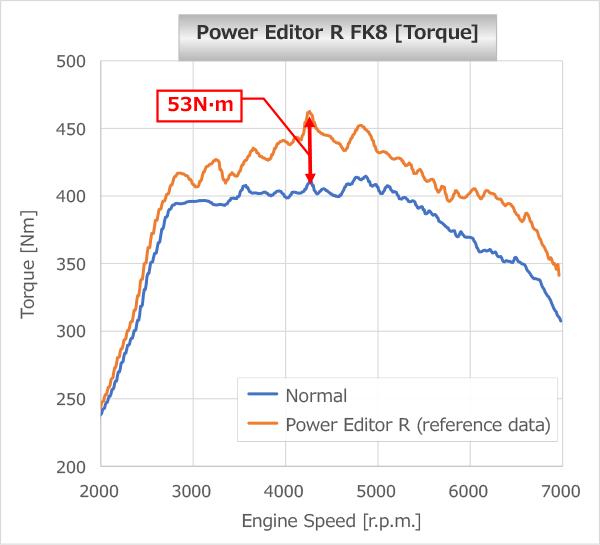

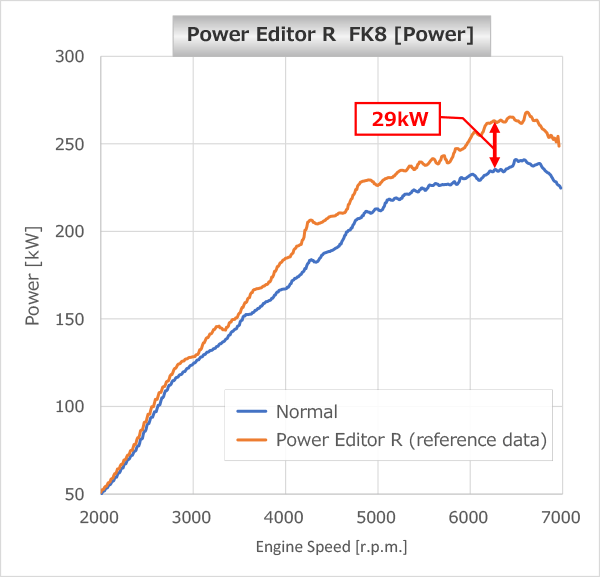

Power Editor R delivers plug-in boost/power gains.
Now available as FK8 Civic Type R-specific harness









■Features

  • When used with the Power Editor R universal unit (sold separately), this product connects to your vehicle’s sensor harness to deliver instant engine performance gains.
  • It goes beyond basic boost increment by incorporating vehicle speed and throttle position data, calculating the perfect boost adjustment for every engine speed, gear, and throttle position.
  • With airflow signal correction capability, it offers a wider tuning range than the standard Power Editor.
  • The Easy Writer software (free on our website) lets you create custom maps to match your vehicle’s unique characteristics and modifications.
  • Even after installation, you can revert to stock settings using the included return connector.
  • The system taps into these critical sensor channels:
    ・ Ch 1: Boost pressure     ・ Ch 2: Intake manifold pressure
    ・ Ch 3: Airflow                 ・ Ch 4: Throttle position
    ・ Cam angle sensor (RPM signal) ・ Vehicle speed input (optional).

Notes: Requires separate purchase of Power Editor R Universal Unit (42018-AK002).
Both components ship without preset maps - actual tuning will be required post-installation.











Vehicle Classification Model Engine Model Year Code No. Manual Remarks
CIVIC TYPE R DBA- FK8 K20C 17/09 -20/09 42999-AH002 Model 6BA-FK8 to be confirmed
