Power Editor Harness SR-1

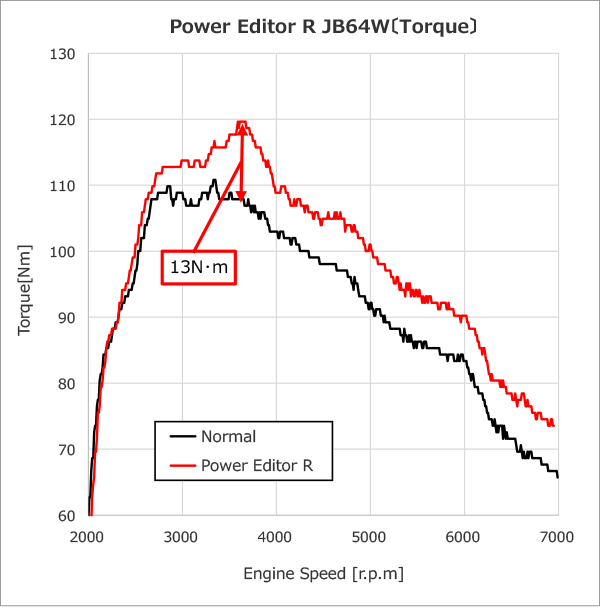

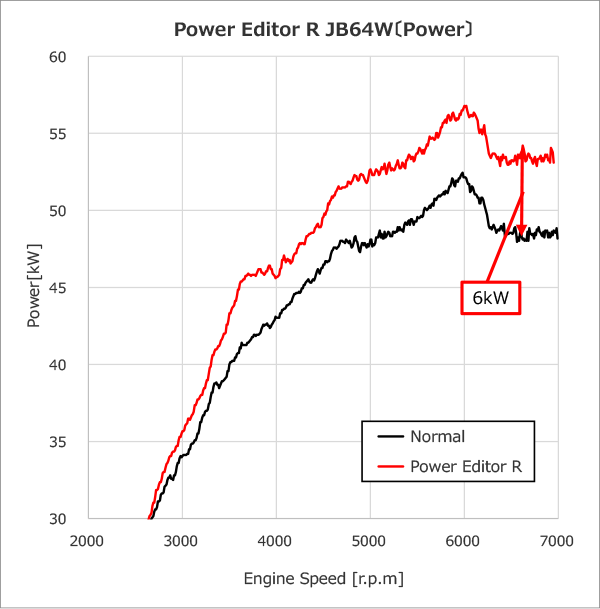

Power Editor R achieves significant boost and power increases with simple plug-and-play installation.
The lineup has been expanded to include a vehicle-specific harness for the Jimny (JB64W).

■Features

• By connecting this product inline with the vehicle’s sensor harness in combination with the Power Editor R Universal Main Unit (sold separately), boost pressure can be increased.
• Because engine speed and throttle signals are also captured, control can be performed using optimal correction values for each engine speed and throttle opening. By utilizing the RPM axis for correction, the range of adjustment is broader compared to the standard Power Editor.
• Using Easy Writer for Power Editor R (free of charge), users can create their own custom data, allowing for detailed tuning to match individual vehicle variations.
• Even after installation (wiring), the vehicle can be returned to its stock condition by using the return connector included with the Power Editor R universal main unit.
• This product is installed by intercepting the following vehicle sensor harnesses and connecting them to each channel of the Power Editor R:
• CH1: Boost pressure sensor / CH2: Intake manifold pressure sensor / CH4: Throttle position / Cam angle sensor (engine speed signal)

※The Power Editor R Universal Main Unit (Part No. 42018-AK002) must be purchased separately.
※No data is preloaded in this product or in the universal main unit. After installation, on-vehicle tuning is required.
