CAMSHAFT NISSAN Explanation of the product Application chart
NISSAN

Code No. 22002-AN031







The world's strongest factory replacement STEP 1 camshaft has a new STEP 2 & STEP 3 that can have more power and higher RPM. We have developed it with the newest profile design and through comparison test of HKS products and other companies’ products. Experience the HKS power!

* STEP 3 is the valve timing change only.



Feature

  • STEP 2 / STEP 3 need more than 450ps and rev limit of 8000rpm/9000rpm engine.
  • We have developed it with the newest profile design and through comparison test of HKS products and other companies’ products.
  • As you can see the graph of the test result, the performance gets better in 6000rpm to 6500rpm, and by using with a big turbine will have a better results.

* If the turbine size is smaller than the GT3037S, “the world’s strongest factory replacement camshaft” has better match.
Please check the separate “The camshaft selection target” for recommendation.





Remarks

<STEP2>
Separate strengthen Valve Spring or head system STEP 2 is required. (rev limit: 8000rpm)

<STEP3>
Separate strengthen Valve Spring, Lash Killer Kit, or Head System STEP3 is required. (rev limit: 9000rpm)
The valve timing is set for both power and torque. Please adjust the valve timing for slide sprocket for your needs.

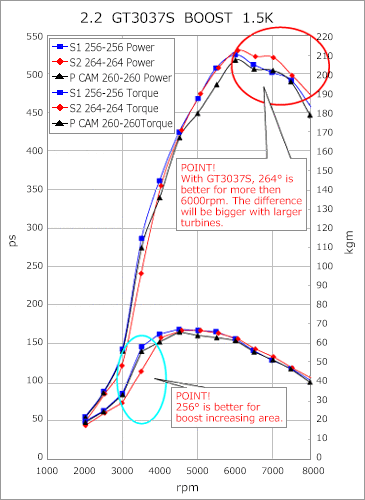

Graph

  • EG base, HKS2.2L kit STEP2 with NVCS
  • Turbine: GT3037S 56T A/R0.61
  • Throttle, surge tank and stock engine bench measurement.





Engine
type
INTAKE SIDE EXHAUST SIDE Remark
Duration Valve
lift
Designed
valve timing
Code no. Price Duration Valve
lift
Designed
valve timing
Code no. Price
SR20DET
S14/S15
264° 12.0 118° 22002-AN031   264° 12.0 114° 22002-AN032   for STEP3, NVCS
          272° 11.5 114° 22002-AN035

* Existing STEP 2 and 3 will discontinued after the inventory end. STEP 3 will switchover renewal products.



Engine Side Duration Valve Lift Designed Valve Timing Code No. Price Remarks
SR20DET S14・S15 INTAKE 264° 12.0 118° 22002-AN031 * To be discontinued. STEP3, For NVCS
