GROMMET TYPE HEAD GASKET KIT NISSAN Explanation of the product Application chart

Code No. 23002-AN001




Grommet type gasket ensuring the better sealing quality

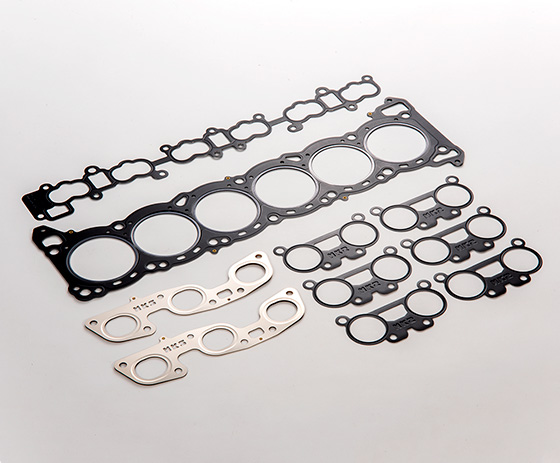

Including exhaust/intake manifold and throttle gasket





  • Newly added 1.6mm thickness gasket to grommet type metal gasket kit for RB26. (The previous name is Drag metal gasket kit)
  • Ensuring sealing by using the grommet type which has an advantage of preventing the gasket failing. Greatly improves limits of sealing.
  • Using with strengthened head bolt gains a better sealing effect.
  • Some buckling may appear on the sealing surface between the head and cylinder due to the high pressure. Therefore, we provide a thick gasket for overhauls that include surface polishing.



HKS Grommet type


Engine Thickness (mm) Compression Ratio Bore Code No. Price Remarks
RB26DETT 1.6 8.4 Φ88 23002-AN001 Including Exhaust manifold Gasket (2 pcs), Intake manifold Gasket (1 pc), Throttle Gasket (6 pcs)
