Code No. 24996-AK054



“5PK1170” is now available as a stock replacement for ABARTH 595 in Reinforced V-belt






  • Increased durability at high temperatures which can be found in the engine bay of tuned vehicles. Increased performance in cold weather and condition.
  • Lightweight and good friction tolerance properties which means that excess tension is not required while anti-sound properties reduces belt squeal.
  • The lightweight belt provides high-following performance even at a variable rotational speed, and this does not only reduce squeaking sound but also provides high transmission efficiency.

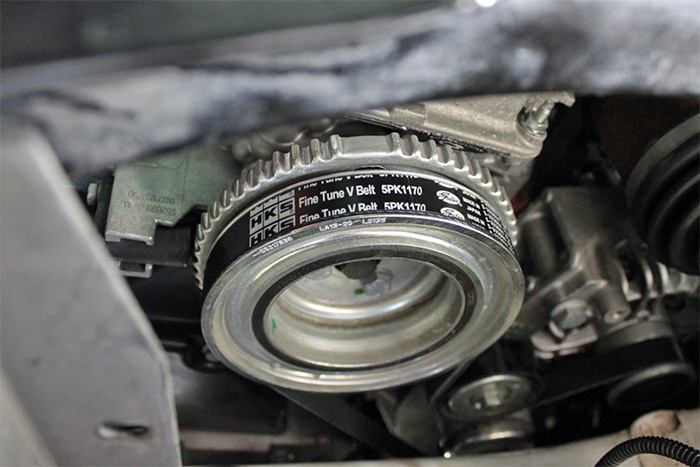

  • The back of 5PK1170 employs black color with HKS logos. It features not only the HKS logo but also the product name and belt length printed on it.
  • This belt is an exclusive product for an auto tensioner for ABARTH 595
  • ABARTH genuine belt part number: 55219226
  • This product is specially designed to meet the auto tensioner model. You can use it with confidence. (The belt has different characteristics depending on the tensioner structure.)

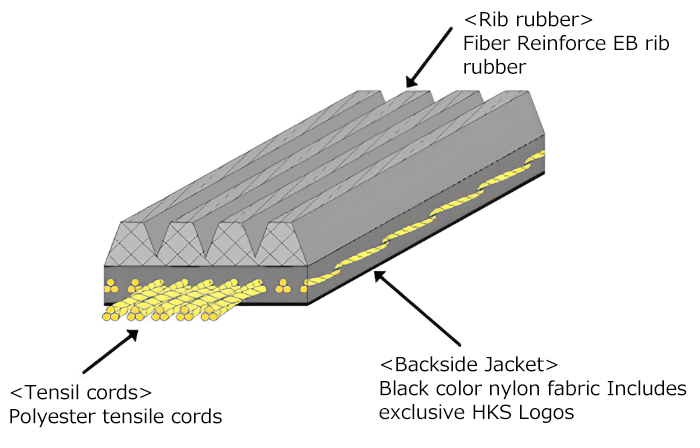

  • The belt structure is designed to ensure compatibility with genuine products by incorporating a core wire made of polyester tensile cords and featuring a rubber-backed specification with nylon fabric.



* The contents below may differ depending on the model.

☆Superiority of using the EB (ethylene-butene)

  • Better durability and performance in hotter or colder conditions with improved friction tolerance.
  • Much lighter than previous version of belt.
  • Short fiber mixture in rib rubber improves the performance over previous version.






Product Code No. Manual Remarks
FINE TUNE V BELT 5PK1170 24996-AK054 for ABARTH 595
