CAM PULLEY
ROADSTER
ROADSTER

Code No. 22004-AZ001





HKS “Slide Cam Pulley” for MAZDA “B6/BP” engine is newly developed.
The new pulley series is lighter and more durable than the previous series.











■Features

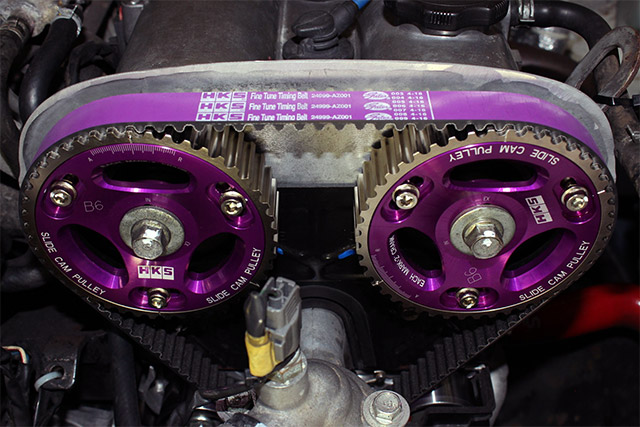

  • “SLIDE CAM PULLEY” for the “B6-ZE” and “BP-ZE” engines used in highly popular vehicles such as the “NA” and “NB” Mazda MX-5/Miata/Roadster. Both the material and shape have been designed with a focus on weight reduction.
  • Ultra-lightweight duralumin material (A2014) is used as the base material.
  • The shape of the product has also been reconsidered and improved from the previous series.
  • The weight is reduced by about 7% from “0.350kg” to “0.327kg” of the predecessor product.
  • Surface of gear is plated with nickel to improve durability. Designed to withstand possible abrasion caused by foreign objects.
  • It is also suitable for use with our reinforced timing belt, “HKS FINE TUNE TIMING BELT”, available on the market now. Recommended for users who thoroughly enjoy sports driving.

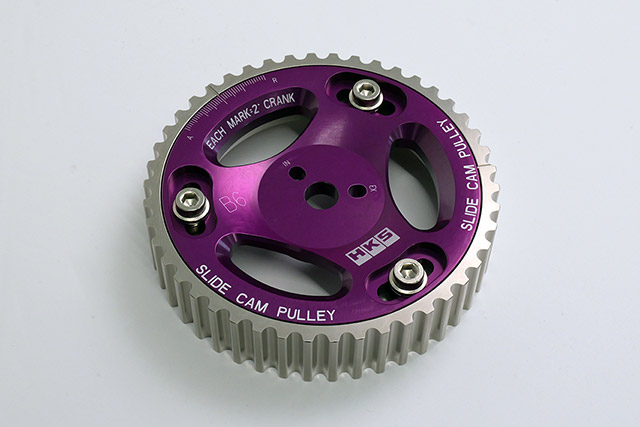

  • Various engine specifications can be satisfied by the angle adjustment mechanism. (One scale on the pulley indicates a crank angle of 2°.
  • To prevent adjustment errors, A (Advance) and R (Retard) are engraved for visual confirmation.
  • Adjustable angle from -20° to 20°.







Engine Type Code No. Manual Remarks
B6-ZE, BP-ZE AL Slide 22004-AZ001 For IN/EX
