STAINLESS EXHAUST MANIFOLD S2000 Explanation of the product Application chart
S2000 AP1
STAINLESS EXHAUST MANIFOLD

Code No. 33002-AH001





Photo: Prototype

HKS has developed the Super Sound Master and Metal Catalyzer simultaneously. By setting HKS exhaust manifold the high potential S2000 drive powerfully and comfortably.



This exhaust manifold does not sacrifice the torque characteristics at low to mid speed range. The layout is the same 4-2-1 type as the factory manifold. HKS' exhaust manifold is twisted at “2” to extend the pipe length allowing the torque improvement at mid speed range Knocking is also reduced, increasing ignition timing and air-fuel ratio for further performance and stability. Weight is 5kg less than the stock exhaust manifold.


  HKS Stock
Layout 4-2-1 4-2-1
Pipe dia. φ45-50-65 φ45-55-65
Weight 4.5kg 10.2kg

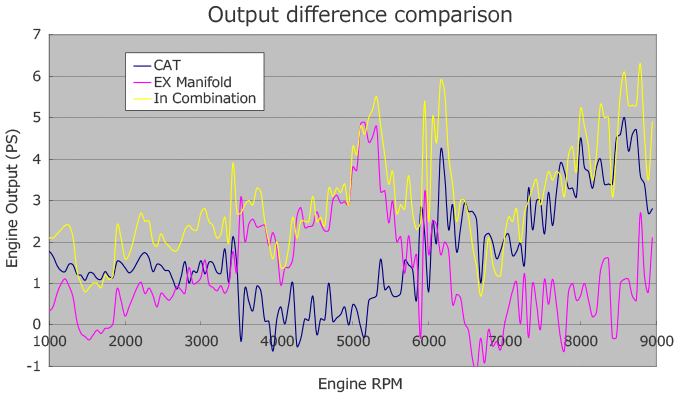

TEST DATA



Exhaust manifold (pink line) shows its advantage at low to mid speed range. CAT (blue line) shows its advantage at mid to high speed range. When used in combination of these two items have a beneficial effect on all speed ranges.



Vehicle Model Engine Model Year Type Pipe Size Connection Consist of JASMA Code No. Price Remarks
S2000 AP1 F20C 99/04-05/10 STAINLESS EXHAUST MANIFOLD Φ45 - 50 - 65 4 - 2 - 1 1 11E001 33002-AH001
