Code No. 14002-AN001
*Discontinued.
To compensate fuel for supercharger or turbocharger, large size injector was released.

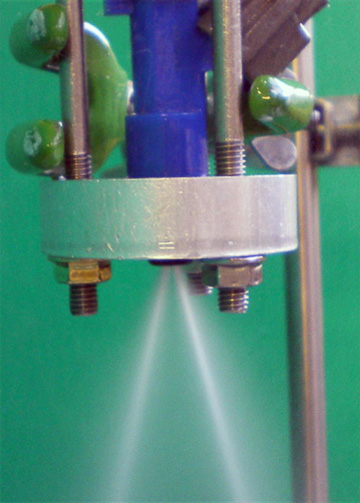

*Comparison of injection hole
(With the latest technology, mixture condition is greatly improved. It is effective during cold condition that is hard for fuel to be mixed and during acceleration that requires a lot of fuel.)
Dimensions for installation
Inner dia. of delivery pipe | φ13.4 |
Dia. of hole of cylinder head | φ13.9 |
Length between O-ring | 53mm |
Stock VQ35DE early model |
HKS current item | HKS new item | |
RB25DE (NEO) | 1402-RN011 | 14002-AN001 | |
Injection volume (name) | - | 480cc (*) | 545cc (*) |
Full injection volume (@300kPa) | 300cc | 505cc | 575cc |
# of injection holes | 4 | 4 | 12tapered |
Injection angle (measured) | 15° | 10° | 25° |
Mixture | ○ | △ | ◎ |
|
|
Large size Injector Vehicle other application Code no.14002-AN001
Vehicle | Model | Engine Model |
Year | Injector volume |
Injector type | Connector color |
Injector stock # | Remark |
Skyline | V36 | VQ37VHR | 08/12- | 545 | Top/high resistance | Blue | 16600-EY00A | |
V36 | VQ35HR | 06/11-08/11 | 545 | Top/high resistance | Blue | 16600-JK20A | ||
V35 | VQ35DE | 03/01-06/10 | 545 | Top/high resistance | Blue | 16600-2Y905 16600-2Y915 16600-5L700 16600-CD700 16600-CD701 16600-CD70A |
||
Fairlady | Z34 | VQ37VHR | 08/12- | 545 | Top/high resistance | Blue | 16600-EY00A | |
Z33 | VQ35HR | 07/02-08/11 | 545 | Top/high resistance | Blue | 16600-JK20A | ||
Z33 | VQ35DE | 02/07-07/01 | 545 | Top/high resistance | Blue | 16600-2Y905 16600-2Y915 16600-5L700 16600-CD700 16600-CD701 16600-CD70A |
* These are the main applicable vehicles
RB25DE (T), RB20DE, not checked.
