S-Style X
bB
bB NCP31

S-Style X

Code No. 80120-AT213

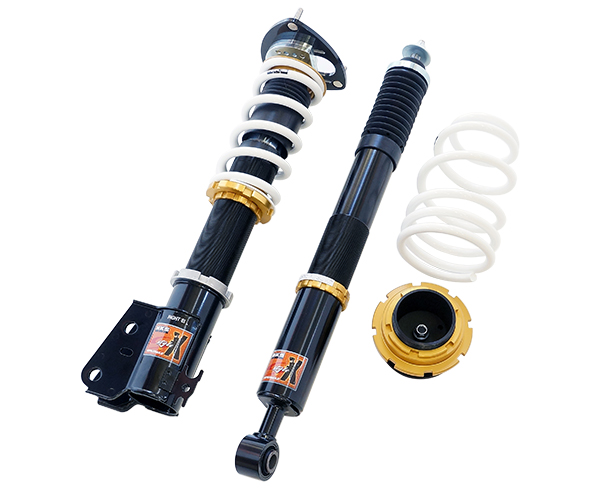

"Not just for lowering the vehicle height." "Super Low Stance Model" for reliable driving performance.





The model in the photo is NCP31.





Application

Engine 1NZ-FE
Model Year 00/02 - 05/12
Remarks

Specification

  FRONT REAR
Damping force adjustment 30 steps 30 steps
Base valve - -
Height adjustable lower bracket
Upper mount Spherical bearing Stock
Inverted/Normal type Inverted Normal
Damper/Spring layout Coilover Separated
Spring rate change at factory Possible Impossible
Damping force adjustment with wire - -
Helper spring
(Spring rate N/mm)
- -
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3
Drivable range
High - Low *4
FRONT Ride height *1 614 591 654 ~ 565 634 ~ 581
Against stock -67 -90 -27 ~ -116 -47 ~ -100
REAR Ride height *1 604 592 617 ~ 573 617 ~ 592
Against stock -72 -84 -59 ~ -103 -59 ~ -84

*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information

Spring of Full Kit

  F R
Spring rate N/mm(kgf/mm) 49 ( 5 ) 46 ( 4.7 )
Free height (mm) 200 -
Spring type Straight Special shape
Recommended range to change spring rate N/mm(kgf/mm) ±10 ( 1 ) -

Specification of damper

  F R
Damping force (Rebound/Damping)N* 482 / 217 308 / 168
Default position of dial 20 20
Remaining damper stroke (Rebound/Damping)mm 47 / 40 46 / 77

* The value of the damping force is at piston speed of 0.1m/sec.

Setting data

  F R
Default Test Drivable limit
High *
Drivable limit
Low *
Default Test Drivable limit
High *
Drivable limit
Low *
Length of
case (mm)
333 316 340 316 410 400 421 400
Spring
Set length(mm)
185 190 173 200 - - - -
Length to ride hight
adjuster (mm)
101 79 120 69 42 32 53 32
Lever ratio 1.05 1.18 (spg)

* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information

  F R
Vehicle weight kg - -
Tire size (Air pressure) kPa 215 / 40 - 17 (220) 215 / 40 - 17 (220)
Wheel size 7JJ × 17 off25 7JJ × 17 off25
Alignment
(Toe/Camber)
Test data 0mm / -0°30' in 5mm / -1°10'
Standard value 0±1mm / -0°35'±45' in 3.5±3mm / -1°00'±45'

* Test data at HKS.

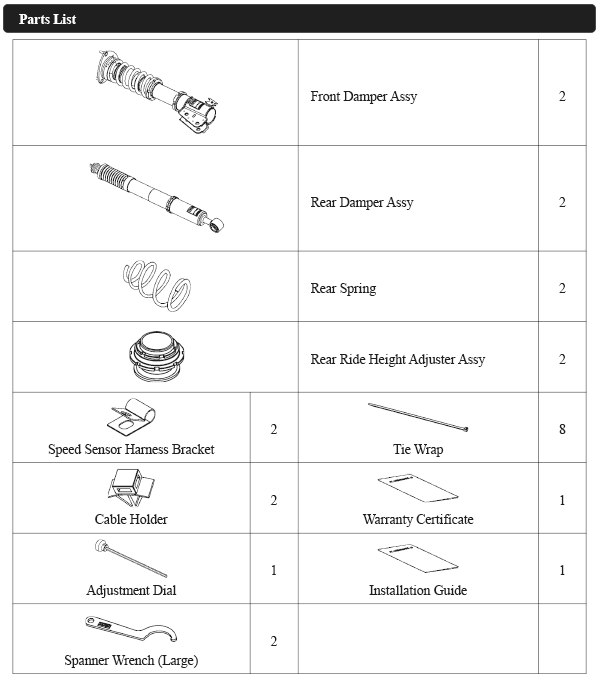

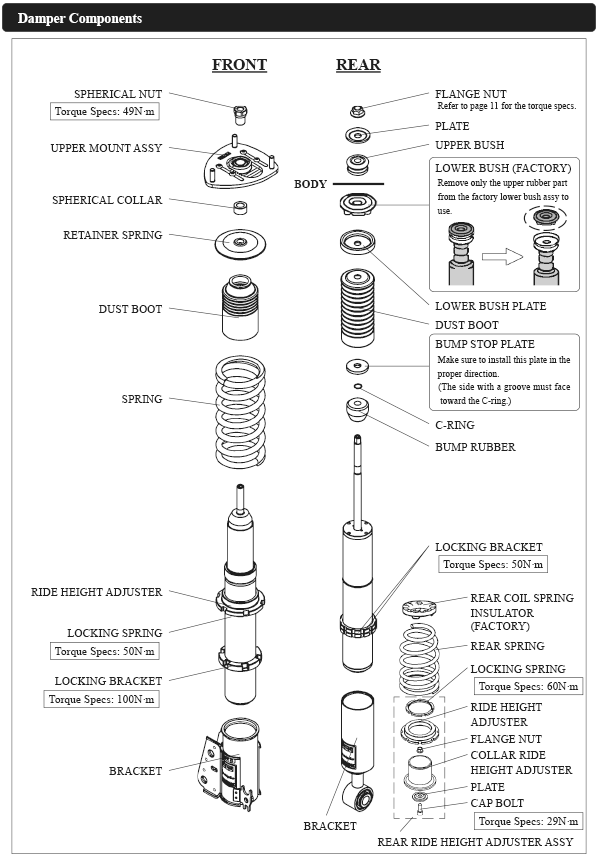

Parts List  * It may be changed without prior notice.
