S-Style X
PRIUS
PRIUS NHW20

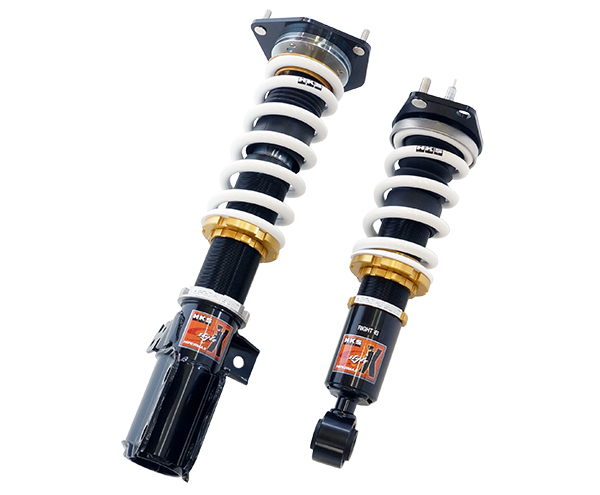

S-Style X

Code No. 80120-AT215





"Not just for lowering the vehicle height." "Super Low Stance Model" for reliable driving performance.





The model in the photo is NHW20.





Application

Engine 1NZ-FXE(1NZ-3CM)
Model Year 03/09 - 09/04
Remarks

Specification

  FRONT REAR
Damping force adjustment 30 steps 30 steps
Base valve - -
Height adjustable lower bracket
Upper mount Spherical bearing Rubber
Inverted/Normal type Inverted Normal
Damper/Spring layout Coilover Coilover
Spring rate change at factory Possible Impossible
Damping force adjustment with wire -
Helper spring
(Spring rate N/mm)
- -
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3
Drivable range
High - Low *4
FRONT Ride height *1 619 593 648 ~ 576 648 ~ 578
Against stock -29 -55 0 ~ -72 0 ~ -70
REAR Ride height *1 622 598 622 ~ 571 622 ~ 598
Against stock -36 -60 -36 ~ -87 -36 ~ -60

*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information

Spring of Full Kit

  F R
Spring rate N/mm(kgf/mm) 78 ( 8 ) 78 ( 8 )
Free height (mm) 200 150
Spring type Straight Straight
Recommended range to change spring rate N/mm(kgf/mm) +20 (+2) -

Specification of damper

  F R
Damping force (Rebound/Damping)N* 1373 / 324 559 / 137
Default position of dial 20 20
Remaining damper stroke (Rebound/Damping)mm 43 / 44 31 / 41

* The value of the damping force is at piston speed of 0.1m/sec.

Setting data

  F R
Default Test Drivable limit
High *
Drivable limit
Low *
Default Test Drivable limit
High *
Drivable limit
Low *
Length of
case (mm)
323 298 341 284 251 234 251 234
Spring
Set length(mm)
200 200 190 200 148 150 148 150
Length to ride hight
adjuster (mm)
61 36 91 22 24 5 24 5
Lever ratio 1.05 1.28

* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information

  F R
Vehicle weight kg 734 501
Tire size (Air pressure) kPa 185 / 65 - 15 ( 230 ) 185 / 65 - 15 ( 230 )
Wheel size 6 JJ × 15 off 45 6 JJ × 15 off 45
Alignment
(Toe/Camber)
Test data 0 mm / -2°30' in 5 mm / -1°30'
Standard value in 0 ± 2 mm / -0°35' ± 45' in 3 ± 2.5 mm / -1°30' ± 30'

* Test data at HKS.

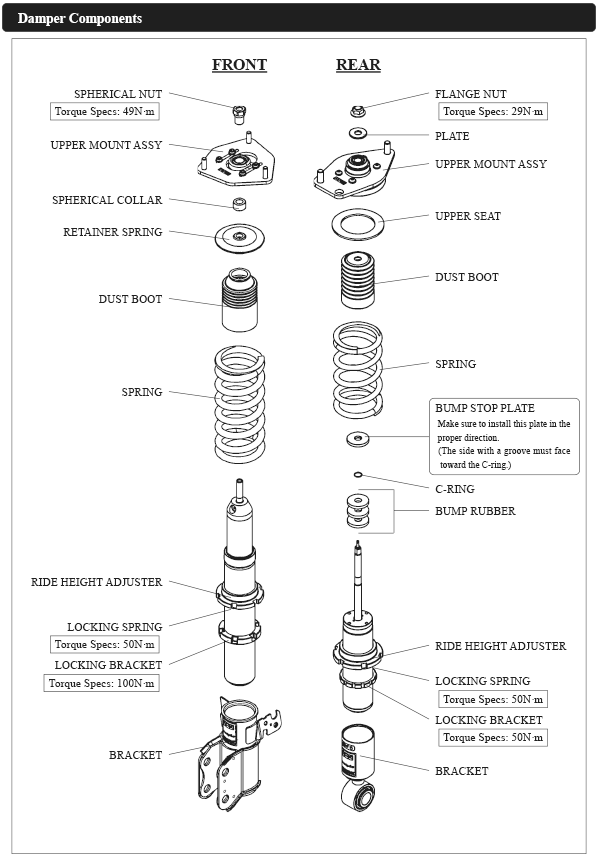

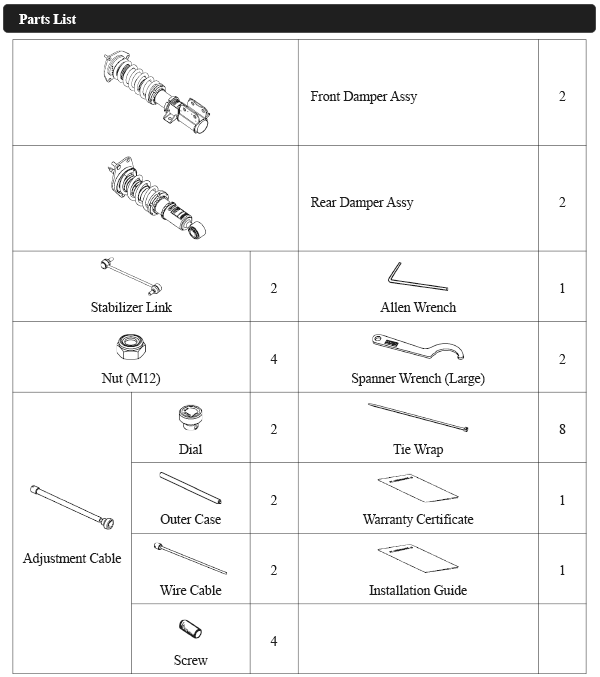

Parts List  * It may be changed without prior notice.




Point
