S-Style X
MARK X
MARK X GRX130

S-Style X

Code No. 80120-AT206





"Not just for lowering the vehicle height." "Super Low Stance Model" for reliable driving performance.





The model in the photo is GRS130





Application

Engine 4GR-FSE
Model Year 09/10 - 19/12
Remarks The factory setting for case length and winding measuments set for GRS204.

Specification

  FRONT REAR
Damping force adjustment 30 steps 30 steps
Base valve - -
Height adjustable lower bracket
Upper mount Spherical bearing Spherical bearing
Inverted/Normal type Normal Normal
Damper/Spring layout Coilover Coilover
Spring rate change at factory Possible Possible
Damping force adjustment with wire -
Helper spring
(Spring rate N/mm)
- -
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3
Drivable range
High - Low *4
FRONT Ride height *1 650 644 697 ~ 618 697 ~ 644
Against stock -47 -53 0 ~ -79 0 ~ -53
REAR Ride height *1 635 602 695 ~ 577 695 ~ 602
Against stock -60 -93 0 ~ -118 0 ~ -93

*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information

Spring of Full Kit

  F R
Spring rate N/mm(kgf/mm) 176 ( 18 ) 157 ( 16 )
Free height (mm) 150 170
Spring type Straight Straight
Recommended range to change spring rate N/mm(kgf/mm) +20 ( 2 ) +20 ( 2 )

Specification of damper

  F R
Damping force (Rebound/Damping)N* 1846 / 940 1775 / 814
Default position of dial 20 20
Remaining damper stroke (Rebound/Damping)mm 24 / 48 25 / 47

* The value of the damping force is at piston speed of 0.1m/sec.

Setting data

  F R
Default Test Drivable limit
High *
Drivable limit
Low *
Default Test Drivable limit
High *
Drivable limit
Low *
Length of
case (mm)
408 408 440 408 396 378 436 378
Spring
Set length(mm)
146 150 146 150 166 170 166 170
Length to ride hight
adjuster (mm)
122 118 154 118 90 68 130 68
Lever ratio 1.47 1.49

* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information

  F R
Vehicle weight kg 813 (840) 703 (680)
Tire size (Air pressure) kPa 255 / 30 - 20 ( 300 ) 275 / 30 - 20 ( 300 )
Wheel size 8.5 JJ × 20 off 45 9.5 JJ × 20 off 50
Alignment
(Toe/Camber)
Test data 0 mm / -1°36' in 3 mm / -2°30'
Standard value - -

* Test data at HKS.

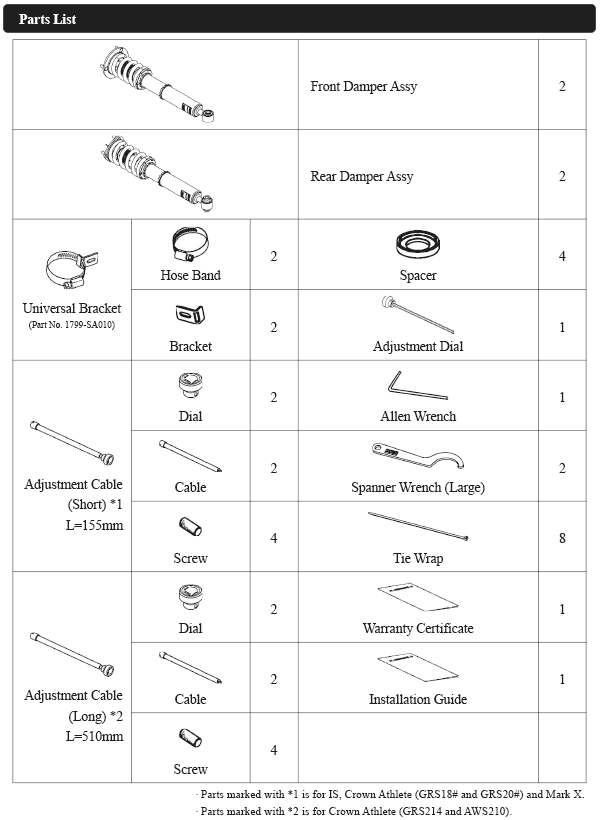

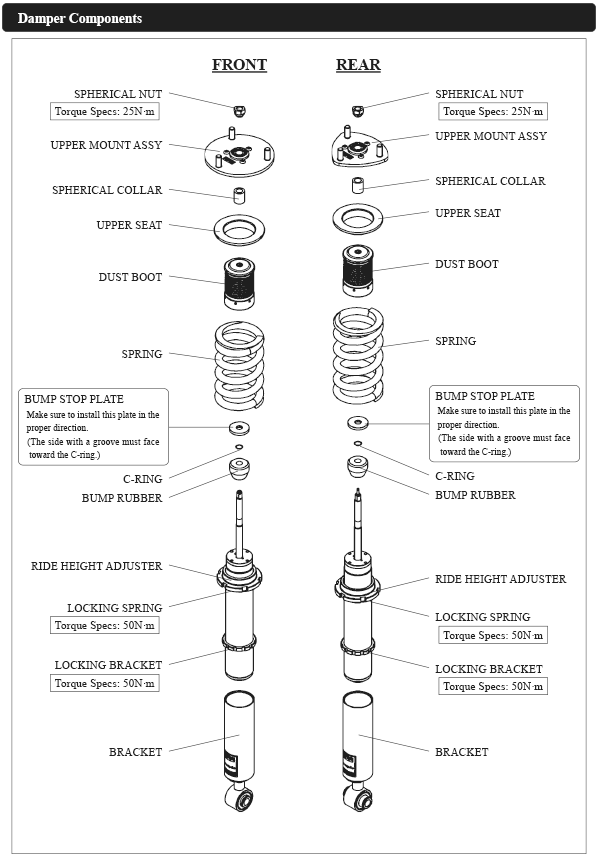

Parts List  * It may be changed without prior notice.




Point

・Ultimate low-down suspension that used movable limit level of the arm. This kit is for dress-up user who wants a serious low-down.
・The damping force and spring rate are a little firm setting to prevent the interfere of the aero and the road at a high rolling and to compensate for uncomfortable ride because of more weight with big wheels.
・If the case length for both front and rear are set lower than the driving limit level, the upper arm and body might interfere with each other.
・Factory settings are 90mm from ground.

●About installation modification
・Need a hole for rear damping force adjustment cable(inside trunk).
・Need to cut some part of the inner fender if spring interferes.
