D' NOBspec
SILVIA
SILVIA S15

D' NOBspec

Code No. 80015-AN103





Suspension for Easy Drifting.









Application

Engine SR20DET
Model Year 99/01 - 02/08
Remarks

Specification

  FRONT REAR
Damping force adjustment 30 steps 30 steps
Base valve - -
Height adjustable lower bracket
Upper mount Spherical bearing Spherical bearing
Inverted/Normal type Inverted Normal
Damper/Spring layout Coilover Coilover
Spring rate change at factory Possible Possible
Damping force adjustment with wire -
Helper spring
(Spring rate N/mm)
- ○ ( 19.8 )
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3
Drivable range
High - Low *4
FRONT Ride height *1 638 638 677 ~ 597 670 ~ 624
Against stock -39 -39 0 ~ -80 -7 ~ -53
REAR Ride height *1 622 622 682 ~ 566 682 ~ 592
Against stock -60 -60 0 ~ -116 0 ~ -90

*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information

Spring of Full Kit

  F R
Spring rate N/mm(kgf/mm) 78 ( 8 ) 59 ( 6 )
Free height (mm) 200 200
Spring type Straight Straight
Recommended range to change spring rate N/mm(kgf/mm) ±20 ( 2 ) ±20 ( 2 )

Specification of damper

  F R
Damping force (Rebound/Damping)N* 696 / 412 942 / 197
Default position of dial 15 15
Remaining damper stroke (Rebound/Damping)mm 29 / 70 74 / 62

* The value of the damping force is at piston speed of 0.1m/sec.

Setting data

  F R
Default Test Drivable limit
High *
Drivable limit
Low *
Default Test Drivable limit
High *
Drivable limit
Low *
Length of
case (mm)
226 226 251 226 477 477 508 454
Spring
Set length(mm)
188 188 185 200 268 268 239 275
Length to ride hight
adjuster (mm)
36 36 64 24 92 92 152 62
Lever ratio 1.14 1.00

* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information

  F R
Vehicle weight kg 692 (690) 577 (550)
Tire size (Air pressure) kPa 235 / 40 - 18 ( 220 ) 265 / 35 - 18 ( 300 )
Wheel size 9 JJ × 18 off - 10 JJ × 18 off -
Alignment
(Toe/Camber)
Test data 0 mm / -4°00' 0 mm / -3°00'
Standard value in 3 ~ 1 mm / -1°00' ± 45' in 5.2 ~ 0 mm / -1°25' ± 30'

* Test data at HKS.

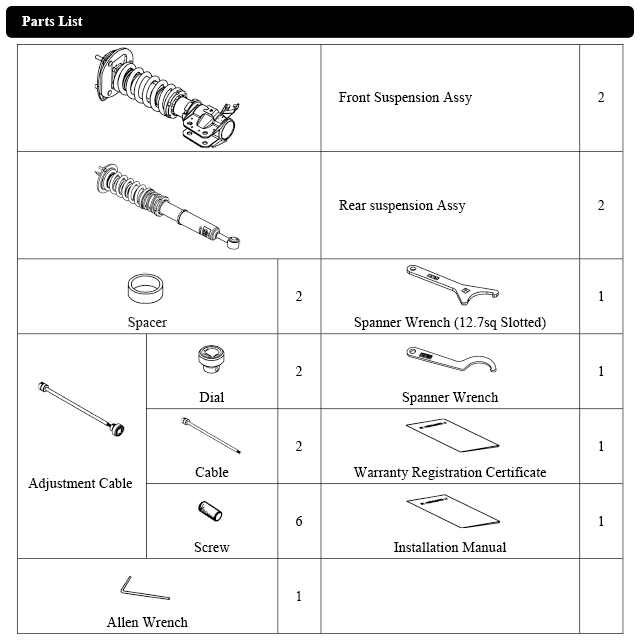

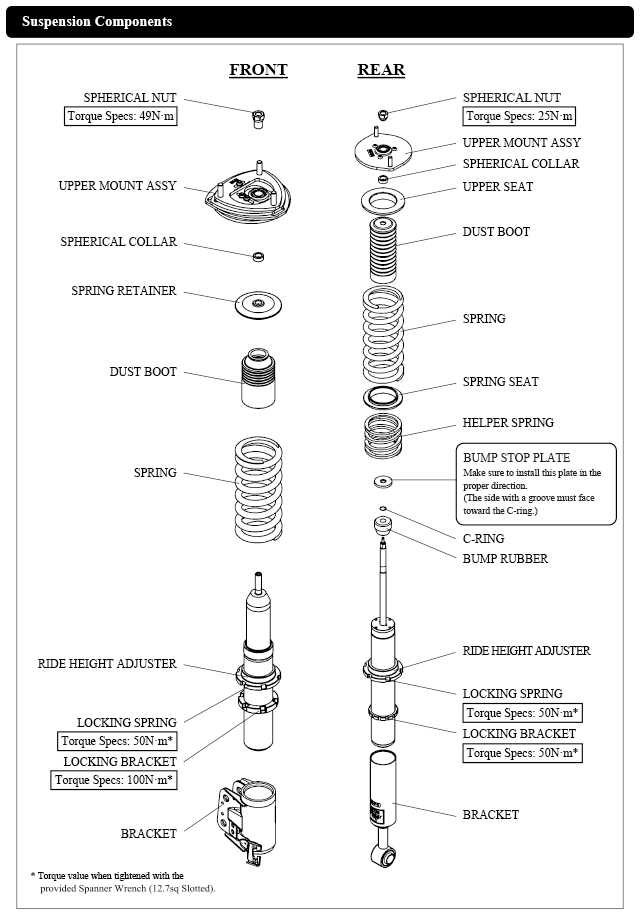

Parts List  * It may be changed without prior notice.




Point

・We have developed a new suspension for the concept of "smooth and moving suspension" with professional driver Nobuteru Taniguchi .
・We have set the front turning, rear traction and quick turn response with caution.
・Tested with radial tires.
・We have moved the hole position of bracket a little to have more camber angle for front (about 2 degree).
・2 way pillow upper is standard equipment.

●About installation modification
・Needs an hole for rear damping adjustment cable (inside).
