S-Style X
ODYSSEY
ODYSSEY RB3

S-Style X

Code No. 80120-AH203





"Not just for lowering the vehicle height." "Super Low Stance Model" for reliable driving performance.





The model in the photo is RB3.





Application

Engine K24A
Model Year 08/10 - 13/10
Remarks

Specification

  FRONT REAR
Damping force adjustment 30 steps 30 steps
Base valve - -
Height adjustable lower bracket
Upper mount Rubber Rubber
Inverted/Normal type Normal Normal
Damper/Spring layout Coilover Coilover
Spring rate change at factory Possible Impossible
Damping force adjustment with wire -
Helper spring
(Spring rate N/mm)
- -
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3
Drivable range
High - Low *4
FRONT Ride height *1 658 621 687 ~ 589 687 ~ 621
Against stock -40 -77 -11 ~ -109 -11 ~ -77
REAR Ride height *1 644 609 644 ~ 568 644 ~ 609
Against stock -63 -98 -63 ~ -139 -63 ~ -98

*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information

Spring of Full Kit

  F R
Spring rate N/mm(kgf/mm) 137 ( 14 ) 235 ( 24 )
Free height (mm) 170 120
Spring type Straight Straight
Recommended range to change spring rate N/mm(kgf/mm) ±20 ( 2 ) -

Specification of damper

  F R
Damping force (Rebound/Damping)N* 1687 / 696 1559 / 863
Default position of dial 20 20
Remaining damper stroke (Rebound/Damping)mm 36 / 36 16 / 29

* The value of the damping force is at piston speed of 0.1m/sec.

Setting data

  F R
Default Test Drivable limit
High *
Drivable limit
Low *
Default Test Drivable limit
High *
Drivable limit
Low *
Length of
case (mm)
354 333 374 333 253 237 253 237
Spring
Set length(mm)
166 170 166 170 118 120 118 120
Length to ride hight
adjuster (mm)
95 70 115 70 55 37 55 37
Lever ratio 1.47 1.95

* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information

  F R
Vehicle weight kg 954 700
Tire size (Air pressure) kPa 235 / 35 - 19 ( 240 ) 235 / 35 - 19 ( 240 )
Wheel size 8.5 JJ × 19 off 50 8.5 JJ × 19 off 50
+ スペーサー25mm
Alignment
(Toe/Camber)
Test data - mm / -1°48' - mm / -5°00'
Standard value 0 ± 2 mm / -0°05' ± 45′ in 2 +2 -1mm / -1°00' ± 45′

* Test data at HKS.

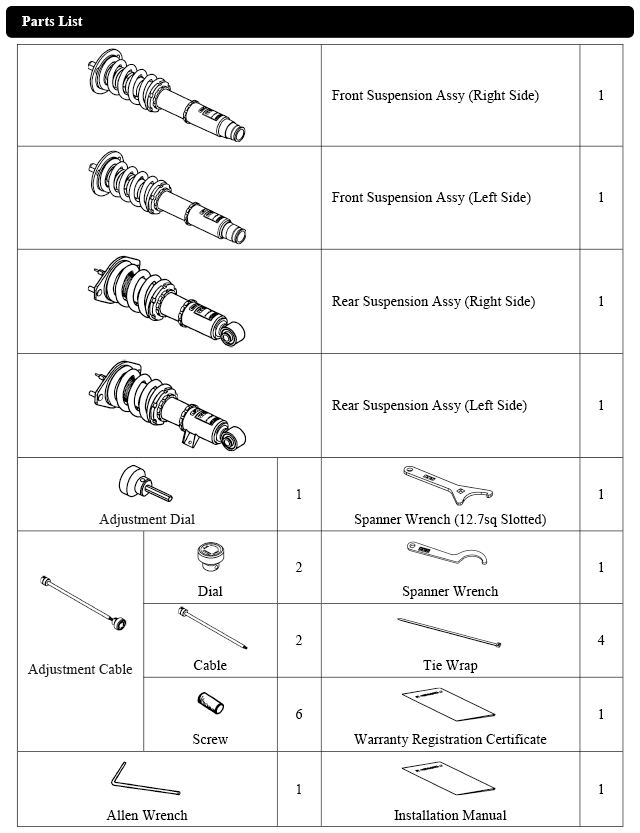

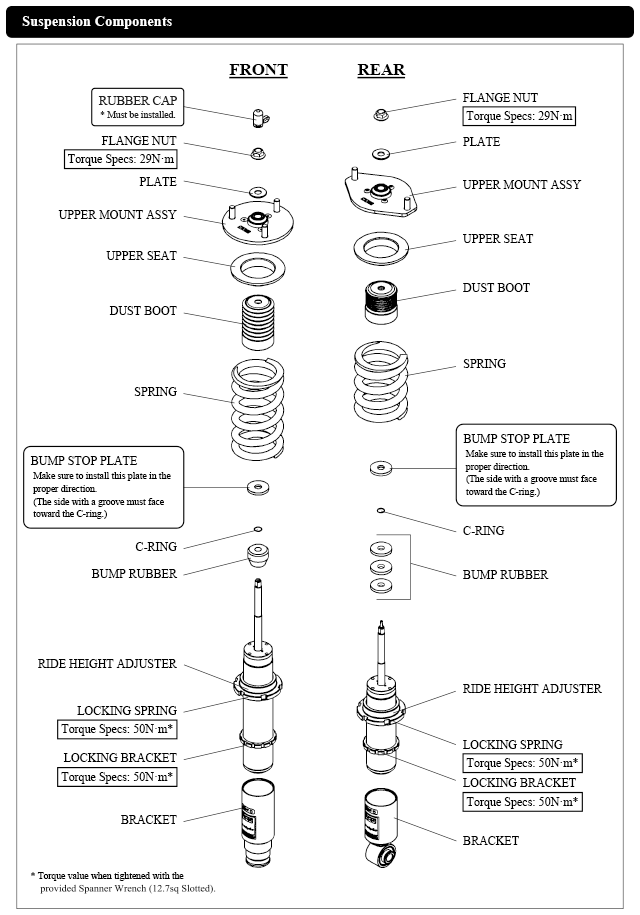

Parts List  * It may be changed without prior notice.




Point
