Code No. 80120-AH201
*Discontinued.
"Not just for lowering the vehicle height." "Super Low Stance Model" for reliable driving performance.

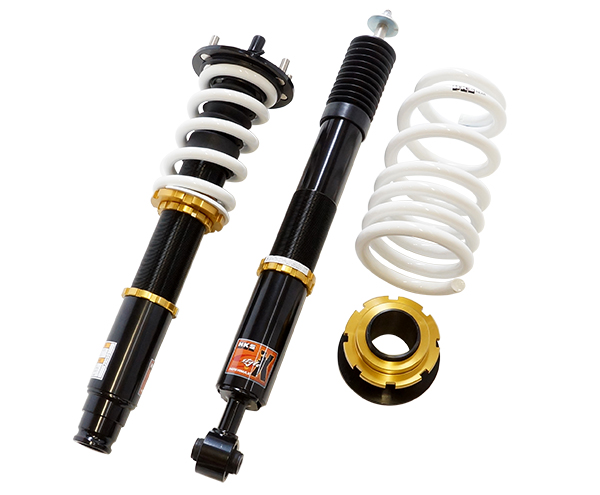

The model in the photo is RA6.
Application
| Engine | J30A |
|---|---|
| Model Year | 99/12 - 03/10 |
| Remarks | The vehicle height is the RA6's data. |
Specification
| FRONT | REAR | |
|---|---|---|
| Damping force adjustment | 30 steps | 30 steps |
| Base valve | - | - |
| Height adjustable lower bracket | ○ | ○ |
| Upper mount | Rubber | Stock |
| Inverted/Normal type | Normal | Normal |
| Damper/Spring layout | Coilover | Separated |
| Spring rate change at factory | Possible | Impossible |
| Damping force adjustment with wire | - | - |
| Helper spring (Spring rate N/mm) | - | - |
| Factory *2 | Test data | Adjustable range High - Low *3 |
Drivable range High - Low *4 |
||
|---|---|---|---|---|---|
| FRONT | Ride height *1 | 674 | 624 | 681 ～ 593 | 681 ～ 624 |
| Against stock | -48 | -98 | -41 ～ -129 | -41 ～ -98 | |
| REAR | Ride height *1 | 654 | 613 | 654 ～ 587 | 654 ～ 613 |
| Against stock | -56 | -97 | -56 ～ -123 | -56 ～ -97 | |
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.
Kit information
Spring of Full Kit
| F | R | |
|---|---|---|
| Spring rate N/mm(kgf/mm) | 137 ( 14 ) | 130 ( 13.3 ) |
| Free height (mm) | 170 | - |
| Spring type | Straight | Special shape |
| Recommended range to change spring rate N/mm(kgf/mm) | ±20 ( 2 ) | - |
Specification of damper
| F | R | |
|---|---|---|
| Damping force (Rebound/Damping)N* | 1883 / 696 | 1353 / 471 |
| Default position of dial | 20 | 20 |
| Remaining damper stroke (Rebound/Damping)mm | 37 / 35 | 61 / 38 |
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
| F | R | |||||||
|---|---|---|---|---|---|---|---|---|
| Default | Test | Drivable limit High * |
Drivable limit Low * |
Default | Test | Drivable limit High * |
Drivable limit Low * |
|
| Length of case (mm) |
349 | 322 | 354 | 322 | 411 | 405 | 430 | 405 |
| Spring Set length(mm) |
161 | 170 | 161 | 170 | - | - | - | - |
| Length to ride hight adjuster (mm) |
95 | 59 | 100 | 59 | 53 | 31 | 53 | 31 |
| Lever ratio | 1.41 | 1.86(spg) , 1.40(dmp) | ||||||
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.
Test vehicle information
| F | R | ||
|---|---|---|---|
| Vehicle weight kg | 945 (940) | 691 (670) | |
| Tire size (Air pressure) kPa | 215 / 45 - 18 ( 220 ) | 215 / 45 - 18 ( 200 ) | |
| Wheel size | 7.5 JJ × 17 off 48 | 7.5 JJ × 17 off 48 | |
| Alignment (Toe/Camber) |
Test data | 0 mm / -3°25' | - mm / -4°25' |
| Standard value | 0 ± 2 mm /-0°00' ± 1°00' | in 2 ± 2 mm / -0°30' ± 1°00' | |
* Test data at HKS.

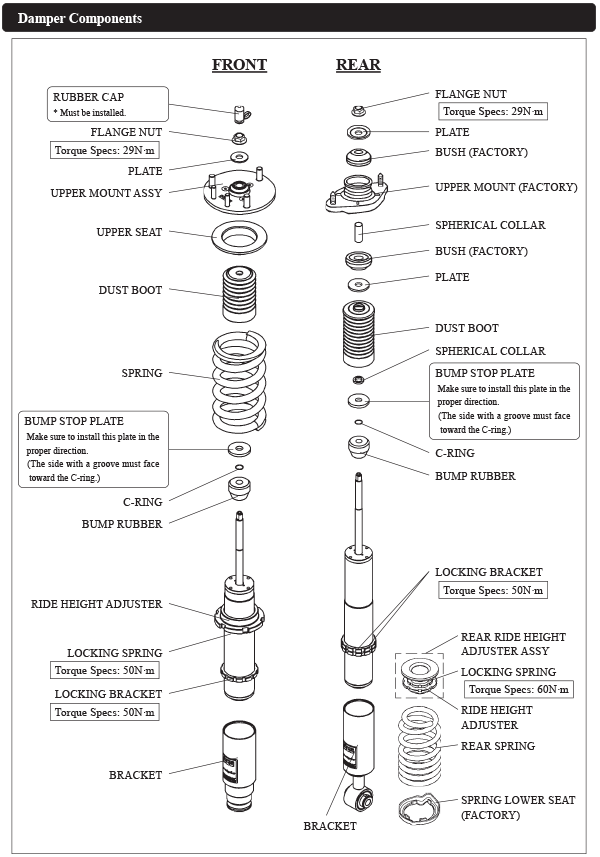

Parts List * It may be changed without prior notice.
Point
・The best driving performance, experience and comfort with S-Style.
・The S-style is well suited for Odyssey wishbone so you won’t feel the high rate and feel great, and still avoid the roll and pitching.
・Please do not modify the front case to less than 321mm because when the full-bump occurs, the upper arm will interfere with body.
・Even within the safe height, depending on the driving situation, upper arm could interfere with the body.
・Above photo shows the lowest height of rear but front can go lower.
・The value of the front damper rise is the maximum value for the spring, if you want to rise more than the maximum value please use the longer spring.
・If the rear case length is less tha 405mm, lower arm can interfere with body when full stroke.
