S-Style C
ZEST
ZEST JE1

S-Style C

Code No. 80110-AH109

*Discontinued.

Application

Engine P07A(TURBO)
Model Year 06/03 - 08/11
Remarks

Specification

  FRONT REAR
Damping force adjustment - -
Base valve - -
Height adjustable lower bracket -
Upper mount Stock Stock
Inverted/Normal type Inverted Normal
Damper/Spring layout Coilover Separated
Spring rate change at factory Possible Impossible
Damping force adjustment with wire - -
Helper spring
(Spring rate N/mm)
- -
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3
Drivable range
High - Low *4
FRONT Ride height *1 - 555 595 ~ 528 595 ~ 533
Against stock - -40 0 ~ -67 0 ~ -62
REAR Ride height *1 - 563 585 ~ 541 585 ~ 541
Against stock - -37 -15 ~ -59 -15 ~ -59

*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information

Spring of Full Kit

  F R
Spring rate N/mm(kgf/mm) 29 ( 3.0 ) 20 ( 2.0 )
Free height (mm) 250 -
Spring type Straight Barrel type 専用
Recommended range to change spring rate N/mm(kgf/mm) +10 ( 1.0 ) -

Specification of damper

  F R
Damping force (Rebound/Damping)N* 486 / 301 227 / 209
Default position of dial - -
Remaining damper stroke (Rebound/Damping)mm 59 / 45 56 / 69

* The value of the damping force is at piston speed of 0.1m/sec.

Setting data

  F R
Default Test Drivable limit
High *
Drivable limit
Low *
Default Test Drivable limit
High *
Drivable limit
Low *
Length of
case (mm)
325 325 363 325 328 328 328
Spring
Set length(mm)
237 229 229 250 - - - -
Length to ride hight
adjuster (mm)
40 48 86 27 35 54 16
Lever ratio 1.05 1.18(spg) , 0.9(dmp)

* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information

  F R
Vehicle weight kg 580 (570) 361 (340)
Tire size (Air pressure) kPa 165 / 50 - 15 ( 230 ) 165 / 50 - 15 ( 230 )
Wheel size 5 JJ × 15 off 45 5 JJ × 15 off 45
Alignment
(Toe/Camber)
Test data 0 mm / -1°05' 5 mm / -0°35'
Standard value 0 ± 3 mm / 0°00' ± 1° 0 ~ 5 mm / -1°00' ± 1°

* Test data at HKS.

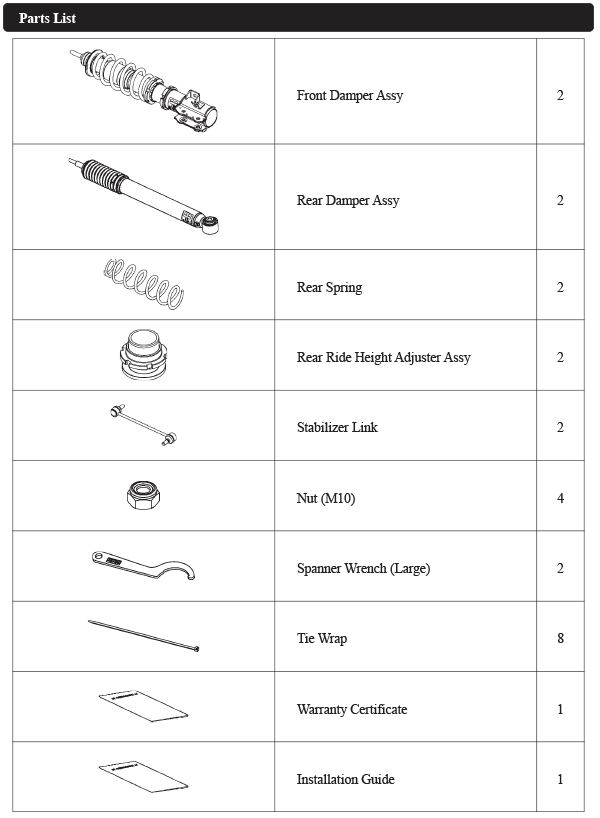

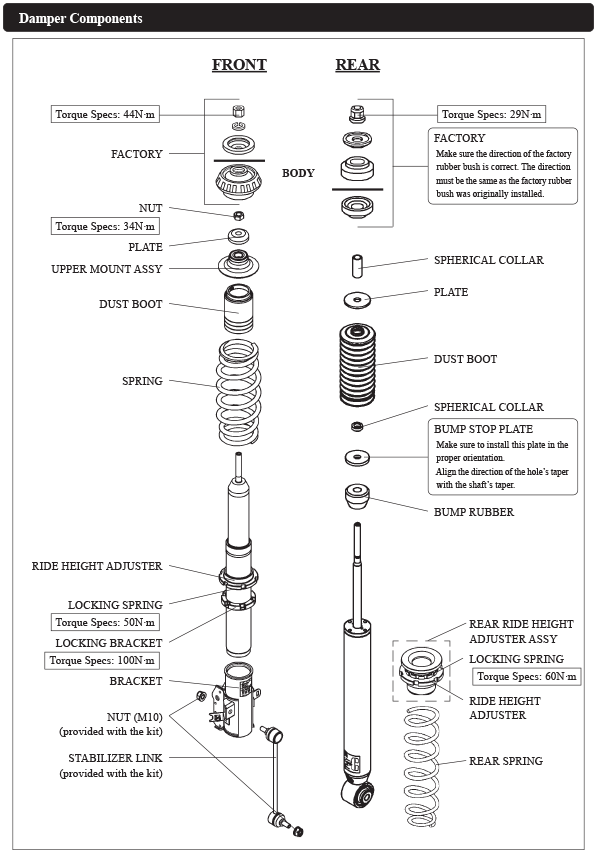

Parts List   * It may be changed without prior notice.




Point
