S-Style C
STREAM
STREAM RN8

S-Style C

Code No. 80110-AH112

*Discontinued.

Application

Engine R20A
Model Year 06/07 - 14/05
Remarks

Specification

  FRONT REAR
Damping force adjustment - -
Base valve - -
Height adjustable lower bracket
Upper mount Rubber Stock
Inverted/Normal type Inverted Normal
Damper/Spring layout Coilover Coilover
Spring rate change at factory Possible Possible
Damping force adjustment with wire - -
Helper spring
(Spring rate N/mm)
- -
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3
Drivable range
High - Low *4
FRONT Ride height *1 659 682 ~ 618 682 ~ 618
Against stock -23 0 ~ -64 0 ~ -64
REAR Ride height *1 677 702 ~ 618 702 ~ 622
Against stock -25 0 ~ -84 0 ~ -80

*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information

Spring of Full Kit

  F R
Spring rate N/mm(kgf/mm) 49 ( 5 ) 78 ( 8 )
Free height (mm) 220 170
Spring type Straight Barrel type Straight
Recommended range to change spring rate N/mm(kgf/mm) ±10 ( 1 ) -10 ( 1 )

Specification of damper

  F R
Damping force (Rebound/Damping)N* 736 / 177 422 / 186
Default position of dial - -
Remaining damper stroke (Rebound/Damping)mm 60 / 57 32 / 53

* The value of the damping force is at piston speed of 0.1m/sec.

Setting data

  F R
Default Test Drivable limit
High *
Drivable limit
Low *
Default Test Drivable limit
High *
Drivable limit
Low *
Length of
case (mm)
371 392 333 238 251 228
Spring
Set length(mm)
213 213 213 151 151 170
Length to ride hight
adjuster (mm)
38 59 0 34 47 5
Lever ratio 1.08 1.89

* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information

  F R
Vehicle weight kg - (840) - (570)
Tire size (Air pressure) kPa 205 / 55 - 17 ( 220 ) 205 / 55 - 17 ( 220 )
Wheel size 6 J × 17 off 55 6 J × 17 off 55
Alignment
(Toe/Camber)
Test data - / - - / -
Standard value 0 ± 2 mm / 0°00' ± 0°45' in 1 ~ 4 mm / -1°00' ± 1°

* Test data at HKS.

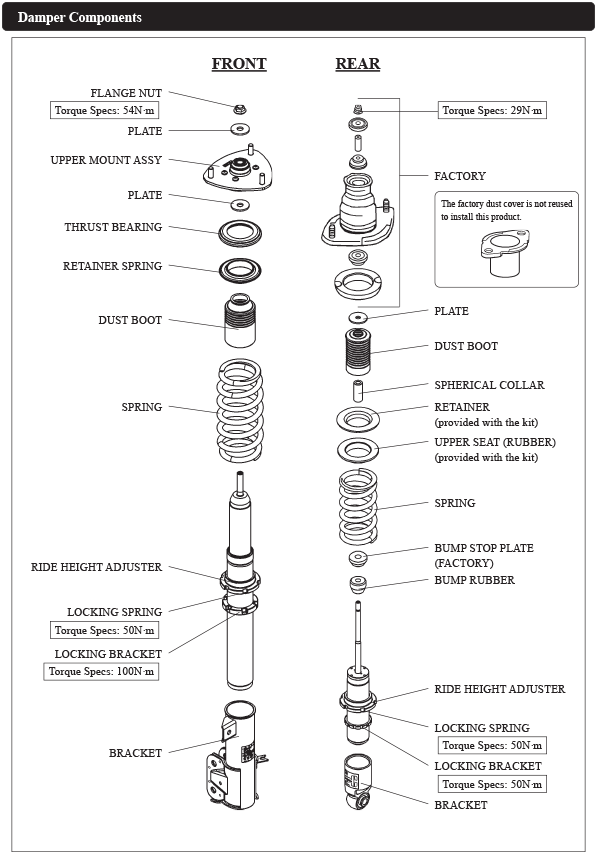

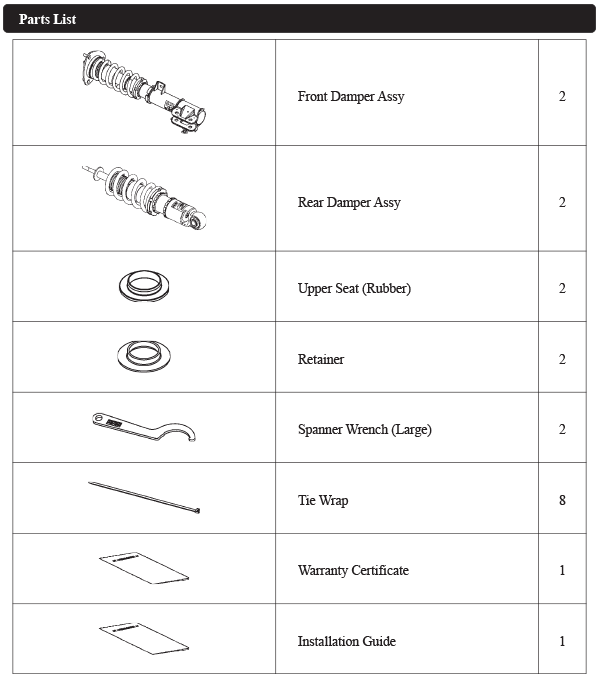

Parts List   * It may be changed without prior notice.




Point

・HKS has improved normal's upthrust and bad settlement to more flat drive feeling.
・The rear total length was unadjustable for C-Wagon but we changed it to adjustable.
・If the front case length is less than 362mm, it might interfere with tire and fender when steering.
・The vehicle height numerical value is computational for other than test.(The numbers does not guaranteeing the height)
