S-Style X
DEX
DEX M401F

S-Style X

Code No. 80120-AT214





"Not just for lowering the vehicle height." "Super Low Stance Model" for reliable driving performance.

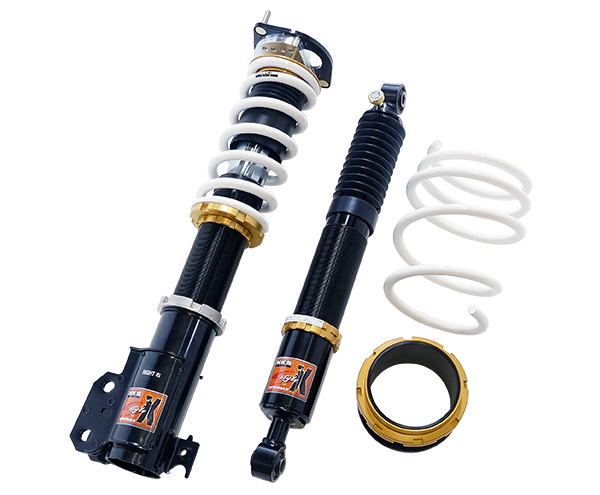

The model in the photo is QNC21.





Application

Engine K3-VE
Model Year 08/11 - 12/11
Remarks

Specification

  FRONT REAR
Damping force adjustment 30 steps 30 steps
Base valve - -
Height adjustable lower bracket
Upper mount Spherical bearing Rubber
Inverted/Normal type Inverted Normal
Damper/Spring layout Coilover Separated
Spring rate change at factory Possible Impossible
Damping force adjustment with wire - -
Helper spring
(Spring rate N/mm)
- -
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3
Drivable range
High - Low *4
FRONT Ride height *1 605 574 654 ~ 548 650 ~ 574
Against stock -49 -80 0 ~ -106 -4 ~ -80
REAR Ride height *1 576 570 576 ~ 540 576 ~ 570
Against stock -70 -76 -70 ~ -106 -70 ~ -76

*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information

Spring of Full Kit

  F R
Spring rate N/mm(kgf/mm) 59 ( 6 ) 48 ( 4.9 )
Free height (mm) 200 -
Spring type Straight Special shape
Recommended range to change spring rate N/mm(kgf/mm) +20 ( 2 ) -

Specification of damper

  F R
Damping force (Rebound/Damping)N* 476 / 211 255 / 216
Default position of dial 20 20
Remaining damper stroke (Rebound/Damping)mm 45 / 54 46 / 68

* The value of the damping force is at piston speed of 0.1m/sec.

Setting data

  F R
Default Test Drivable limit
High *
Drivable limit
Low *
Default Test Drivable limit
High *
Drivable limit
Low *
Length of
case (mm)
318 296 350 296 289 284 289 284
Spring
Set length(mm)
195 200 184 200 - - - -
Length to ride hight
adjuster (mm)
92 65 135 65 47 42 47 42
Lever ratio 1.05 1.16 (spg) , 0.89 (dmp)

* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information

  F R
Vehicle weight kg 680 425
Tire size (Air pressure) kPa 185 / 55 - 15 ( 200 ) 185 / 55 - 15 ( 200 )
Wheel size 6.0 JJ × 15 off 40 6.0 JJ × 15 off 40
Alignment
(Toe/Camber)
Test data 0 mm / -1°20' 3 mm / -1°12'
Standard value in 0 ± 1 mm / - 0°00' ± 45' in 3 ± 3 mm / - 0°45'± 45'

* Test data at HKS.

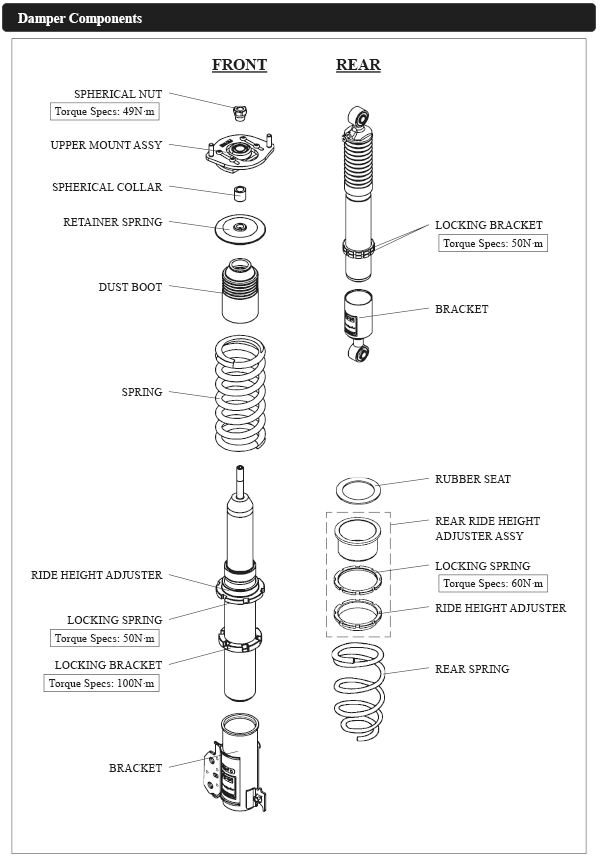

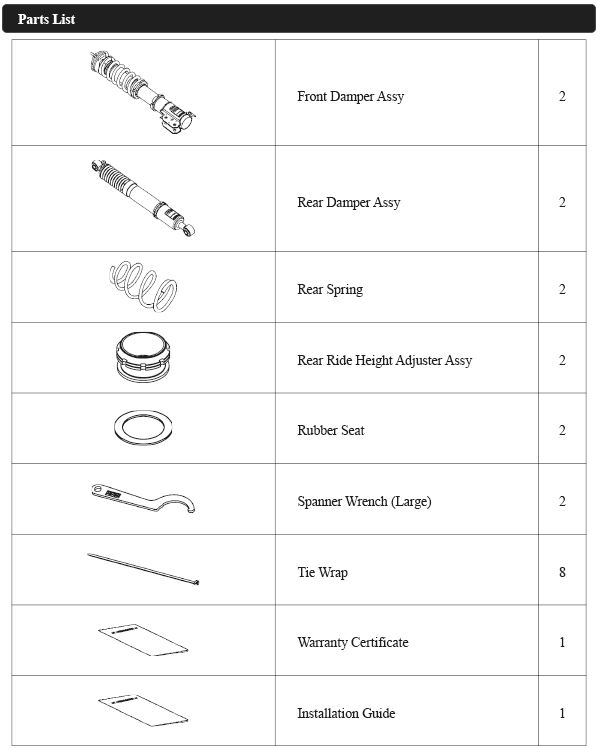

Parts List  * It may be changed without prior notice.




Point
