"Not just for lowering the vehicle height." "Super Low Stance Model" for reliable driving performance.

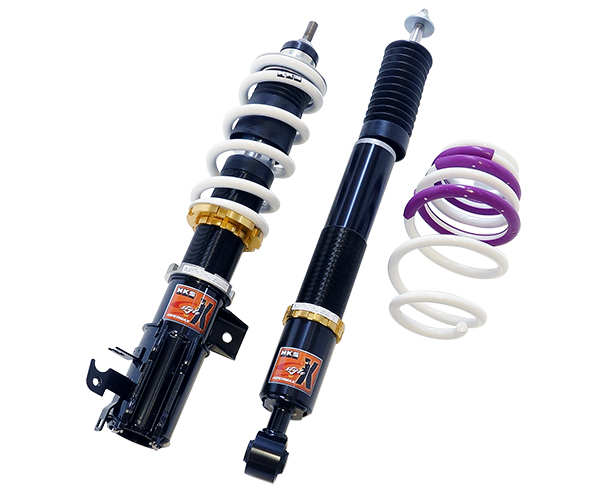

The model in the photo is ZE2.
Application
| Engine | LEA-MF6 |
|---|---|
| Model Year | 11/11 - 14/03 |
| Remarks | The vehicle height data is of ZE2. |
Specification
| FRONT | REAR | |
|---|---|---|
| Damping force adjustment | 30 steps | 30 steps |
| Base valve | - | - |
| Height adjustable lower bracket | ○ | ○ |
| Upper mount | Stock | Stock |
| Inverted/Normal type | Inverted | Normal |
| Damper/Spring layout | Coilover | Separated |
| Spring rate change at factory | Possible | Impossible |
| Damping force adjustment with wire | - | - |
| Helper spring (Spring rate N/mm) | - | - |
| Factory *2 | Test data | Adjustable range High - Low *3 |
Drivable range High - Low *4 |
||
|---|---|---|---|---|---|
| FRONT | Ride height *1 | 603 | 588 | 654 ～ 548 | 654 ～ 572 |
| Against stock | -51 | -66 | 0 ～ -106 | 0 ～ -82 | |
| REAR | Ride height *1 | 597 | 585 | 609 ～ 558 | 609 ～ 558 |
| Against stock | -69 | -81 | -57 ～ -107 | -57 ～ -107 | |
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.
Kit information
Spring of Full Kit
| F | R | |
|---|---|---|
| Spring rate N/mm(kgf/mm) | 69 (7.0) | 49 (5.0) |
| Free height (mm) | 200 | - |
| Spring type | Straight | Special shape |
| Recommended range to change spring rate N/mm(kgf/mm) | － | - |
Specification of damper
| F | R | |
|---|---|---|
| Damping force (Rebound/Damping)N* | 961/343 | 461 / 235 |
| Default position of dial | - | - |
| Remaining damper stroke (Rebound/Damping)mm | 35 / 64 | 56 / 80 |
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
| F | R | |||||||
|---|---|---|---|---|---|---|---|---|
| Default | Test | Drivable limit High * |
Drivable limit Low * |
Default | Test | Drivable limit High * |
Drivable limit Low * |
|
| Length of case (mm) |
308 | 293 | 348 | 285 | 370 | 370 | 376 | 340 |
| Spring Set length(mm) |
195 | 195 | 190 | 200 | - | - | - | - |
| Length to ride hight adjuster (mm) |
50 | 35 | 90 | 22 | 50 | 40 | 60 | 18 |
| Lever ratio | 1.12 | 1.19(spg) , 0.94(dmp) | ||||||
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.
Test vehicle information
| F | R | ||
|---|---|---|---|
| Vehicle weight kg | 725 (720) | 486 (480) | |
| Tire size (Air pressure) kPa | 205 / 45 - 17 ( 240 ) | 205 / 45 - 17 ( 240 ) | |
| Wheel size | 7.0 J × 17 off | 7.0 J × 17 off | |
| Alignment (Toe/Camber) |
Test data | 0 mm / -1°30' | in 1.8 mm / -1°00' |
| Standard value | 0 ± 3 mm / 0°00' ± 1 ° | 2 +3 -2 mm / -1°00' ± 1 ° | |
* Test data at HKS.

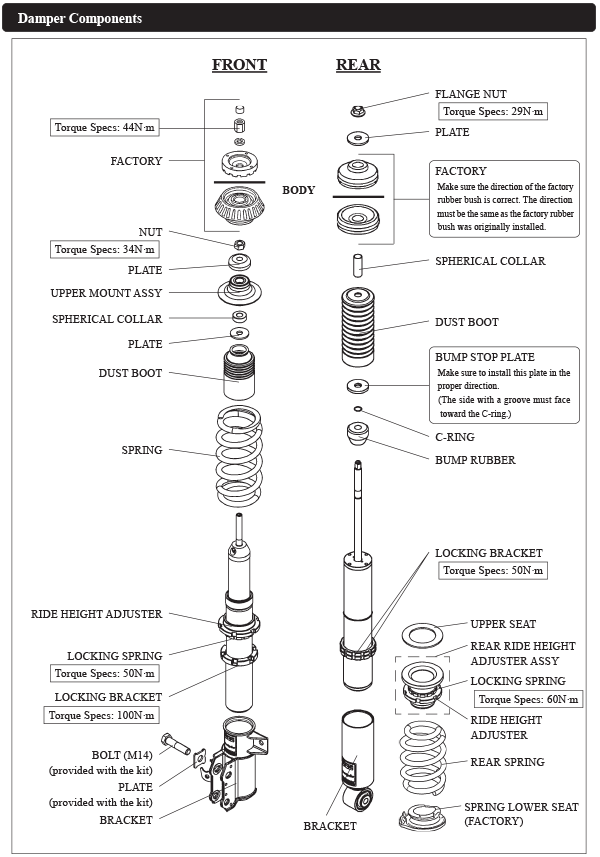

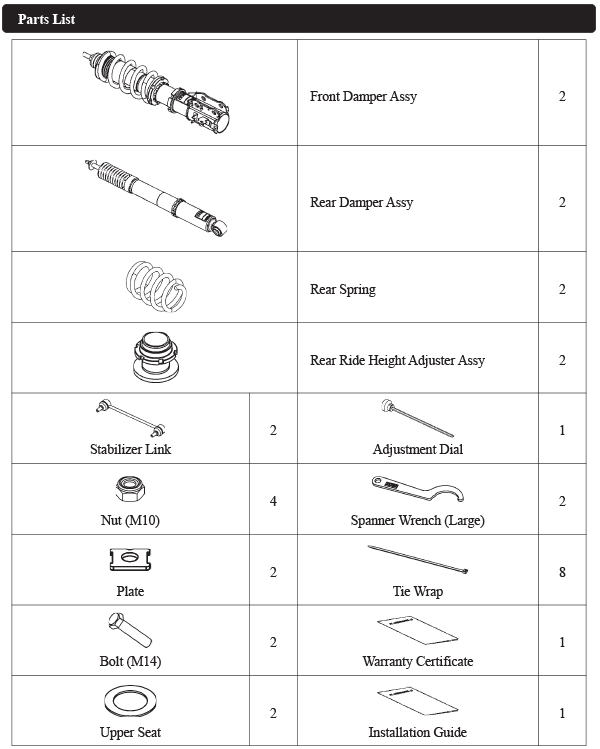

Parts List * It may be changed without prior notice.
Point
・This is a serious low-down damper kit for serious dress-up users.
・We set it a little harder to prevent from interfering the aero parts with ground.
・If you make the front case width less than 285mm, the body and the drive shaft will interfere with each other at a full stroke.
・Do not modify the rear case width less than 340mm or the brake hose and the frame will interfere with each other at a full stroke.
・Even for the test vehicle height, the front inner fender and tire could interfere with each other depending on the situation.(need inner modification)
