S-Style X
FIT
FIT GP1

S-Style X

Code No. 80120-AH206





"Not just for lowering the vehicle height." "Super Low Stance Model" for reliable driving performance.





The model in the photo is GE8.





Application

Engine LDA-MF6
Model Year 10/10 - 13/08
Remarks

Specification

  FRONT REAR
Damping force adjustment 30 steps 30 steps
Base valve - -
Height adjustable lower bracket
Upper mount Stock Stock
Inverted/Normal type Inverted Normal
Damper/Spring layout Coilover Separated
Spring rate change at factory Possible Impossible
Damping force adjustment with wire - -
Helper spring
(Spring rate N/mm)
- -
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3
Drivable range
High - Low *4
FRONT Ride height *1 620 585 651 ~ 565 651 ~ 572
Against stock -31 -66 0 ~ -86 0 ~ -79
REAR Ride height *1 608 570 620 ~ 550 608 ~ 570
Against stock -54 -92 -42 ~ -112 -54 ~ -92

*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information

Spring of Full Kit

  F R
Spring rate N/mm(kgf/mm) 58.8 ( 6.0 ) 39.2 ( 4.0 )
Free height (mm) 200 -
Spring type Straight Special shape
Recommended range to change spring rate N/mm(kgf/mm) ±10(1) -

Specification of damper

  F R
Damping force (Rebound/Damping)N* 941 / 235 412 / 127
Default position of dial 20 20
Remaining damper stroke (Rebound/Damping)mm 46 / 41 38 / 61

* The value of the damping force is at piston speed of 0.1m/sec.

Setting data

  F R
Default Test Drivable limit
High *
Drivable limit
Low *
Default Test Drivable limit
High *
Drivable limit
Low *
Length of
case (mm)
330 305 347 293 376 340 376 340
Spring
Set length(mm)
195 200 185 200 - - - -
Length to ride hight
adjuster (mm)
60 30 87 18 50 20 50 20
Lever ratio 1.15 1.25(spg) , 1.00(dmp)

* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information

  F R
Vehicle weight kg 715 423
Tire size (Air pressure) kPa 175 / 65 - 15 ( 230 ) 175 / 65 - 15 ( 220 )
Wheel size 5.5 J × 15 inset +45 5.5 J × 15 inset +45
Alignment
(Toe/Camber)
Test data 0 mm / -2°30' in 5 mm / -1°00'
Standard value 0 ± 3 mm / 0°00' ± 1° 2 +2 -1 mm / -1°00' ± 1°

* Test data at HKS.

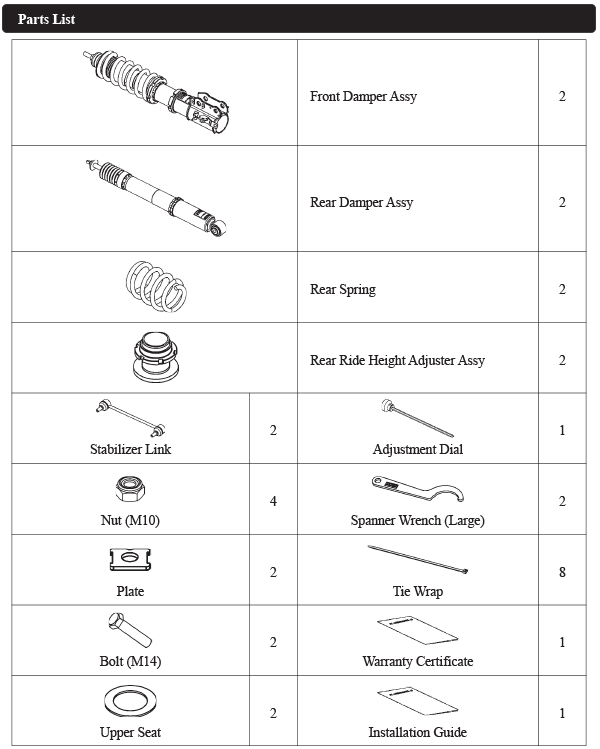

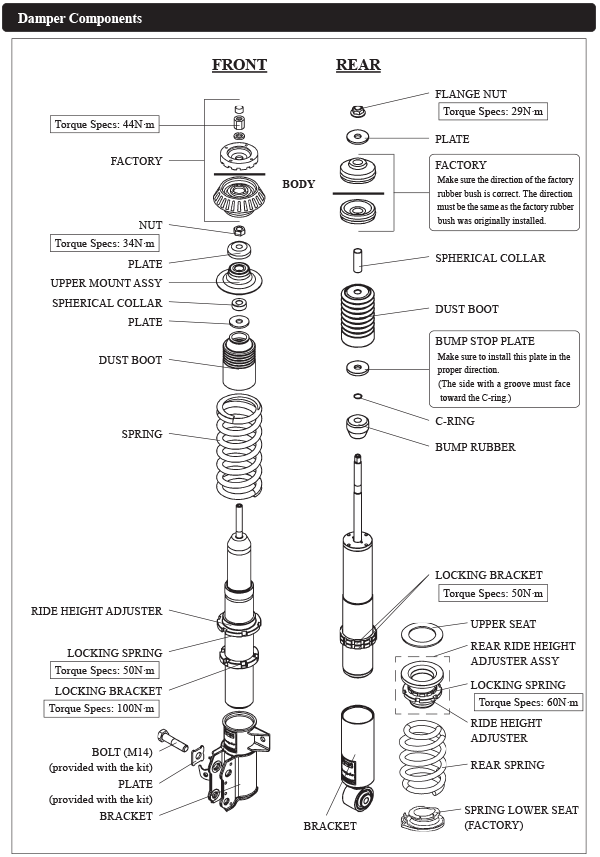

Parts List  * It may be changed without prior notice.




Point

・This is a serious low-down damper kit for serious dress-up users.



・Even with the testing vehicle height, depending on the driving situation, front inner fender and tire could interfere each other. (Need an inner modification.)
・The lowest value is the value of the straight up spring without the rear adjuster
・The vehicle height data from other than the test is computational data.(The numbers does not guaranteeing the height)
