Code No. 80120-AT216
"Not just for lowering the vehicle height." "Super Low Stance Model" for reliable driving performance.

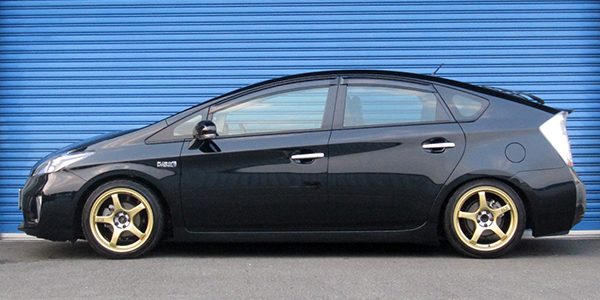

The model in the photo is ZVW35.
Application
| Engine | 2ZR-FXE(2ZR-3JM) |
|---|---|
| Model Year | 12/01 - 17/01 |
| Remarks | The factory setting is same as ZVW30. So there is not enough ground clearance height. |
Specification
| FRONT | REAR | |
|---|---|---|
| Damping force adjustment | 30 steps | 30 steps |
| Base valve | - | - |
| Height adjustable lower bracket | ○ | ○ |
| Upper mount | Spherical bearing | Stock |
| Inverted/Normal type | Inverted | Normal |
| Damper/Spring layout | Coilover | Separated |
| Spring rate change at factory | Possible | Impossible |
| Damping force adjustment with wire | - | - |
| Helper spring (Spring rate N/mm) | - | - |
| Factory *2 | Test data | Adjustable range High - Low *3 |
Drivable range High - Low *4 |
||
|---|---|---|---|---|---|
| FRONT | Ride height *1 | 631 | 641 | 648 ～ 609 | 648 ～ 609 |
| Against stock | -47 | -37 | -30 ～ -69 | -30 ～ -69 | |
| REAR | Ride height *1 | 596 | 614 | 616 ～ 563 | 616 ～ 571 |
| Against stock | -96 | -79 | -77 ～ -130 | -77 ～ -122 | |
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.
Kit information
Spring of Full Kit
| F | R | |
|---|---|---|
| Spring rate N/mm(kgf/mm) | 58 ( 6 ) | 38 ( 4 ) |
| Free height (mm) | 200 | - |
| Spring type | Straight | Special shape |
| Recommended range to change spring rate N/mm(kgf/mm) | ±10 ( 1 ) | - |
Specification of damper
| F | R | |
|---|---|---|
| Damping force (Rebound/Damping)N* | 765 / 186 | 588 / 127 |
| Default position of dial | 20 | 20 |
| Remaining damper stroke (Rebound/Damping)mm | 57 / 56 | 57 / 79 |
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
| F | R | |||||||
|---|---|---|---|---|---|---|---|---|
| Default | Test | Drivable limit High * |
Drivable limit Low * |
Default | Test | Drivable limit High * |
Drivable limit Low * |
|
| Length of case (mm) |
287 | 297 | 304 | 265 | 343 | 343 | 346 | 335 |
| Spring Set length(mm) |
197 | ← | ← | ← | - | - | - | - |
| Length to ride hight adjuster (mm) |
35 | 45 | 52 | 13 | 28 | 43 | 45 | 7 ※5 |
| Lever ratio | 1.00 | 1.20(spg) , 0.92(dmp) | ||||||
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.
※5. Direct installation to the rubber for only ride height (removed adjuster and lock nut).
Test vehicle information
| F | R | ||
|---|---|---|---|
| Vehicle weight kg | 853 (830) | 583 (590) | |
| Tire size (Air pressure) kPa | 215 / 45 - 17 ( 250 ) | 215 / 45 - 17 ( 230 ) | |
| Wheel size | 7 JJ × 17 off 43 | 7 JJ × 17 off 43 | |
| Alignment (Toe/Camber) |
Test data | in 0 mm / -1°00' | in 7 mm / -1°12' |
| Standard value | in 2 ± 2 mm / -0°15' ± 45' | in 2 ± 3 mm / -1°30' ± 30' | |
* Test data at HKS.
Parts List * It may be changed without prior notice.
Point
・The main concept is the style. It has a good low-down to super low-down. Both front and rear are the height adjustable lower bracket type which can have free height setting.
・It has more comfort ride than the S-Style. We have set it for everyday use with comfort drive. It can be adjusted to a stiff setting of the damping force. If you want more stiffness, try 1kUP for S/P of the front.
* If you make the front case length shorter than specified limit, the stabilizer will interfere with member.
* If you make the rear case length shorter than specified limit, the ABS harness or brake hose will interfere with frame.
* Please adjust 5 dials to the negative side from the factory chamber setting. If you set over 5 dials, the body will interfere with bracket.
●About modification for installation.
Need to cut off the rear stock dust boot.
