G
SKYLINE GT-R
Explanation of the product Application chart
SKYLINE GT-R BNR32

G

Code No. 80260-AN001





~ For Obsession with High Quality ~
Integration of quality over cost principles of turning parts and benefits and compatibility gained from OEM design.










for SKYLINE GT-R BNR32

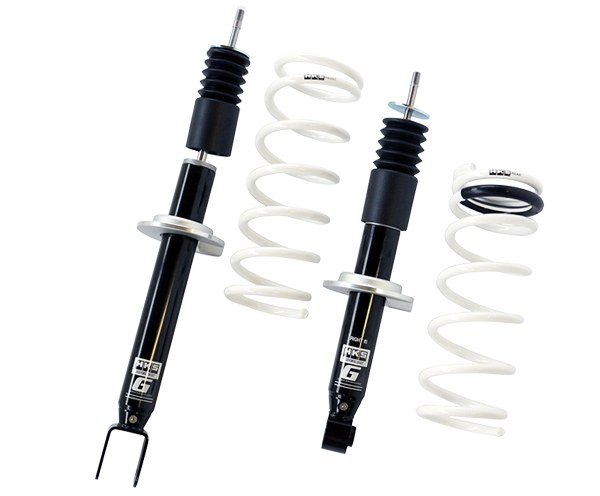

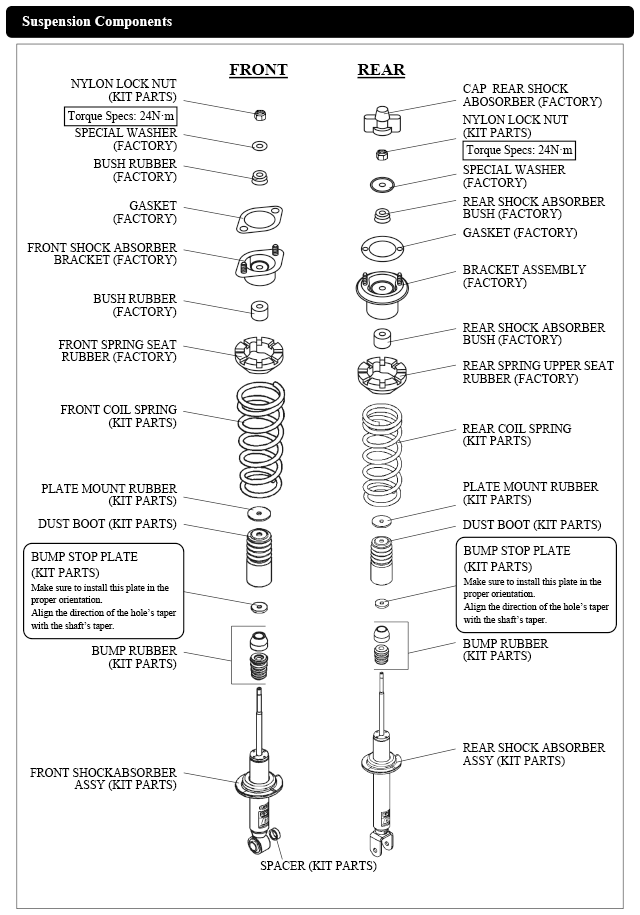

＜Product Basic Structure＞
●Single Tube Damper Assembly
●Special Low-down Style Spring
※The stock upper mounts are used.





■Features

  • Utilizing the stock suspension structure for Hipermax G series provides a better durability and ride quality than its original even after lowering vehicle’s height.
  • It is developed to have reliable riding and handing performance in both street and winding roads.
  • The main spring rate is set low, and by using the bumper rubber effectively, it is able to suppress the upthrusting and rolling feeling moderately.

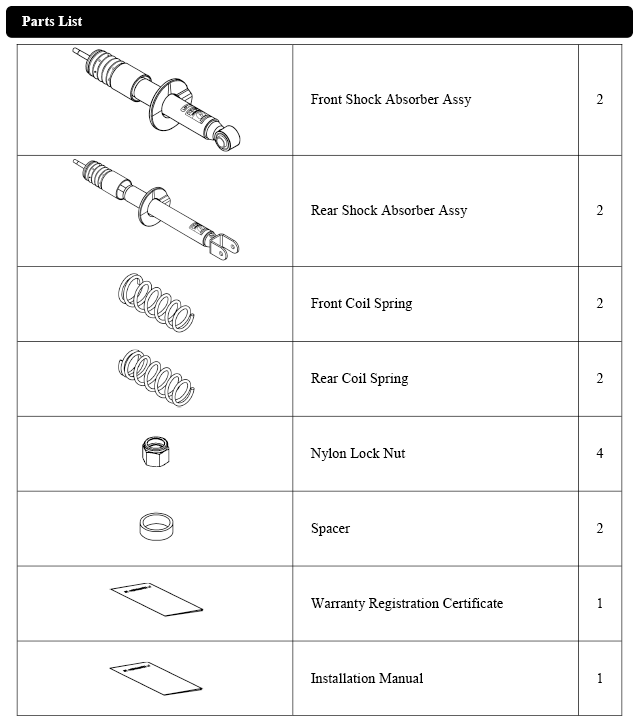

■Kit Parts





Vehicle Model Engine Model Year Series Full Kit Spring Rate F/R Free Height Damping Force Piston Speed 0.1m/sec Damping Force N Vehicle Height (Highest - Lowest) Code No. Manual Remarks
F: Rebound/Compression R: Rebound/Compression
SKYLINE GT-R BNR32 RB26DETT 89/08 -94/12 G F=35(3.6)/R=37(3.7) Special/Special 314/157 402/98 -36 -19 80260-AN001 Make to order item
