G
ESTIMA
ESTIMA ACR50W

G

Code No. 80260-AT009





~ For Obsession with High Quality ~
Integration of quality over cost principles of turning parts and benefits and compatibility gained from OEM design.

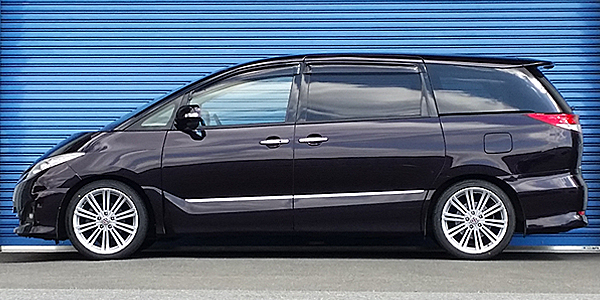

for ESTIMA (GSR50W/ACR50W)



<Product Basic Structure>
●Single Tube Damper Assembly
●Special Low-down Style Spring
※The stock upper mounts are used.





■Features

  • Utilizing its advantage as a stock suspension structure and long stroke shaft enable to provide stable and supple driving even after lowering vehicle’s height.
  • The spring rate is reduced to improve stock's rough driving feeling and upgrade it to high quality.
  • This product improves the performance at cornering and reduce the instability and unnecessary movement.





■Kit Parts





Vehicle Model Engine Model Year Series Full Kit Spring Rate F/R Free Height Damping Force Piston Speed 0.1m/sec Damping Force N Vehicle Height (Highest - Lowest) Code No. Manual Remarks
F: Rebound/Compression R: Rebound/Compression
ESTIMA ACR50W 2AZ-FE 06/01 -19/10 G F=29(3)/R=72(7.3) Special/Special 284/98 432/127 -26 -27 80260-AT009 Make to order item
For 2WD. Not compatible with 4WD and hybrid model.
