G
LEVORG
LEVORG VM4

G

Code No. 80260-AF003





~ For Obsession with High Quality ~
Integration of quality over cost principles of turning parts and benefits and compatibility gained from OEM design.










for LEVORG (VMG/VM4)

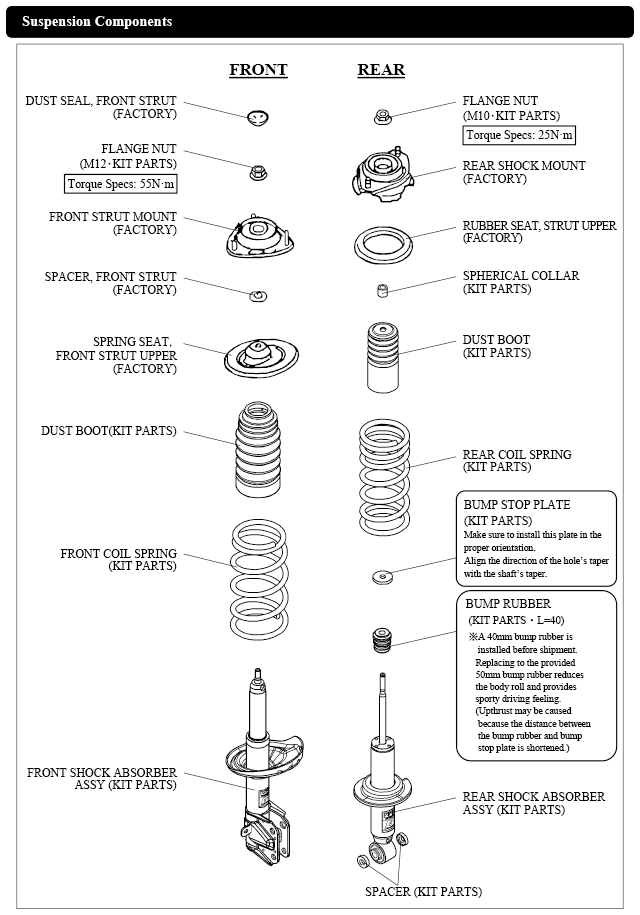

<Product Basic Structure>
●Single Tube Damper Assembly
●Special Low-down Style Spring
※The stock upper mounts are used.





■Features

  • Stock damper’s long stroke and front offset springs are utilized to deliver better ride performance.
    Similarly to Hipermax series, the front inverted damper delivers higher rigidity.
    The vehicle height is lowered casually to addresses the ease of driving and usability in daily use even with the optional aero parts.

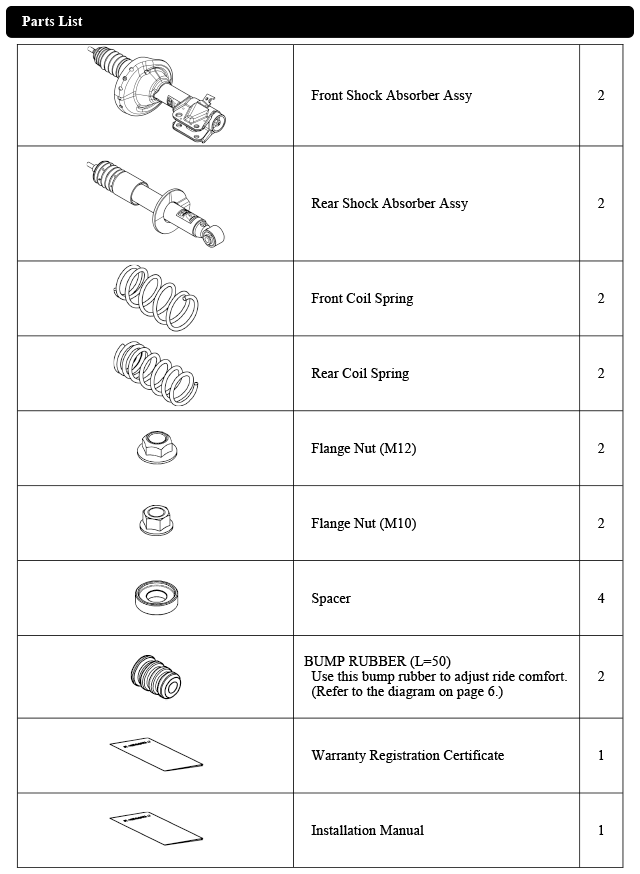

■Kit Parts





Vehicle Model Engine Model Year Series Full Kit Spring Rate F/R Free Height Damping Force Piston Speed 0.1m/sec Damping Force N Vehicle Height (Highest - Lowest) Code No. Manual Remarks
F: Rebound/Compression R: Rebound/Compression
LEVORG VM4 FB16(TURBO) 14/06 -20/10 G F=49(5)/R=52.4(5.4) Special/Special 726/226 363/206 -5 -4 80260-AF003 Replacing the rear bump rubber with the provided 50mm bump rubber reduces the body roll and delivers sporty driving performance. Select per your preference.
