G
WRX STI
Explanation of the product Application chart
WRX STI VAB

G

Code No. 80260-AF001





~ For Obsession with High Quality ~
Integration of quality over cost principles of turning parts and benefits and compatibility gained from OEM design.










for WRX STI (VAB)

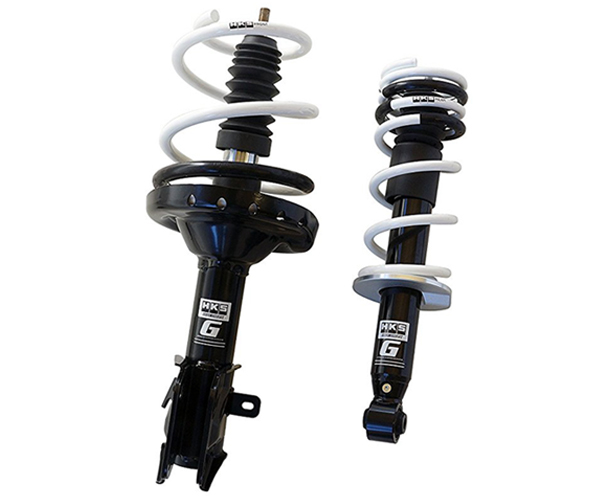

＜Product Basic Structure＞
●Single Tube Damper Assembly
●Special Low-down Style Spring
※The stock upper mounts are used.





■Features

  • Utilizing the stock suspension structure for Hipermax G series provides a better durability and ride quality than its original even after lowering vehicle’s height.
  • The front inverted mono tube dampers of the stock VAB design delivers high rigidity and reliable handling performance.
  • Handling performance and ride comfort are balanced in a high dimension. Setting was performed to avoid excessive sportiness for better ride quality. The vehicle height is set to a modest level for "mature" tuning without being too assertive.

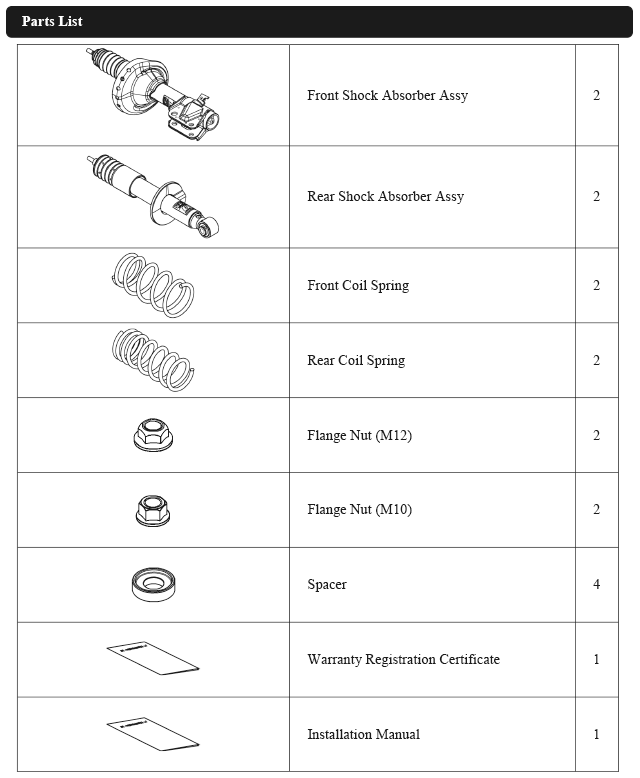

■Kit Parts





Vehicle Model Engine Model Year Series Full Kit Spring Rate F/R Free Height Damping Force Piston Speed 0.1m/sec Damping Force N Vehicle Height (Highest - Lowest) Code No. Manual Remarks
F: Rebound/Compression R: Rebound/Compression
WRX STI VAB EJ20(TURBO) 14/08 -20/04 G F=53(5.4)/R=62(6.3) Special/Special 824/275 363/216 -13 -10 80260-AF001 Make to order item
