S-style L 2018 ESTIMA
Explanation of the product Application chart

ESTIMA AHR20W
S-style L 2018 Code No. 80130-AT203




▲The above photo is an item for GGH30W.

Pre-load Valve System & M4P Deliver Ultimate Elasticity Ideal for "Low-stance Enthusiasts"



Application   Specification
Engine 2AZ-FXE(2AZ-2JM)
Model Year 06/06 - 19/10
Remarks

  FRONT REAR
Damping force adjustment 30 steps 30 steps
Base valve - -
Height adjustable lower bracket
Upper mount Rubber Stock
Inverted/Normal type Inverted Normal
Damper/Spring layout Coilover Separated
Spring rate change at factory Possible Impossible
Damping force adjustment with wire - -
Helper spring
(Spring rate N/mm)
- -


Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3
Drivable range
High - Low *4
FRONT Ride height *1 681 716 ~ 653 716 ~ 653
Against stock -35 0 ~ -63 0 ~ -63
REAR Ride height *1 691 711 ~ 654 711 ~ 654
Against stock -31 -11 ~ -68 -11 ~ -68
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information
Spring of Full Kit
  F R
Spring rate N/mm(kgf/mm) 49 (5) 72 (7.3)
Free height (mm) 250 -
Spring type Straight Barrel type Special shape
Recommended range to change spring rate N/mm(kgf/mm) ±9.8 (1) -
Specification of damper
  F R
Damping force (Rebound/Damping)N* 500 / 216 402 / 127
Default position of dial 15段 15段
Remaining damper stroke (Rebound/Damping)mm 80 / 56 80 / 89
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
  F R
Default Test Drivable limit
High *
Drivable limit
Low *
Default Test Drivable limit
High *
Drivable limit
Low *
Length of
case (mm)
352 383 331 376 383 355
Spring
Set length(mm)
248 247 253 - - - -
Length to ride hight
adjuster (mm)
47 79 21 40 53 16
Lever ratio 1.08 1.54(spg) , 0.89(dmp)
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.


Test vehicle information
  F R
Vehicle weight kg 998.5 769.5
Tire size (Air pressure) kPa 225/ 40 - 19 ( 240 ) 225 / 40 - 19 ( 240 )
Wheel size 8 JJ × 19 8 JJ × 19
Alignment
(Toe/Camber)
Test data IN 1mm / -0°24’ IN 4mm / -1°24’
Standard value IN 1 ± 2 mm / -0°15' ± 45' IN 4 ± 2 mm / -1°20'
* Test data at HKS.

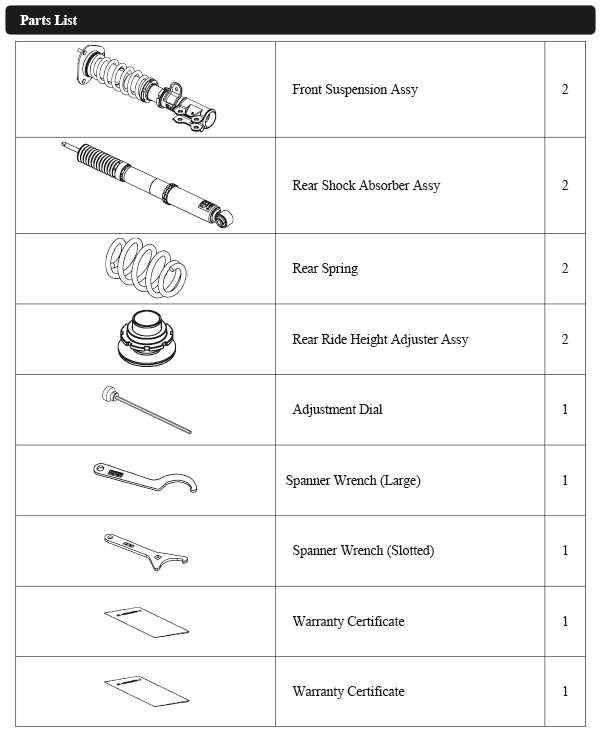

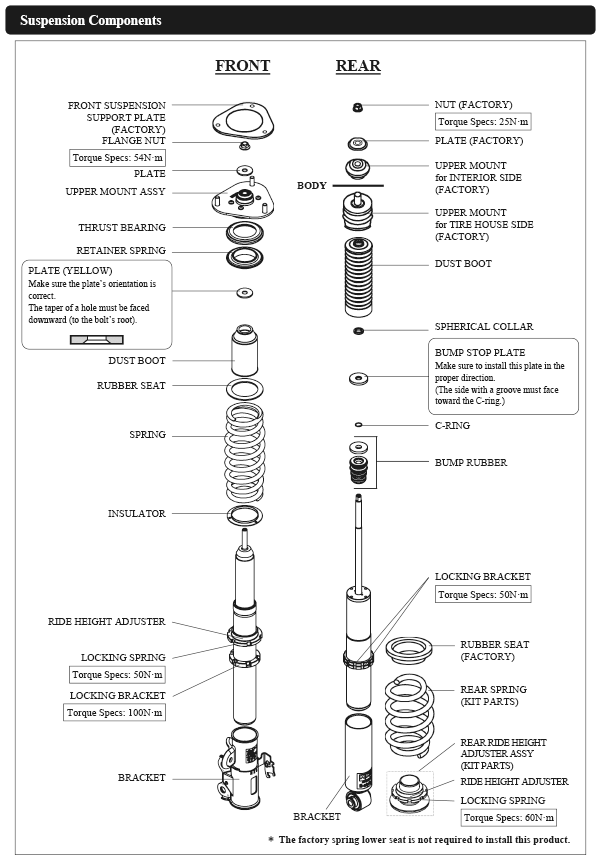

Parts List * It may be changed without prior notice.
