S-style L
JUKE
JUKE YF15

S-style  L

Code No. 80130-AN205

*Discontinued.

Pre-load Valve System & M4P Deliver Ultimate Elasticity Ideal for "Low-stance Enthusiasts"

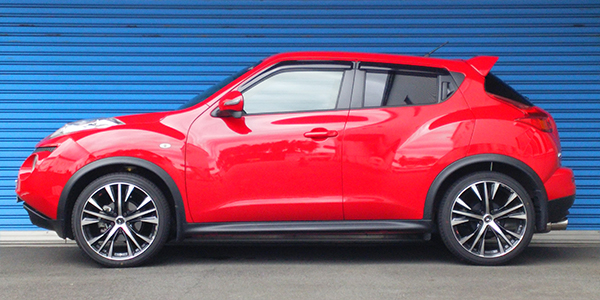

The model in the photo is YF15.





Application

Engine HR15DE
Model Year 10/06 - 20/06
Remarks NA FF

Specification

  FRONT REAR
Damping force adjustment 30 steps 30 steps
Base valve - -
Height adjustable lower bracket
Upper mount Rubber Stock
Inverted/Normal type Inverted Normal
Damper/Spring layout Coilover Separated
Spring rate change at factory Possible Impossible
Damping force adjustment with wire - -
Helper spring
(Spring rate N/mm)
- -
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3
Drivable range
High - Low *4
FRONT Ride height *1 690 725 ~ 664 725 ~ 664
Against stock -35 0 ~ -58 0 ~ -58
REAR Ride height *1 698 733 ~ 682 733 ~ 682
Against stock -35 0 ~ -51 0 ~ -51

*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information

Spring of Full Kit

  F R
Spring rate N/mm(kgf/mm) 39 ( 4.0 ) 42 ( 4.3 )
Free height (mm) 250 -
Spring type Straight Barrel type Special shape
Recommended range to change spring rate N/mm(kgf/mm) +1 ( 1 ) -

Specification of damper

  F R
Damping force (Rebound/Damping)N* 363 / 157 177 / 108
Default position of dial 15 15
Remaining damper stroke (Rebound/Damping)mm 53 / 73 59 / 110

* The value of the damping force is at piston speed of 0.1m/sec.

Setting data

  F R
Default Test Drivable limit
High *
Drivable limit
Low *
Default Test Drivable limit
High *
Drivable limit
Low *
Length of
case (mm)
344 379 340 460 493 443
Spring
Set length(mm)
224 224 243 - - - -
Length to ride hight
adjuster (mm)
23 58 0 29 54 16
Lever ratio 1.00 1.20(spg) , 0.90(dmp)

* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information

  F R
Vehicle weight kg - (760) - (440)
Tire size (Air pressure) kPa 225 / 40 - 19 ( 250 ) 225 / 40 - 19 ( 230 )
Wheel size 8.0 J × 19 8.0 J × 19
Alignment
(Toe/Camber)
Test data in 1 mm / -0°30' in 2.9 mm / -1°12'
Standard value in 3 mm in 1 mm / -0°25' ± 0°45' in 8.2 mm in 0.2 mm / -1°33' ± 0°30'

* Test data at HKS.

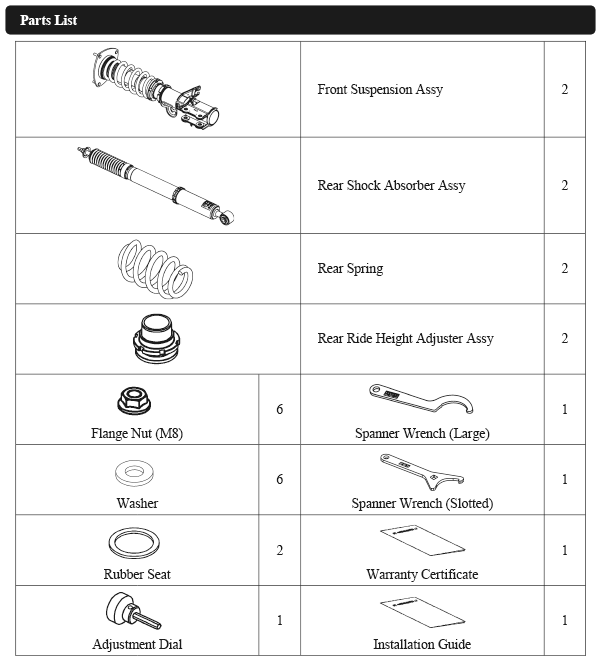

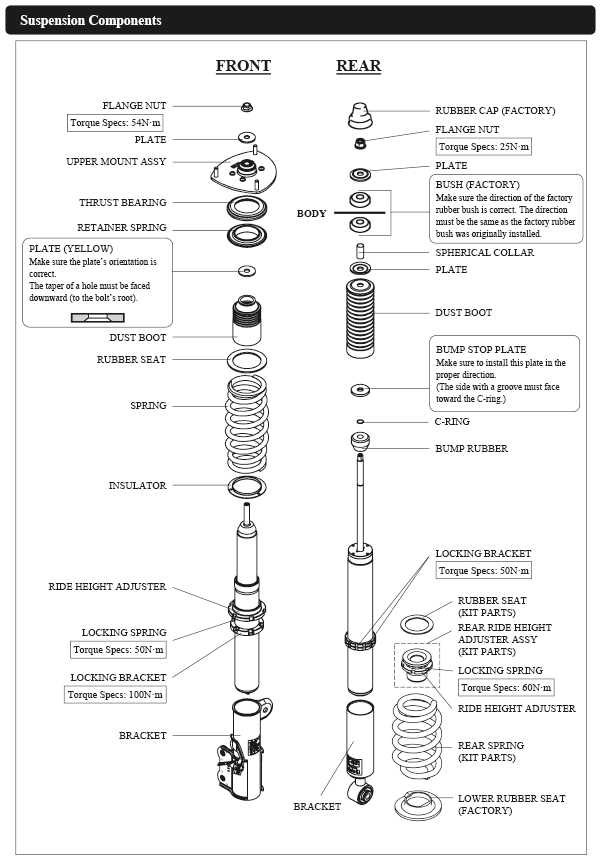

Parts List  * It may be changed without prior notice.




Point

While the stock damping setting provides good response, but its spring rate setting caused excessive vehicle body roll and uncomfortably.
S-style L improves the anti-roll performance to overcome the weak point of the stock setup and provide supple motion with comfortable ride.
To match with the characteristics of SUV, a long stroke shaft is utilized to focus on maintaining contact between the tire and road surface.











[ CLOSE ]





HKS
