S-style L 2018 PRIUS PHV
Explanation of the product Application chart

PRIUS PHV ZVW35
S-style L 2018 Code No. 80130-AT206




▲The above photo is an item for ZVW30.

Pre-load Valve System & M4P Deliver Ultimate Elasticity Ideal for "Low-stance Enthusiasts"



Application   Specification
Engine 2ZR-FXE(2ZR-3JM)
Model Year 12/01 - 17/01
Remarks

  FRONT REAR
Damping force adjustment 30 steps 30 steps
Base valve - -
Height adjustable lower bracket
Upper mount Rubber Stock
Inverted/Normal type Inverted Normal
Damper/Spring layout Coilover Separated
Spring rate change at factory Possible Impossible
Damping force adjustment with wire - -
Helper spring
(Spring rate N/mm)
- -


Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3
Drivable range
High - Low *4
FRONT Ride height *1 641 678 ~ 621 678 ~ 621
Against stock -37 0 ~ -57 0 ~ -57
REAR Ride height *1 626 638 654 ~ 593 654 ~ 593
Against stock -67 -55 -39 ~ -100 -39 ~ -100
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information
Spring of Full Kit
  F R
Spring rate N/mm(kgf/mm) 39 ( 4 ) 31 ( 3.2 )
Free height (mm) 250 -
Spring type Straight Barrel type Special shape
Recommended range to change spring rate N/mm(kgf/mm) ±10 -
Specification of damper
  F R
Damping force (Rebound/Damping)N* 407 / 201 196 / 132
Default position of dial 15 15
Remaining damper stroke (Rebound/Damping)mm 56 / 60 79 / 90
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
  F R
Default Test Drivable limit
High *
Drivable limit
Low *
Default Test Drivable limit
High *
Drivable limit
Low *
Length of
case (mm)
290 327 275 360 378 337
Spring
Set length(mm)
214 214 219 - - - -
Length to ride hight
adjuster (mm)
20 57 0 50 60 74 22
Lever ratio 1.00 1.20(spg) , 0.92(dmp)
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.


Test vehicle information
  F R
Vehicle weight kg 853 583
Tire size (Air pressure) kPa 215 / 45 - 17 ( 250 ) 215 / 45 - 17 ( 230 )
Wheel size 7 JJ × 17 off 43 7 JJ × 17 off 43
Alignment
(Toe/Camber)
Test data in 0 mm / -1°36' in 5 mm / -1°36'
Standard value in 2 ± 2 mm / -0°15' ± 45' in 2 ± 3 mm / -1°30' ± 30'
* Test data at HKS.

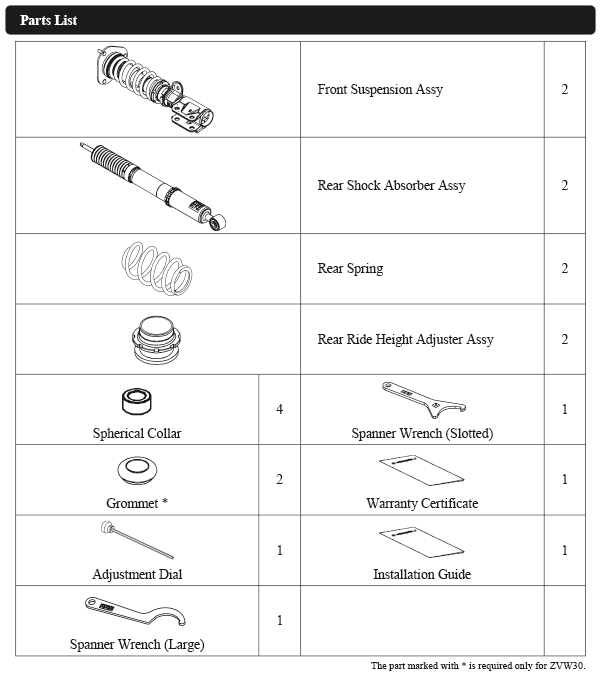

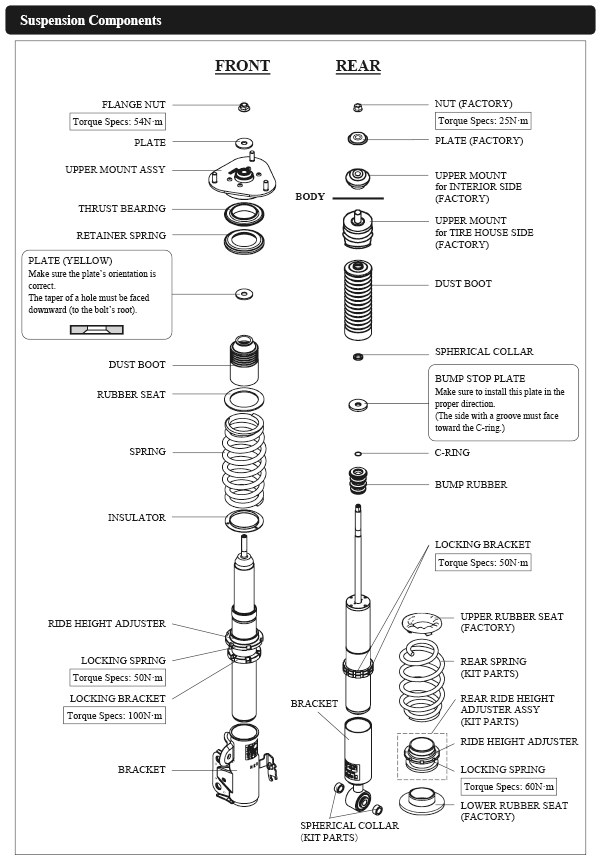

Parts List * It may be changed without prior notice.


Point
・The latest piston design improves the ride comfort and delivers supple ride feeling.
・Do not shorten the front case length less than the lower limit since excessive tension is applied to the ABS harness at full bump or steering resulting in the damage to the harness.
・Do not extend the front case length more than the upper limit since the stabilizer may come in contact with the lower arm.

●Required Modification
Slitting a part of rear interior may be required in order to install the rear adjustment cable.
The factory rear dust boots must be cut and modified in order to install this product.
