S-style L 2018 PRIUS α
Explanation of the product Application chart

PRIUS α ZVW41W
S-style L 2018 Code No. 80130-AT207




▲The above photo is an item for ZVW40.

Pre-load Valve System & M4P Deliver Ultimate Elasticity Ideal for "Low-stance Enthusiasts"



Application   Specification
Engine 2ZR-FXE(2ZR-3JM)
Model Year 11/05 -
Remarks

  FRONT REAR
Damping force adjustment 30 steps 30 steps
Base valve - -
Height adjustable lower bracket
Upper mount Rubber Stock
Inverted/Normal type Inverted Normal
Damper/Spring layout Coilover Separated
Spring rate change at factory Possible Impossible
Damping force adjustment with wire - -
Helper spring
(Spring rate N/mm)
- -


Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3
Drivable range
High - Low *4
FRONT Ride height *1 669 704 ~ 639 704 ~ 639
Against stock -36 -1 ~ -66 -1 ~ -66
REAR Ride height *1 677 689 ~ 651 689 ~ 651
Against stock -35 -23 ~ -61 -23 ~ -61
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information
Spring of Full Kit
  F R
Spring rate N/mm(kgf/mm) 39 ( 4 ) 34 ( 3.5 )
Free height (mm) 250 -
Spring type Straight Barrel type Special shape
Recommended range to change spring rate N/mm(kgf/mm) ±10 -
Specification of damper
  F R
Damping force (Rebound/Damping)N* 348 / 187 255 / 162
Default position of dial 15 15
Remaining damper stroke (Rebound/Damping)mm 66 / 60 76 / 93
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
  F R
Default Test Drivable limit
High *
Drivable limit
Low *
Default Test Drivable limit
High *
Drivable limit
Low *
Length of
case (mm)
300 323 271 325 344 312
Spring
Set length(mm)
221 209 222 - - - -
Length to ride hight
adjuster (mm)
30 65 0 44 54 22
Lever ratio 1.00 1.20(spg) , 0.92(dmp)
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.


Test vehicle information
  F R
Vehicle weight kg 0 0
Tire size (Air pressure) kPa 215 / 45 - 18 ( 250 ) 215 / 45 - 18 ( 240 )
Wheel size 7.5 JJ × 18 inset 48 7.5 JJ × 18 inset 48
Alignment
(Toe/Camber)
Test data IN 1 mm / -0°12' IN 3 mm / -0°39'
Standard value IN 2 ± 2 mm / -0°10'± 45' IN 2 ± 3 mm / -1°30'± 30'
* Test data at HKS.

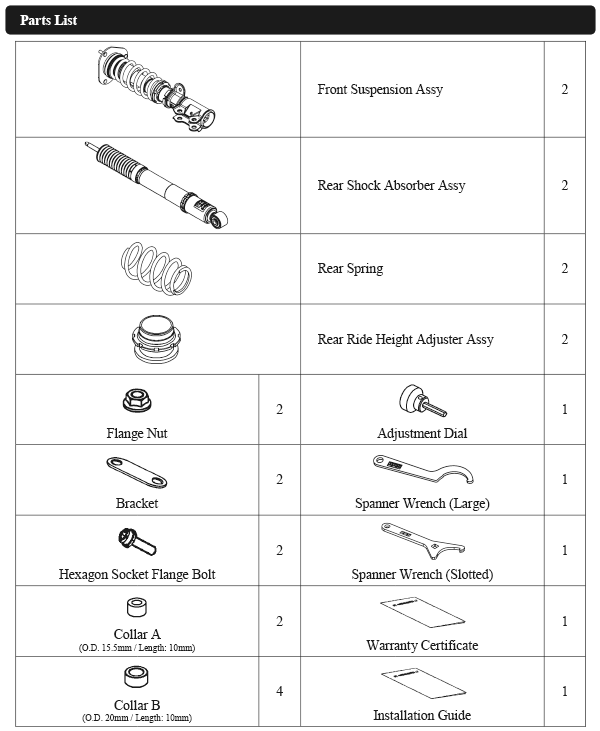

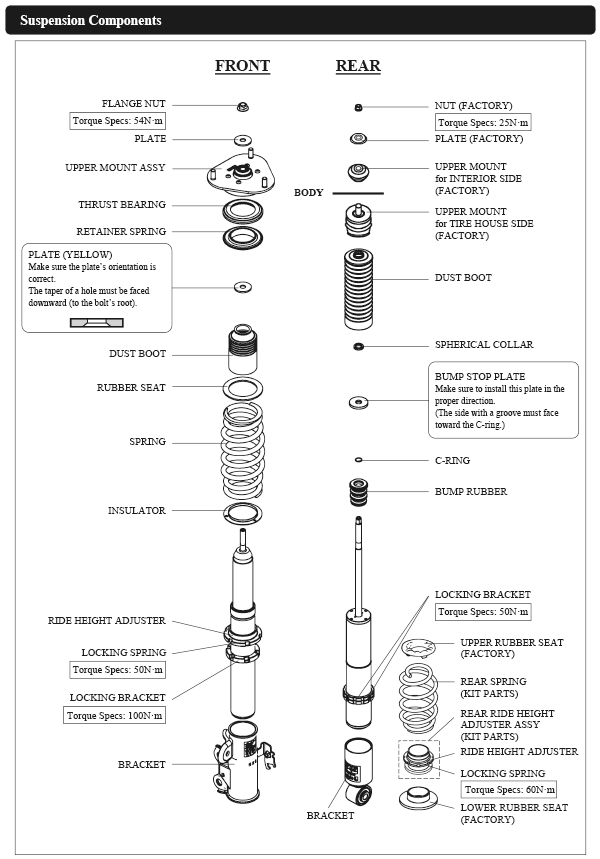

Parts List * It may be changed without prior notice.


Point
・High ride quality is focused on while floating feeling generated by the stock setting.
・Adjusting the damping force change the ride to be more sporty or comfortable.
・Do not shorten the front case length less than the lower limit since the stabilizer may come into contact with the member at full bump or steering resulting in the damage to the harness.
・Do not extend the front case length more than the upper limit since excessive tension may be applied to the ABS harness and cause damage to the harness.
・Recommended dial position for street driving is F15 / R14.
・The vehicle height was calculated number except the one at test. (The actual height may be different.)

●Required Modification
The factory rear dust boots must be cut and modified in order to install this product.
