S-Style X
ESTIMA
ESTIMA ACR50W

S-Style X

Code No. 80120-AT208





"Not just for lowering the vehicle height." "Super Low Stance Model" for reliable driving performance.

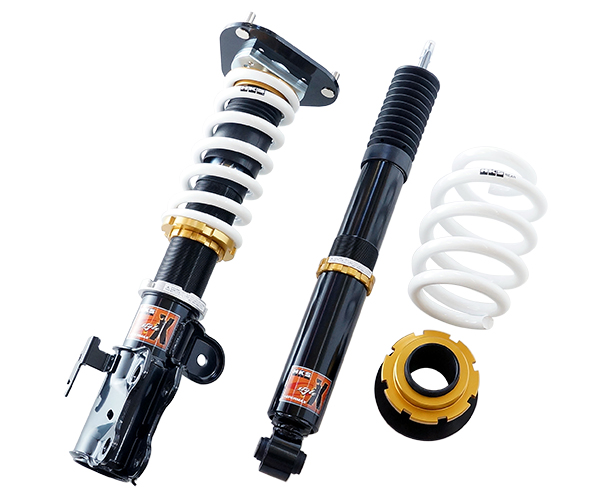

The model in the photo is GSR50W.





Application

Engine 2AZ-FE
Model Year 06/01 - 19/10
Remarks The vehicle height data is of GSR50W.

Specification

  FRONT REAR
Damping force adjustment 30 steps 30 steps
Base valve - -
Height adjustable lower bracket
Upper mount Spherical bearing Stock
Inverted/Normal type Inverted Normal
Damper/Spring layout Coilover Separated
Spring rate change at factory Possible Impossible
Damping force adjustment with wire - -
Helper spring
(Spring rate N/mm)
- -
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3
Drivable range
High - Low *4
FRONT Ride height *1 663 652 688 ~ 579 688 ~ 638
Against stock -53 -64 -28 ~ -105 -28 ~ -78
REAR Ride height *1 663 652 675 ~ 618 675 ~ 626
Against stock -66 -77 -54 ~ -111 -54 ~ -103

*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information

Spring of Full Kit

  F R
Spring rate N/mm(kgf/mm) 79 ( 8 ) 100 ( 10.2 )
Free height (mm) 200 -
Spring type Straight Special shape
Recommended range to change spring rate N/mm(kgf/mm) +20 ( 2 ) -

Specification of damper

  F R
Damping force (Rebound/Damping)N* 1163 / 472 1150 / 340
Default position of dial 20 20
Remaining damper stroke (Rebound/Damping)mm 46 / 41 46 / 60

* The value of the damping force is at piston speed of 0.1m/sec.

Setting data

  F R
Default Test Drivable limit
High *
Drivable limit
Low *
Default Test Drivable limit
High *
Drivable limit
Low *
Length of
case (mm)
318 308 328 305 367 355 395 355
Spring
Set length(mm)
190 190 177 200 - - - -
Length to ride hight
adjuster (mm)
48 38 71 25 45 38 61 21
Lever ratio 1.08 1.54(spg) , 0.89(dmp)

* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information

  F R
Vehicle weight kg 1062 (1080) 750 (730)
Tire size (Air pressure) kPa 225 / 45 - 19 ( 280 ) 225 / 45 - 19 ( 280 )
Wheel size 8 JJ × 19 off 45 8 JJ × 19 off 45
Alignment
(Toe/Camber)
Test data 0 mm / -1°18' in 5 mm / -1°18'
Standard value in 1 ± 2 mm / -0°15' ± 45' in 4 ± 2 mm / -1°20'

* Test data at HKS.

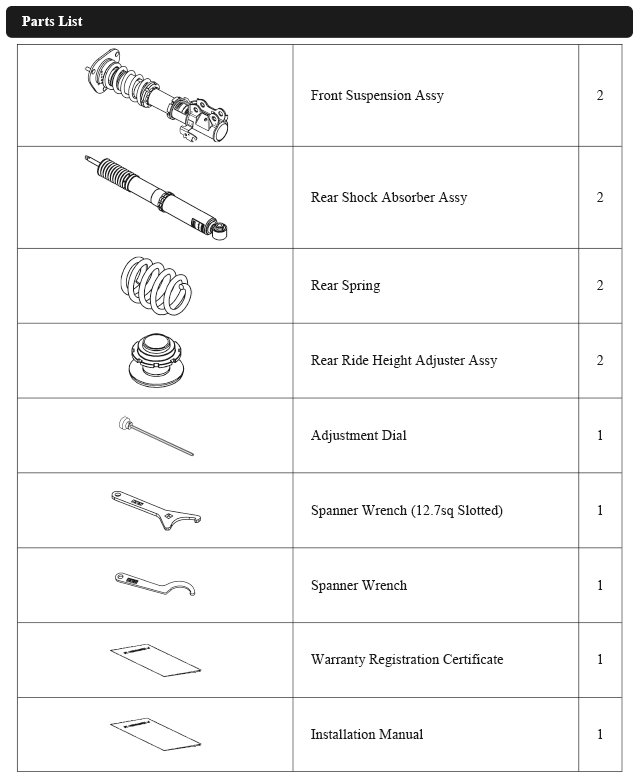

Parts List  * It may be changed without prior notice.




Point

・This is a serious low-down damper kit for serious dress-up users.
・We set it harder, compare to C-Wagon, to avoid for the aero to hit the road at a high rolling and bad drivability for a heavy vehicle with big wheels.
・Can have more option setting because of the front upper mount adjustable camber adoption.(Camber setting at the test was step 2.)
・The front tire and inner fender interfere with each other at the testing.(tire/wheel: 225/45-19、8J×19 off 45)
・If you make the front case length shorter than the minimum limit, the stabilizer and the frame will interfere at a full stoke or a full steering.(If you change the front stabilizer to the longer one, you can make the front case even shorter.)
・If you make the rear case length shorter than the minimum limit, the handbrake wire and the body will interfere.
・The data other than testing is calculated numbers.(It's not guaranteeing the actual number of vehicle height)

●Modification for installation
Need to cut the stock rear dust boot.
