Code No. 80300-AN207





Going beyond just ride comfort or handling performance, a new standard of "Driving Comfort" aims for comfort in ride but also in the peace of mind generated by handling performance and drivability . An uncompromising balance which delivers on all the demands of street driving.





The model in the photo is HE12.





Application

Engine HR12DE(HR12-EM57)
Model Year 16/11 - 21/08
Remarks Testing confirmed on "e-power nismo" mode.

Specification

  FRONT REAR
Damping force adjustment 30 steps 30 steps
Base valve - -
Height adjustable lower bracket
Upper mount Stock Stock
Inverted/Normal type Inverted Normal
Damper/Spring layout Coilover Separated
Spring rate change at factory Possible Impossible
Damping force adjustment with wire - -
Helper spring
(Spring rate N/mm)
- -
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3
Drivable range
High - Low *4
FRONT Ride height *1 639 672 ~ -604 672 ~ -604
Against stock -33 0 ~ -68 0 ~ -68
REAR Ride height *1 635 660 ~ 587 660 ~ 587
Against stock -25 0 ~ -73 0 ~ -73

*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information

Spring of Full Kit

  F R
Spring rate N/mm(kgf/mm) 39 ( 4.0 ) 30 ( 3.1 )
Free height (mm) 250 -
Spring type Straight Barrel type Special shape
Recommended range to change spring rate N/mm(kgf/mm) ±9.8 (1.0) -

Specification of damper

  F R
Damping force (Rebound/Damping)N* 284 / 157 186 / 127
Default position of dial 15 15
Remaining damper stroke (Rebound/Damping)mm 57 / 49 65 / 104

* The value of the damping force is at piston speed of 0.1m/sec.

Setting data

  F R
Default Test Drivable limit
High *
Drivable limit
Low *
Default Test Drivable limit
High *
Drivable limit
Low *
Length of
case (mm)
292 312 266 358 394 344
Spring
Set length(mm)
221 208 230 - - - -
Length to ride hight
adjuster (mm)
36 69 1 60 80 21
Lever ratio 1.00 1.24(spg) , 0.93(dmp)

* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information

  F R
Vehicle weight kg 803 (800) 455 (450)
Tire size (Air pressure) kPa 195 / 55 - 16 ( 230 ) 195 / 55 - 16 ( 210 )
Wheel size 6.5 JJ × 16 inset 50 6.5 JJ × 16 inset 50
Alignment
(Toe/Camber)
Test data in 2 mm / -0°48' in 3.5 mm / -1°18'
Standard value in 3 mm out 1 mm / -0°15' ± 45' in 7 mm out 1 mm / -1°25' ± 30'

* Test data at HKS.

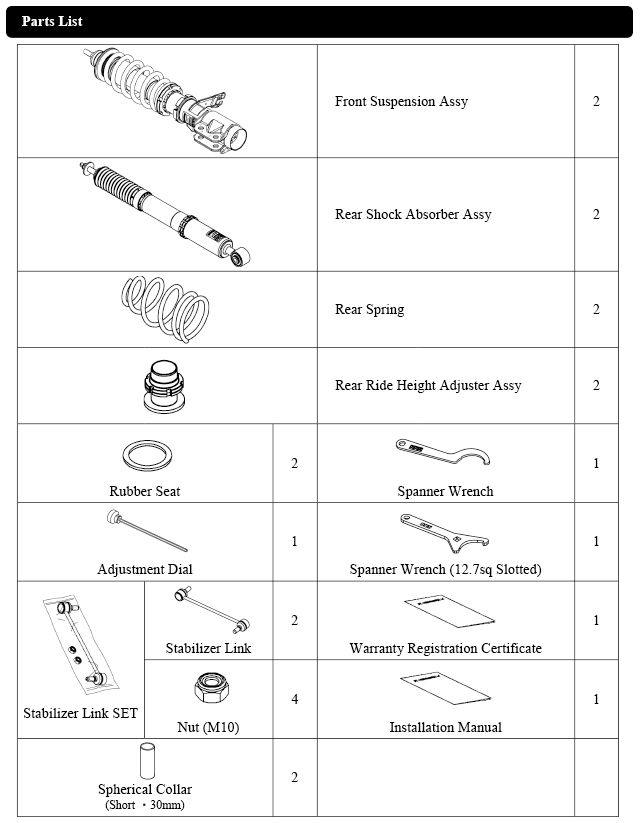

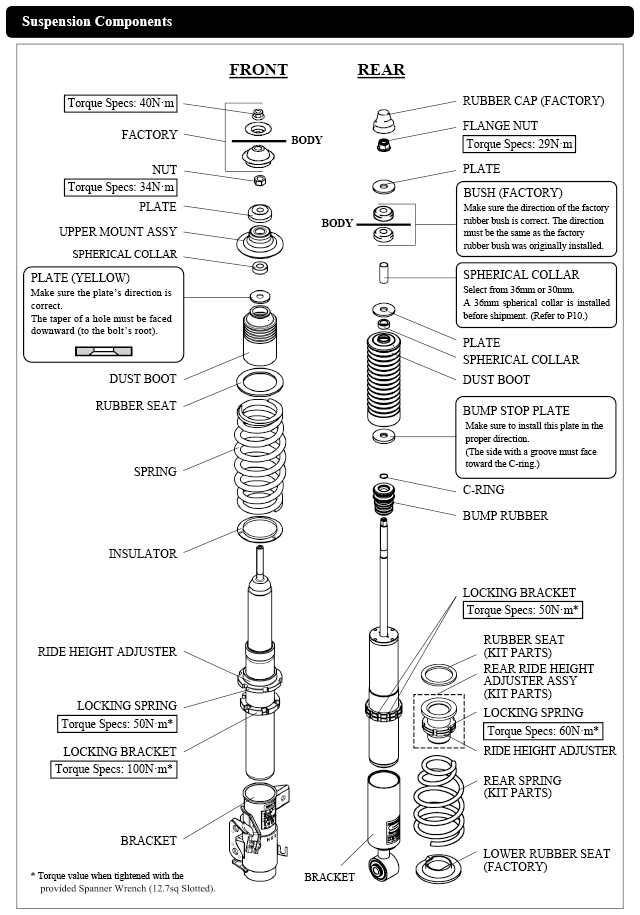

Parts List  * It may be changed without prior notice.




Point
