Code No. 80300-AF021C

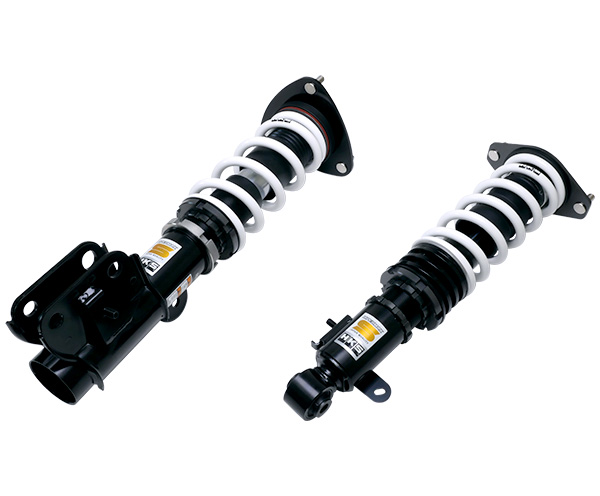

HIPERMAX S, which has evolved damping force characteristics, durability, and aesthetics, offers the best "Driving Comfort" in the history of HKS suspension.
- The suspension is set to move flexibly while absorbing detailed impacts from the road surface. It has improved the ride comfort on the street by improving the followability on the road surface and reducing unnecessary movements by generating a solid damping force against road swells and movements during cornering.
- It can easily feel the vehicle's behavior thanks to the positive load transfer and can be enjoyed safe driving even in a limit range by suppressing sudden movements.
- You can fully experience the high-rigid SUBARU global platform and full inner frame structure.
- It has high durability of 60,000 km for three years by reviewing the internal parts.
Application
| Engine | FA24(TURBO) |
|---|---|
| Model Year | 21/11 - |
| Remarks |
Specification
| FRONT | REAR | |
|---|---|---|
| Damping force adjustment | 30 steps | 30 steps |
| Base valve | - | - |
| Height adjustable lower bracket | 〇 | 〇 |
| Upper mount | Rubber | Rubber |
| Inverted/Normal type | Inverted | Normal |
| Damper/Spring layout | Coilover | Coilover |
| Spring rate change at factory | Impossible | Impossible |
| Damping force adjustment with wire | - | - |
| Helper spring (Spring rate N/mm) | - | 〇 (19.8) |
| Factory *2 | Test data | Adjustable range High - Low *3 |
Drivable range High - Low *4 |
||
|---|---|---|---|---|---|
| FRONT | Ride height *1 | 654 | ← | 683 ～ 636 | 683 ～ 640 |
| Against stock | -29 | ← | 0 ～ -47 | 0 ～ -43 | |
| REAR | Ride height *1 | 663 | ← | 692 ～ 634 | 692 ～ 640 |
| Against stock | -29 | ← | 0 ～ -58 | 0 ～ -52 | |
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.
Kit information
Spring of Full Kit
| F | R | |
|---|---|---|
| Spring rate N/mm(kgf/mm) | 69 ( 7.0 ) | 59 ( 6.0 ) |
| Free height (mm) | 200 | 200 |
| Spring type | Straight Barrel type | Straight |
| Recommended range to change spring rate N/mm(kgf/mm) | - | - |
Specification of damper
| F | R | |
|---|---|---|
| Damping force (Rebound/Damping)N* | 333 / 382 | 294 / 412 |
| Default position of dial | 15 | 15 |
| Remaining damper stroke (Rebound/Damping)mm | 53 / 53 | 67 / 49 |
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
| F | R | |||||||
|---|---|---|---|---|---|---|---|---|
| Default | Test | Drivable limit High * |
Drivable limit Low * |
Default | Test | Drivable limit High * |
Drivable limit Low * |
|
| Length of case (mm) |
294 | ← | 323 | 285 | 260 | ← | 276 | 246 |
| Spring Set length(mm) |
197 | ← | 197 | 202 | 241 | ← | 234 | 245 |
| Length to ride hight adjuster (mm) |
14 | ← | 43 | 0 | 22 | ← | 45 | 4 |
| Lever ratio | 1.00 | 1.30 | ||||||
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.
Test vehicle information
| F | R | ||
|---|---|---|---|
| Vehicle weight kg | 982 | 670 | |
| Tire size (Air pressure) kPa | 245 / 40 - 18 ( 260 ) | 245 / 40 - 18 ( 250 ) | |
| Wheel size | 8.5 JJ × 18 inset 55 | 8.5 JJ × 18 inset 55 | |
| Alignment (Toe/Camber) |
Test data | in 0 mm / -1°28' | in 0 mm / -1°38' |
| Standard value | 0 ± 2 mm / -0°40' ± 0°30' | 0 ± 2 mm / - | |
* Test data at HKS.

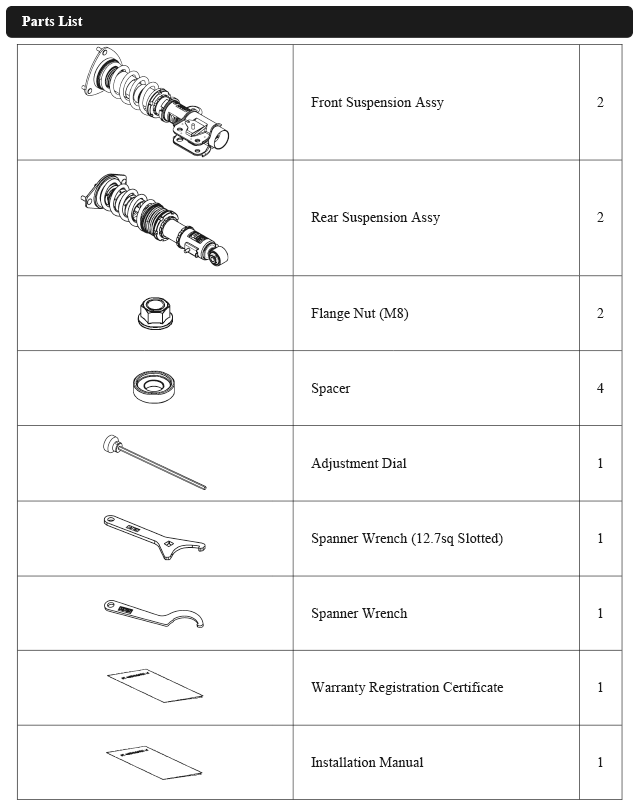

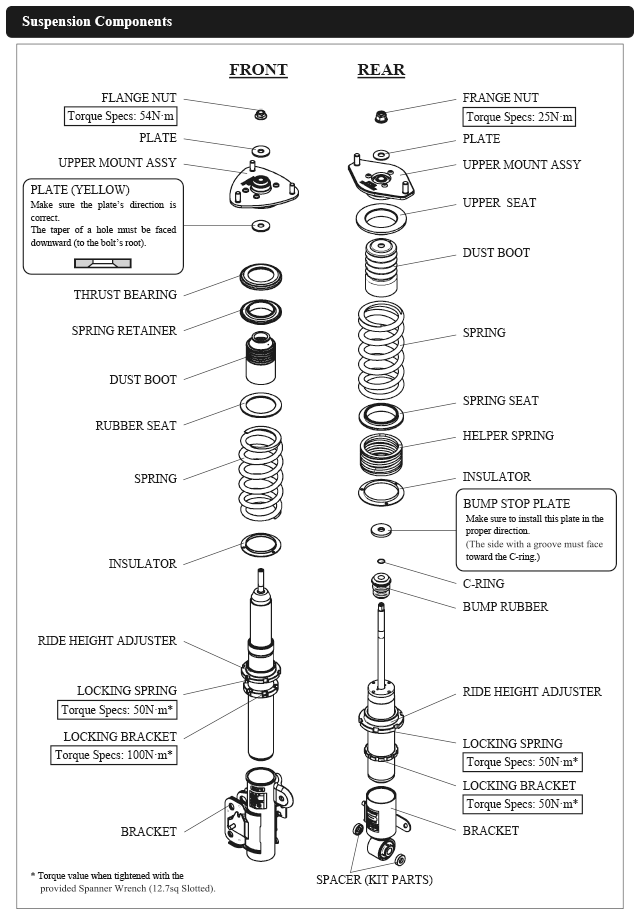

Parts List * It may be changed without prior notice.
Point
・ Note that the suspension won't be able to stroke if the shock body length is 285 mm or less. The lower limit value should be the value with removing the rubber seat and insulator at the front and the value with removing 1 piece of the bump rubber (5mm) at the rear.
・ The alignment rear camber reference value is not adjusted, it is not described in the maintenance manual.
・ MAX S series for VNH is launched. The stock electronically controlled suspension has the challenge of easy to give a soft feeling in comfort mode as well as a rough feeling on the road surface in sport mode. However, the suspension is set to move flexibly while absorbing detailed impacts from the road surface. It has improved the ride comfort on the street by improving the followability on the road surface and reducing unnecessary movements by generating a solid damping force against road swells and movements during cornering.
・ It can easily feel the vehicle's behavior thanks to the positive load transfer and can be enjoyed safe driving even in a limit range by suppressing sudden movements.
・ Optimizing the bump rubber at the front and rear makes it possible to move the suspension lightly when the passengers are 1 to 2 or slowly when the passengers are 3 to 5 or the luggage is loaded in the rear, for example.
・ You can fully experience the high-rigid SUBARU global platform and full inner frame structure. It has high durability of 60,000 km for three years by reviewing the internal parts.
