S
RAV4
RAV4 MXAA54

S

Code No. 80300-AT028





HIPERMAX S, which has evolved damping force characteristics, durability, and aesthetics, offers the best "Driving Comfort" in the history of HKS suspension.





  • A suspension kit for maneuvering the popular SUV stylish is available now. We pursued driving comfort while balancing ride comfort and the handling required when running.
  • Your favorite riding taste can be selected by adjusting the damper with the damping force adjustment function.
  • It can adjust the vehicle height not only by lowering but also by lifting the vehicle. If you only have this suspension, use it on a snowy or off-road or enjoy a lifted style coordinated with mud tires.

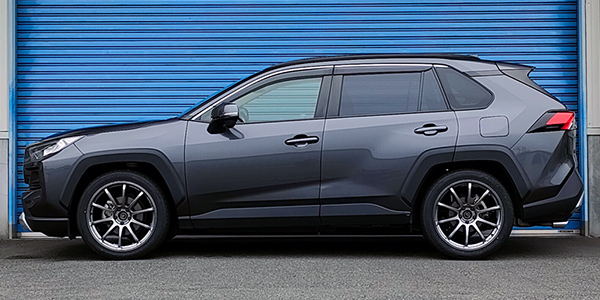

The model in the photo is MXAA54.





Application

Engine M20A-FKS
Model Year 19/04 -
Remarks

Specification

  FRONT REAR
Damping force adjustment 30 steps 30 steps
Base valve - -
Height adjustable lower bracket
Upper mount Rubber Rubber
Inverted/Normal type Inverted Normal
Damper/Spring layout Coilover Separated
Spring rate change at factory Possible Possible
Damping force adjustment with wire - -
Helper spring
(Spring rate N/mm)
- 〇 (19.8)
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3
Drivable range
High - Low *4
FRONT Ride height *1 770 829 ~ 736 829 ~ 736
Against stock -34 25 ~ -68 25 ~ -68
REAR Ride height *1 778 833 ~ 743 833 ~ 743
Against stock -37 18 ~ -72 18 ~ -72

*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information

Spring of Full Kit

  F R
Spring rate N/mm(kgf/mm) 49 ( 5.0 ) 69 ( 7.0 )
Free height (mm) 220 220
Spring type Straight Barrel type Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) +10 ( 1 ) ±10 ( 1 )

Specification of damper

  F R
Damping force (Rebound/Damping)N* 432 / 304 397 / 333
Default position of dial 15 15
Remaining damper stroke (Rebound/Damping)mm 63 / 50 61 / 65

* The value of the damping force is at piston speed of 0.1m/sec.

Setting data

  F R
Default Test Drivable limit
High *
Drivable limit
Low *
Default Test Drivable limit
High *
Drivable limit
Low *
Length of
case (mm)
372 427 348 298 341 271
Spring
Set length(mm)
206 202 216 - - - -
Length to ride hight
adjuster (mm)
55 114 21 44 86 17
Lever ratio 1.00 1.30(spg) , 1.27(dmp)

* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information

  F R
Vehicle weight kg 935 (940) 717 (690)
Tire size (Air pressure) kPa 245 / 45 - 20 ( 230 ) 245 / 45 - 20 ( 230 )
Wheel size 8.5 JJ × 20 inset 42 8.5 JJ × 20 inset 42
Alignment
(Toe/Camber)
Test data in 1 mm / -1°06' in 3 mm / -1°32'
Standard value in 2.5 ± 2 mm / -0°20' ± 0°45' in 2.6 ± 2 mm / -1°05' ± 0°45'

* Test data at HKS.


Parts List   * It may be changed without prior notice.




Point

A suspension kit for maneuvering the popular SUV stylish is available now.
We pursued driving comfort while balancing ride comfort and the handling required when running.
Your favorite riding taste can be selected by adjusting the damper with the damping force adjustment function.
Since the universal spring can be used both front and rear, thus the spring rate change can be possible.
It can adjust the vehicle height not only by lowering but also by lifting the vehicle.
If you only have this suspension, use it on a snowy or off-road or enjoy a lifted style coordinated with mud tires.
