Code No. 80300-AT031

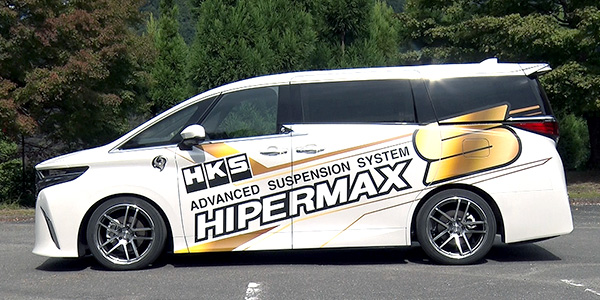

▲The model in the photo is AGH40W.
Application
Engine | 2AR-FE |
---|---|
Model Year | 23/06 - |
Remarks |
Specification
FRONT | REAR | |
---|---|---|
Damping force adjustment | 30 steps | 30 steps |
Base valve | - | - |
Height adjustable lower bracket | 〇 | 〇 |
Upper mount | Rubber | Rubber |
Inverted/Normal type | Inverted | Normal |
Damper/Spring layout | Coilover | Separated |
Spring rate change at factory | Possible | Impossible |
Damping force adjustment with wire | - | - |
Helper spring (Spring rate N/mm) | - | - |
Factory *2 | Test data | Adjustable range High - Low *3 |
Drivable range High - Low *4 |
||
---|---|---|---|---|---|
FRONT | Ride height *1 | 715 | ← | 761 ~ 692 | 761 ~ 692 |
Against stock | -46 | ← | 0 ~ -69 | 0 ~ -69 | |
REAR | Ride height *1 | 731 | ← | 746 ~ 703 | 746 ~ 703 |
Against stock | -24 | ← | -9 ~ -52 | -9 ~ -52 |
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.
Kit information
Spring of Full Kit
F | R | |
---|---|---|
Spring rate N/mm(kgf/mm) | 59 ( 6.0 ) | 88 ( 9.0 ) |
Free height (mm) | 250 | - |
Spring type | Special shape | Special shape |
Recommended range to change spring rate N/mm(kgf/mm) | +10 ( 1 ) | - |
Specification of damper
F | R | |
---|---|---|
Damping force (Rebound/Damping)N* | 535 / 461 | 682 / 579 |
Default position of dial | 15 | 15 |
Remaining damper stroke (Rebound/Damping)mm | 62 / 64 | 60 / 70 |
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
F | R | |||||||
---|---|---|---|---|---|---|---|---|
Default | Test | Drivable limit High * |
Drivable limit Low * |
Default | Test | Drivable limit High * |
Drivable limit Low * |
|
Length of case (mm) |
356 | ← | 399 | 350 | 275 | ← | 280 | 274 |
Spring Set length(mm) |
236 | ← | 234 | 252 | - | - | - | - |
Length to ride hight adjuster (mm) |
22 | ← | 67 | 0 | 37 | ← | 47 | 18 |
Lever ratio | 1.03 | 1.48(spg) , 1.53(dmp) |
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.
Test vehicle information
F | R | ||
---|---|---|---|
Vehicle weight kg | - (1140) | - (960) | |
Tire size (Air pressure) kPa | 245 / 40 - 20 ( 240 ) | 245 / 40 - 20 ( 240 ) | |
Wheel size | 9.5 JJ × 20 inset 47 | 9.5 JJ × 20 inset 45 | |
Alignment (Toe/Camber) |
Test data | in 3.9 mm / -1°9' | in 3.3 mm / -1°19' |
Standard value | in 2.3 ± 2 mm / -0°23' ± 0°45' | in 2.7 ± 2 mm / -0°51' ± 0°45' |
* Test data at HKS.

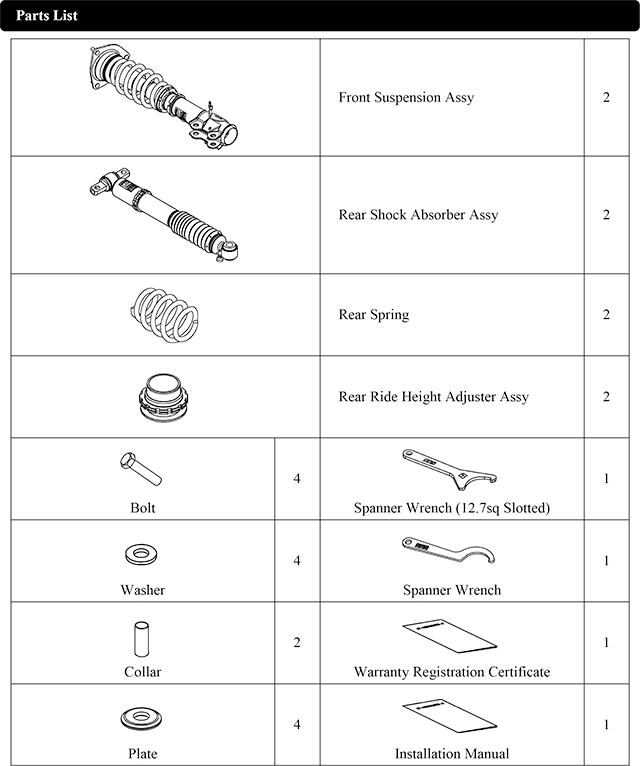

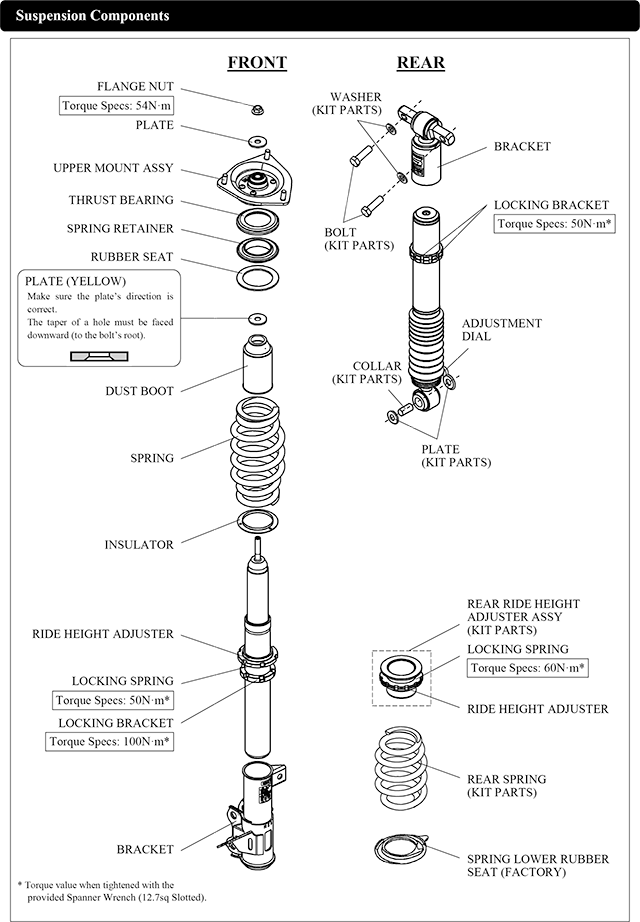

Parts List * It may be changed without prior notice.

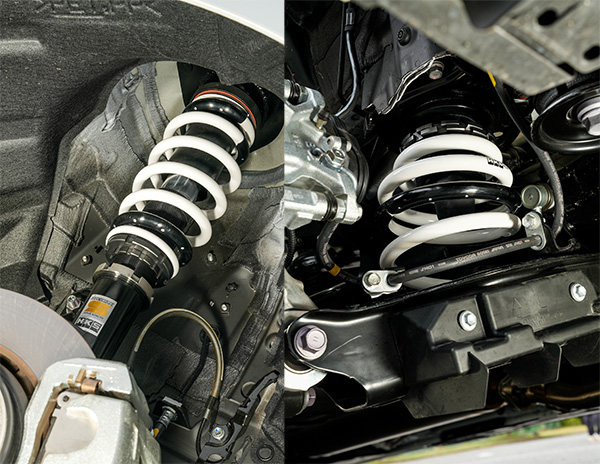

Point
The all-new Toyota Alphard and Vellfire (40 series) feature improved factory suspension tuning compared to prior series. Our product was developed to keep the features, and also lowered the vehicle height to transform it into an impressively stylish appeal.
The car body strength and weight are completely different in each model and grade, but we also did fine-tuning by making many calculations and conducting long-term test runs on various roads to make the spring rate, damping, bump rubber, and gas pressure perfectly suited for the car to provide the best ride comfort.
(This product is exclusively developed for the Toyota Alphard and Vellfire HYBRID System 2WD vehicles. Not compatible with for 2WD vehicles equipped with Side lift-up tilt seat.)
As a result, we successfully improved the driving stability during high-speed driving and kept the riding comfort the same as with the factory suspension. We also further decreased the unpleasant micro-vibrations.
It allows you to feel comfortable in all seats, even when the vehicle is fully occupied with passengers.
