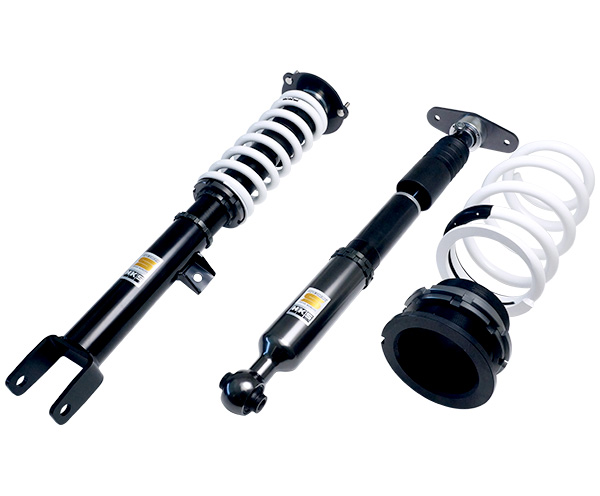

Going beyond just ride comfort or handling performance, a new standard of "Driving Comfort"
aims for comfort in ride but also in the peace of mind generated by handling performance and drivability .
An uncompromising balance which delivers on all the demands of street driving.

  • The appropriate lowdown enhances the futuristic styling and creates a more stylish look.
  • In pursuit of ride comfort and a moderately firm driving feel. A dial adjustment accommodates from high-paced grand touring to leisurely travel.
  • The unique front suspension with a movable lower arm. It adopts a pillow upper mount that can absorb vibrations to pursue smooth motion.
  • The rear upper mount is also specially designed and included to ensure ease of installation and ride quality. The damping force adjustment is located above the damper and can be adjusted by slightly jacking up the damper.

Application

Engine 3D5
Model Year 19/09 - 23/08
Remarks Not compatible with 4WD trims.

Specification

  FRONT REAR
Damping force adjustment 30 steps 30 steps
Base valve - -
Height adjustable lower bracket
Upper mount Spherical bearing Rubber
Inverted/Normal type Normal Normal
Damper/Spring layout Coilover Separated
Spring rate change at factory Possible Impossible
Damping force adjustment with wire - -
Helper spring
(Spring rate N/mm)
- -
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3
Drivable range
High - Low *4
FRONT Ride height *1 694 688 723 ~ 647 723 ~ 647
Against stock -28 -34 1 ~ -75 1 ~ -75
REAR Ride height *1 688 682 712 ~ 639 712 ~ 639
Against stock -24 -30 0 ~ -73 0 ~ -73

*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information

Spring of Full Kit

  F R
Spring rate N/mm(kgf/mm) 78 ( 8.0 ) 88 ( 9.0 )
Free height (mm) 250 -
Spring type Straight Special shape
Recommended range to change spring rate N/mm(kgf/mm) +20 ( 2 ) -

Specification of damper

  F R
Damping force (Rebound/Damping)N* 687 / 382 343 / 451
Default position of dial 15 15
Remaining damper stroke (Rebound/Damping)mm 40 / 56 59 / 88

* The value of the damping force is at piston speed of 0.1m/sec.

Setting data

  F R
Default Test Drivable limit
High *
Drivable limit
Low *
Default Test Drivable limit
High *
Drivable limit
Low *
Length of
case (mm)
472 468 492 458 379 374 401 362
Spring
Set length(mm)
235 235 253 - - - -
Length to ride hight
adjuster (mm)
42 38 62 10 58 54 74 25
Lever ratio 1.46 1.49(spg) , 1.11(dmp)

* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information

  F R
Vehicle weight kg 741 (770) 890 (860)
Tire size (Air pressure) kPa 235 / 40 - 19 ( 290 ) 235 / 40 - 19 ( 290 )
Wheel size 8.5 JJ × 19 inset 40 8.5 JJ × 19 inset 40
Alignment
(Toe/Camber)
Test data 0 mm / -1°15' in 3 mm / -1°40'
Standard value out 0.6 ± 1.8 mm / -0°50' ± 0°45' in 2.4 ± 1.8 mm / -1°00' ± 1°00'

* Test data at HKS.

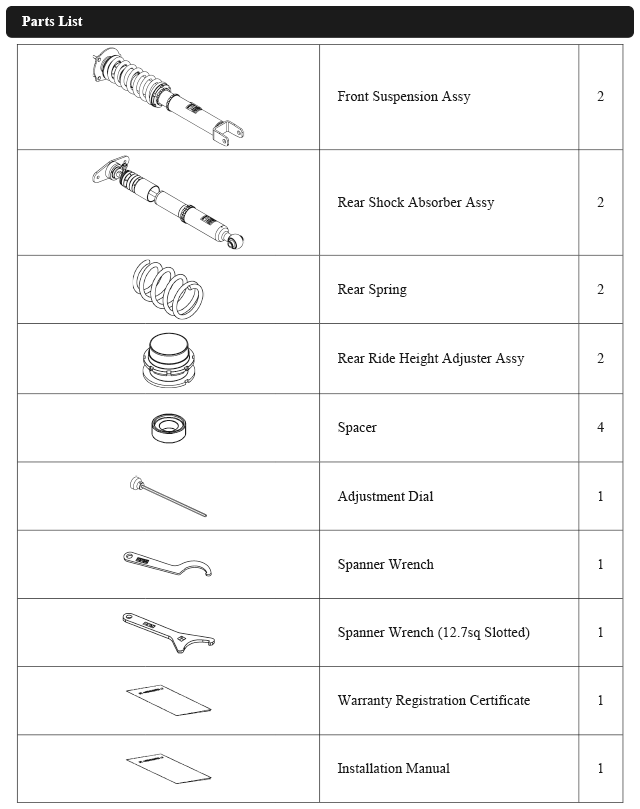

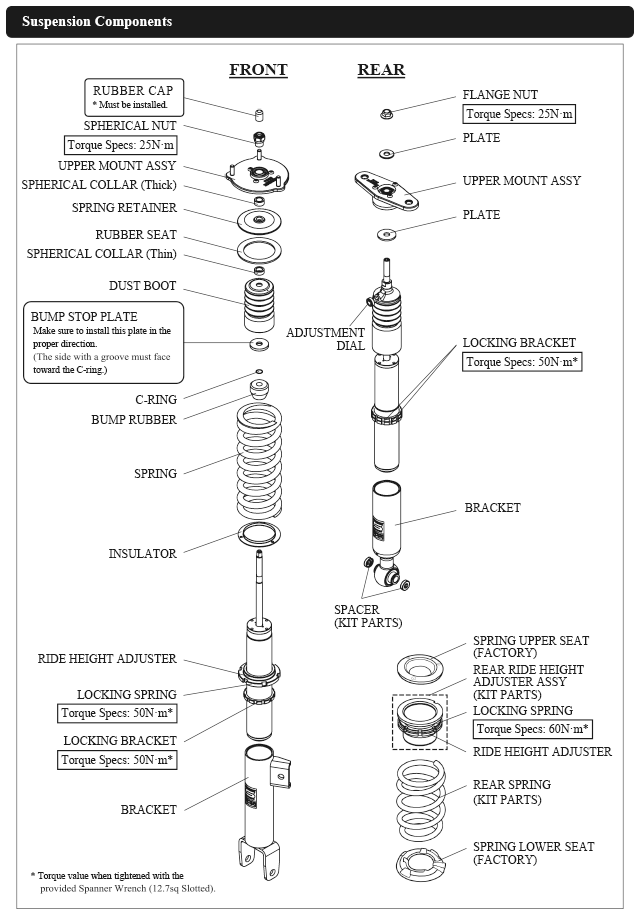

Kit Includes * It may be changed without prior notice.
