S
VELLFIRE
VELLFIRE TAHA40W

S

Code No. 80300-AT033







  • HIPERMAX S maintains the excellent driving performance of the stock suspension while improving driving stability in pursuit of driving comfort.
  • The reason we were able to achieve ride comfort superior to the stock version with the lowered suspension is due to the suspension technology that HKS has cultivated over many years and the use of high-quality in-house parts.
  • Due to differences in body and vehicle weight, there are differences in the ideal suspension specifications, so this is a "specification for Vellfire 2WD trims".
  • It possesses the versatility to cater to daily commuting, weekend driving, and sports driving.
  • It comes with a 3-year warranty and can be overhauled. We also provide entire after-sales support. You can use the product for a long time.





The model in the photo is AGH40W.

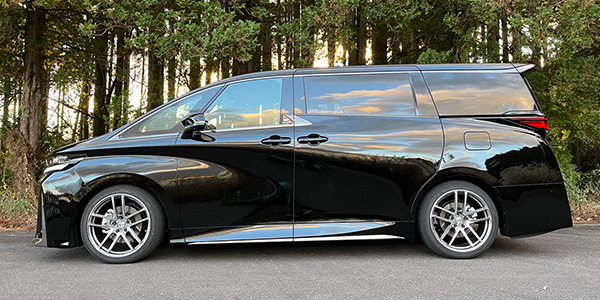

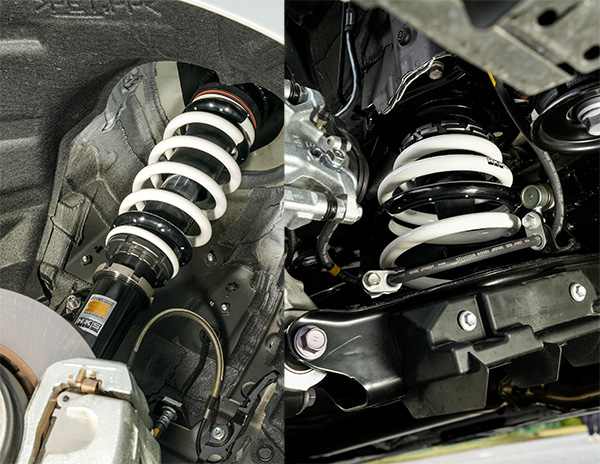

The model in the photo is TAHA40W.





Application

Engine T24A-FTS
Model Year 23/06 -
Remarks

Specification

  FRONT REAR
Damping force adjustment 30 steps 30 steps
Base valve - -
Height adjustable lower bracket
Upper mount Rubber Rubber
Inverted/Normal type Inverted Normal
Damper/Spring layout Coilover Separated
Spring rate change at factory Possible Impossible
Damping force adjustment with wire - -
Helper spring
(Spring rate N/mm)
- -
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3
Drivable range
High - Low *4
FRONT Ride height *1 716 755 ~ 696 755 ~ 696
Against stock -39 0 ~ -59 0 ~ -59
REAR Ride height *1 732 754 ~ 703 754 ~ 703
Against stock -22 0 ~ -51 0 ~ -51

※1. 路面からフェンダーアーチまでの高さ。

*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information

Spring of Full Kit

  F R
Spring rate N/mm(kgf/mm) 69 ( 7.0 ) 98 ( 10.0 )
Free height (mm) - -
Spring type Special shape Special shape
Recommended range to change spring rate N/mm(kgf/mm) -10 ( 1 ) -

Specification of damper

  F R
Damping force (Rebound/Damping)N* 535 / 461 682 / 579
Default position of dial 15 15
Remaining damper stroke (Rebound/Damping)mm 55 / 71 59 / 71

* The value of the damping force is at piston speed of 0.1m/sec.

Setting data

  F R
Default Test Drivable limit
High *
Drivable limit
Low *
Default Test Drivable limit
High *
Drivable limit
Low *
Length of
case (mm)
356 391 350 275 280 274
Spring
Set length(mm)
239 236 252 - - - -
Length to ride hight
adjuster (mm)
19 57 0 35 50 18
Lever ratio 1.03 1.48(spg) , 1.53(dmp)

* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information

  F R
Vehicle weight kg 1179 (1200) 950 (980)
Tire size (Air pressure) kPa 245 / 40 - 20 ( 260 ) 245 / 40 - 20 ( 260 )
Wheel size 9.5 JJ × 20 inset 47 9.5 JJ × 20 inset 45
Alignment
(Toe/Camber)
Test data in 1.4 mm / -1°6' in 4 mm / -1°27'
Standard value in 2.1 ± 2 mm / -0°24' ± 0°45' in 2.8 ± 2 mm / -0°53' ± 0°45'

* Test data at HKS.

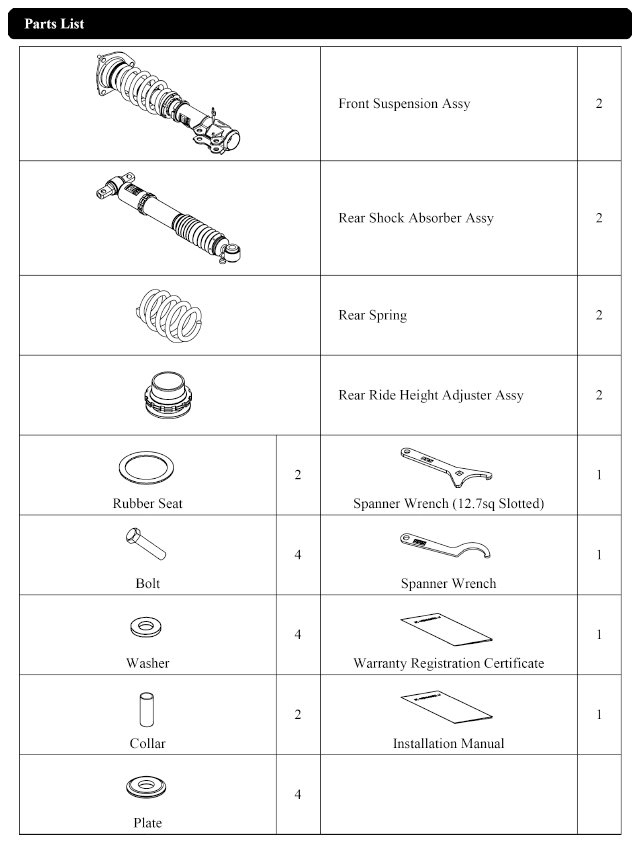

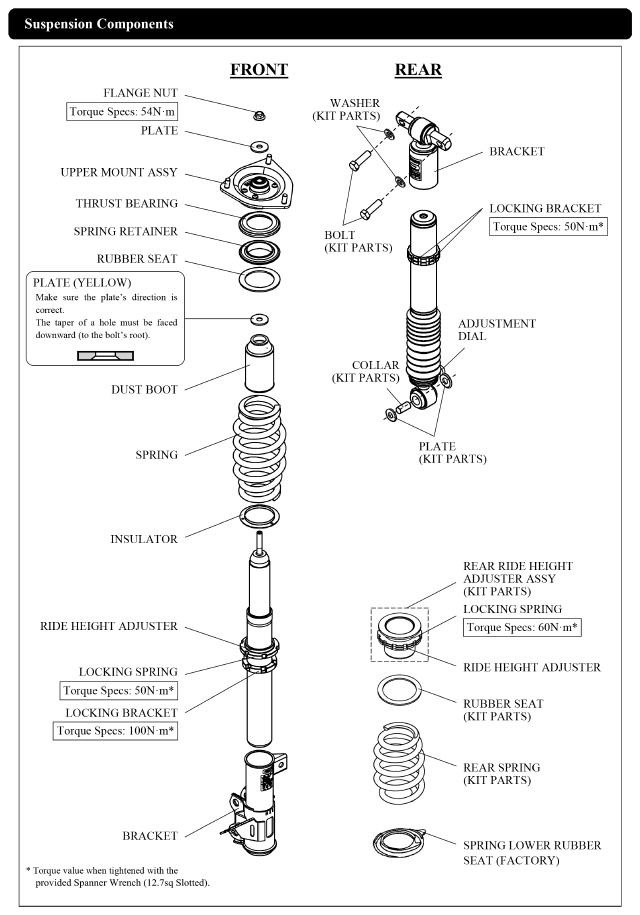

Parts List   * It may be changed without prior notice.
