S
FAIRLADY Z (Z)
FAIRLADY Z (Z) Z32

S

Code No. 80300-AN019











Application

Engine VG30DETT
Model Year 89/07 - 00/09
Remarks

Specification

  FRONT REAR
Damping force adjustment 30 steps 30 steps
Base valve - -
Height adjustable lower bracket
Upper mount Rubber Rubber
Inverted/Normal type Normal Normal
Damper/Spring layout Coilover Coilover
Spring rate change at factory Possible Possible
Damping force adjustment with wire -
Helper spring
(Spring rate N/mm)
〇 (41.4) 〇 (19.8)
Ride Height mm
  Factory *2 Test data Adjustable range
High - Low *3
Drivable range
High - Low *4
FRONT Ride height *1 654 629 669 ~ 605 669 ~ 605
Against stock -15 -40 0 ~ -64 0 ~ -64
REAR Ride height *1 659 634 675 ~ 593 675 ~ 593
Against stock -16 -41 0 ~ -82 0 ~ -82

*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.


Kit information

Spring of Full Kit

  F R
Spring rate N/mm(kgf/mm) 78 ( 8.0 ) 59 ( 6.0 )
Free height (mm) 200 220
Spring type Straight Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) +20 ( 2 ) +20 ( 2 )

Specification of damper

  F R
Damping force (Rebound/Damping)N* 1491 / 432 637 / 324
Default position of dial 15 15
Remaining damper stroke (Rebound/Damping)mm 47 / 52 66 / 70

* The value of the damping force is at piston speed of 0.1m/sec.

Setting data

  F R
Default Test Drivable limit
High *
Drivable limit
Low *
Default Test Drivable limit
High *
Drivable limit
Low *
Length of
case (mm)
283 260 297 260 414 389 430 371
Spring
Set length(mm)
218 218 240 266 266 289
Length to ride hight
adjuster (mm)
67 44 81 22 66 41 82 0
Lever ratio 1.10 1.00

* Refer to the above explanation *3 of ride height information for drivable high and low limitations.



Test vehicle information

  F R
Vehicle weight kg - (840) - (740)
Tire size (Air pressure) kPa 225 / 50 - 16 ( 230 ) 225 / 50 - 16 ( 250 )
Wheel size 7.5 JJ × 16 inset 45 7.5 JJ × 16 inset 45
Alignment
(Toe/Camber)
Test data out 1 mm / -1°42' in 3 mm / -2°18'
Standard value in 1 ± 1 mm / 0°50' ± 0°45' in 2 ± 2 mm / -1°05' ± 0°30'

* Test data at HKS.

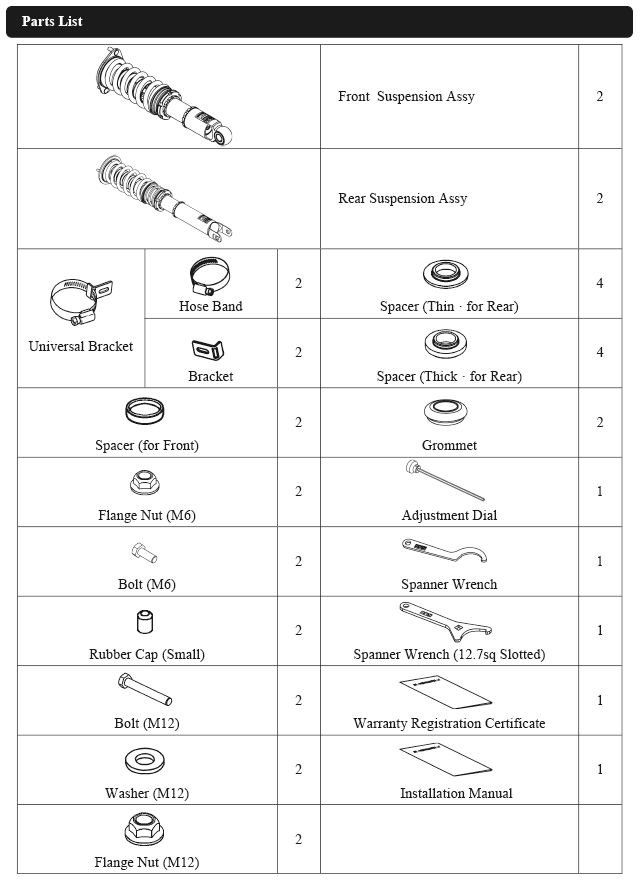

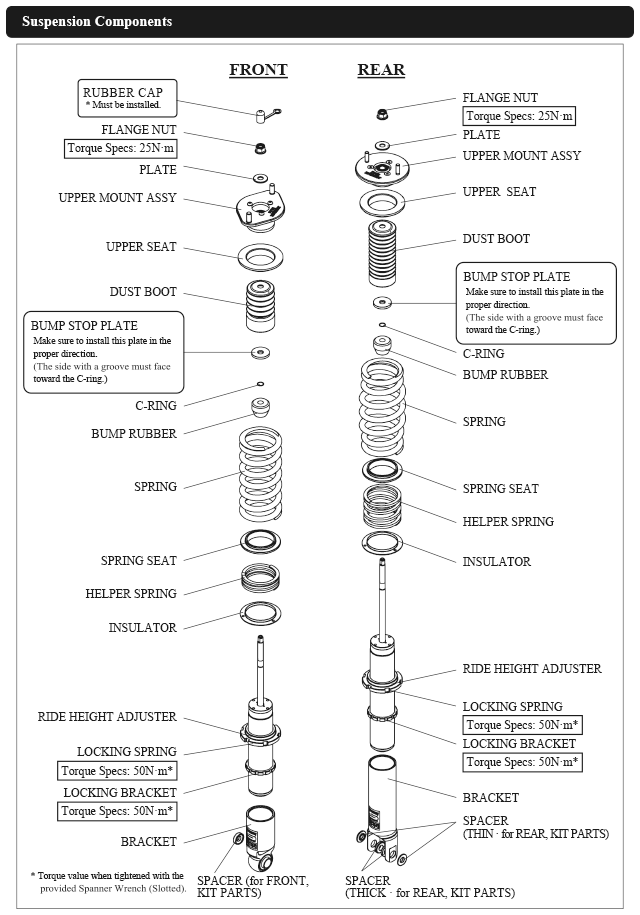

Parts List   * It may be changed without prior notice.




Point
